CMXGWAS020788-00 - Craftsman 2,800 PSI Pressure Washer Main Unit Parts Diagram

2,800 PSI Pressure Washer

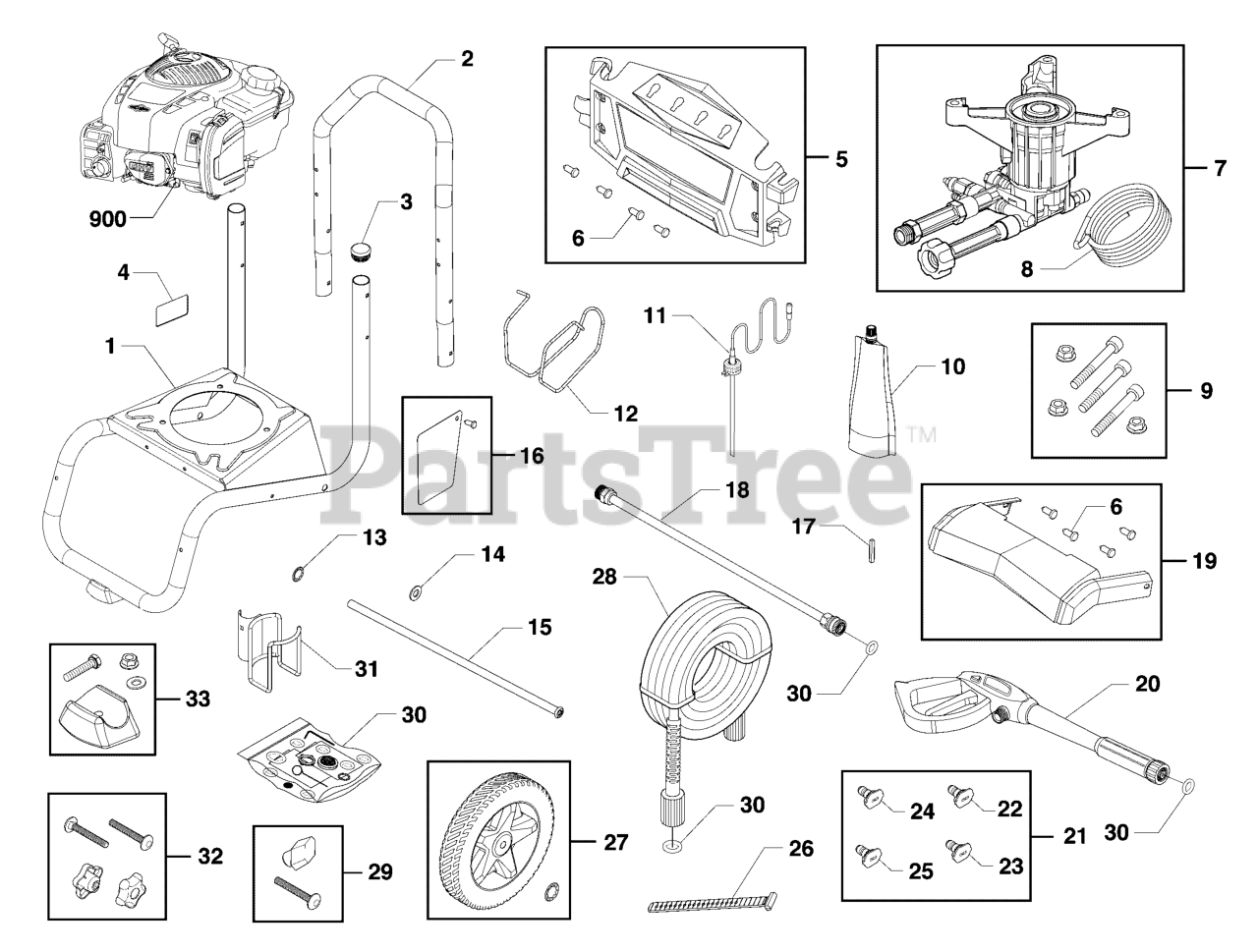

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84001724

BASE

Note: (Includes Item 3)

$245.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84001718

HANDLE

$83.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84001735

KIT-BILLBOARD

$79.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 707969

PUMP

$289.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 706617

KIT, Hardware, Pump Mounting

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton 204658GS

Hose, Chemical

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84001723

WIREFORM

$15.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 314957GS

AXLE

$15.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 84002158

KIT-TAG, WARNING

$9.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 11

0

19

Briggs & Stratton 84002157

SHROUD

$63.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84002234

GUN
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84002189

KIT-NOZZLES

$10.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 707450

NOZZLE-QC RED

$8.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 195983AFGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 195983AMGS

NOZZLE, QC, White

$10.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84001717

STRAP

$6.49

$

In Stock, only 2 left!

0

27

Briggs & Stratton 84001734

WHEEL

$42.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84002529

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 84002159

KIT-HARDWARE, HANDLE

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, Qty 20+

0

31

Briggs & Stratton 206566GS

WIREFORM

$27.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, Qty 6

0

33

Briggs & Stratton 707979

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 104M02-0126-F1

* ENGINE

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
