CMXGWAS020734-00 - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

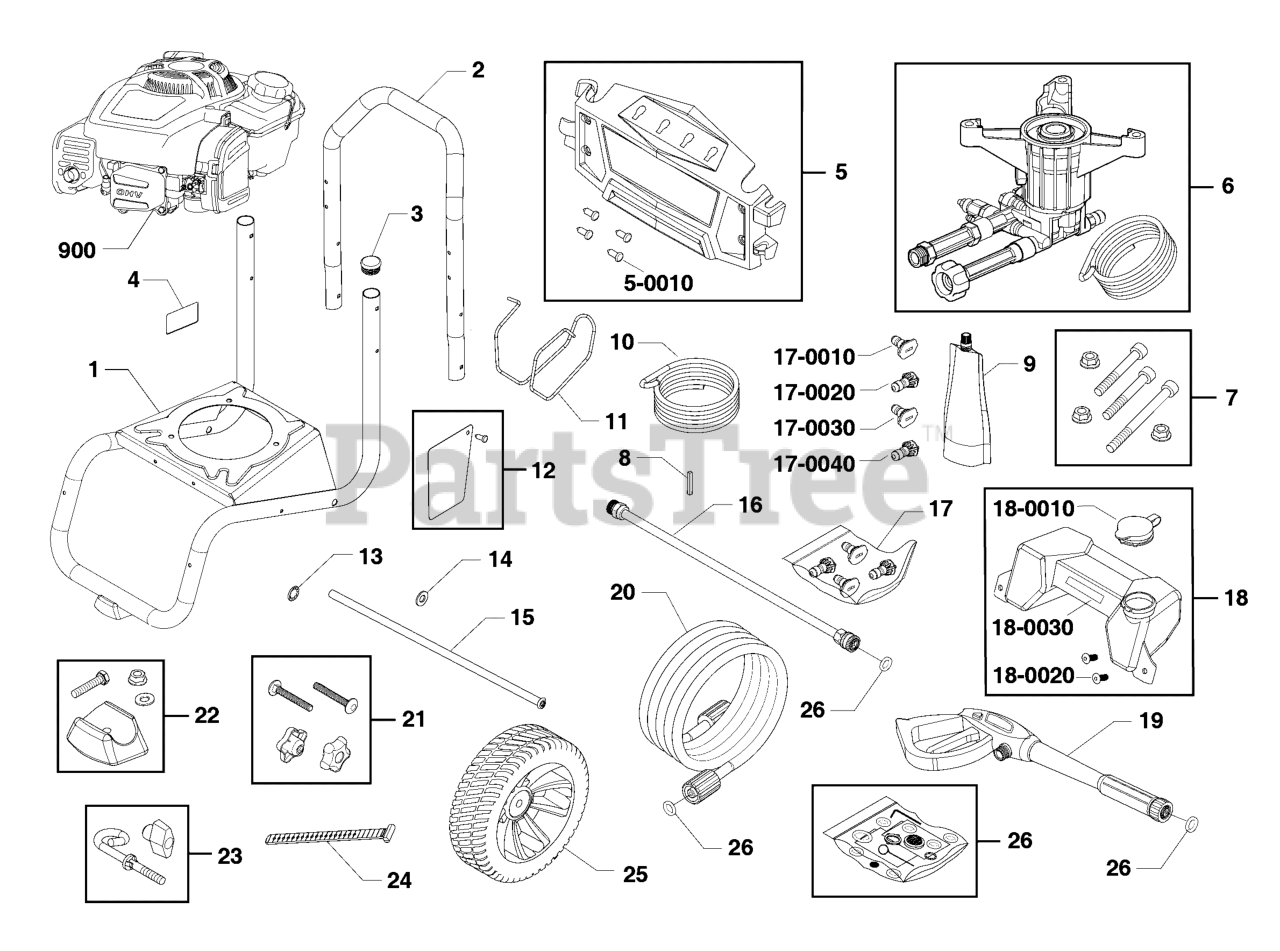

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84001724

BASE

Note: (Includes Item 3)

$245.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84001718

HANDLE

$83.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84001726

KIT-Billboard

$74.99

$

Usually ships in 2-12 days

0

5-0010

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 707007

PUMP

$328.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 700223

KIT, Hardware, Pump Mounting

$7.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 705076

HOSE-CHEMICAL (cut to fit)

$12.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 84001723

WIREFORM

$15.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 705854

TAG, Warning, English

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 314957GS

AXLE

$15.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 11

0

17

Briggs & Stratton 707182

Kit, Quick Connect Nozzles

$15.99

$

Usually ships in 2-12 days

0

17-0010

Briggs & Stratton 709745

NOZZLE-QC, RED

$6.99

$

Usually ships in 2-12 days

0

17-0020

Briggs & Stratton 195983AKGS

NOZZLE, QC, Yellow

$10.99

$

Usually ships in 2-12 days

0

17-0030

Briggs & Stratton 195983VGS

Nozzle, QC, White

$10.99

$

Usually ships in 2-12 days

0

17-0040

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84001725

KIT-CHEMICAL TANK

$80.99

$

Usually ships in 2-12 days

0

18-0010

Briggs & Stratton 84001722

CAP

$5.99

$

Usually ships in 2-12 days

0

18-0020

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

18-0030

Briggs & Stratton 709975

DECAL-WARNING

$13.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 708807

GUN
(Superseded to 84003228)

$74.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84001721

HOSE
(Superseded to 84002542)

$59.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, Qty 6

0

22

Briggs & Stratton 707979

MOUNT-VIBRATION

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84001719

KIT-GUIDE ROPE

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84001717

STRAP

$6.49

$

In Stock, only 2 left!

0

25

Briggs & Stratton 84001727

WHEEL

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 705001

KIT-O-RING MAINTENANCE

$18.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 124P02-0009-F1

ENGINE

Note: (Refer to Note:*)

$

$

Currently unavailable

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
