CMXGVAMKC29C (21AKC29C793) - Craftsman Cultivator General Assembly Parts Diagram

Cultivator

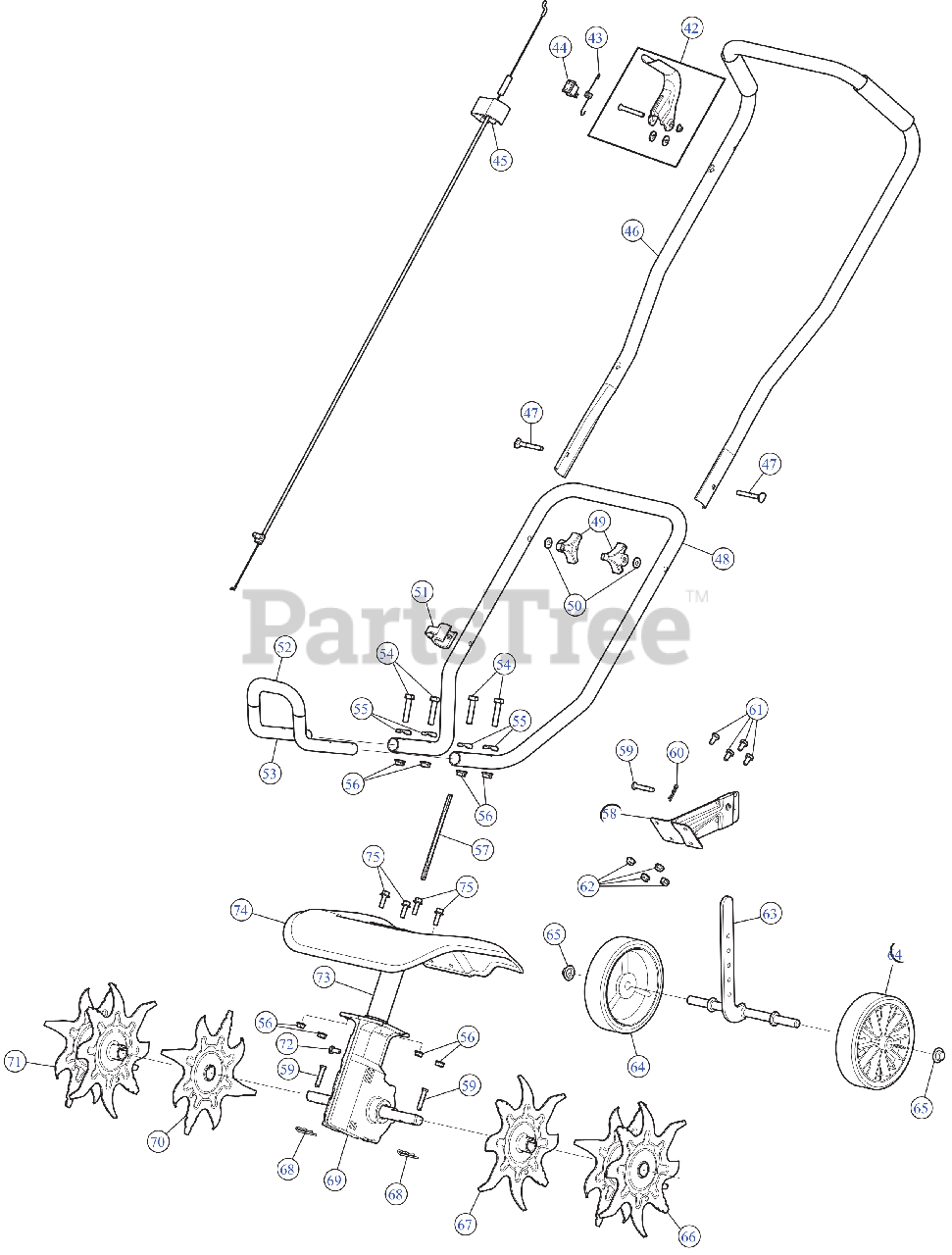

General Assembly Parts Diagram

  • Title
42

MTD 753-06592

THROTTLE LVR W/HDW
(Superseded to 753-10504)

$6.49

$

In Stock, only 3 left!

0

43

MTD 753-06636

SPRING

$3.49

$

In Stock, Qty 12

0

44

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

45

MTD 753-06546

THROTTLE CABLE

$9.99

$

In Stock, only 1 left!

0

46

MTD 753-06818

HANDLE UPR CULT

$26.99

$

Usually ships in 3-6 days

0

47

MTD 791-182899

BOLT, CARRIAGE CRV

$7.99

$

Usually ships in 3-6 days

0

48

MTD 749-1295A-0637

LOWER HANDLE

$59.99

$

In Stock, only 1 left!

0

49

MTD 791-182677

KNOB, 3-PRONG ¼ "-

$14.99

$

In Stock, only 2 left!

0

50

MTD 4150

WASH, FLAT SPECIAL

$3.49

$

Usually ships in 3-6 days

0

51

MTD 731-1820

CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

52

MTD 720-0294A

FOAM GRIP - 9"

$7.49

$

In Stock, only 3 left!

0

53

MTD 753-04055

FRONT HANDLE

$36.99

$

Usually ships in 3-6 days

0

54

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

55

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

56

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

57

MTD 753-04499

SHAFT-FLEX

$29.99

$

In Stock, Qty 5

0

58

MTD 753-04058

TAILPIECE BRACKET ASSEMBLY

$41.99

$

Usually ships in 3-6 days

0

59

MTD 711-05527

CLEVIS PIN

$4.99

$

Usually ships in 3-6 days

0

60

MTD 914-0104

COTTER PIN .072 DIA. 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 11

0

62

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

63

MTD 753-04063

BRACKET ASSEMBLY

$58.99

$

In Stock, only 1 left!

0

64

MTD 734-04261

WHEEL 5-1.5 GRAY

$21.99

$

In Stock, only 1 left!

0

65

MTD 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

66

MTD 753-06015

TINE ASSEMBLY (LH)

$25.99

$

Usually ships in 3-6 days

0

67

MTD 753-05987

TINE ASSEMBLY (LH)I (RH)O

$40.99

$

In Stock, only 1 left!

0

68

MTD 753-06013

COTTER PIN

$4.49

$

Usually ships in 3-6 days

0

69

MTD 753-06063

GEARBOX ASSEMBLY CULT

$133.99

$

In Stock, Qty 5

0

70

MTD 753-05986

TINE ASSEMBLY (LH)O (RH)I

$40.99

$

In Stock, only 1 left!

0

71

MTD 753-06016

TINE ASSEMBLY (RH)

$25.99

$

In Stock, only 4 left!

0

72

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

73

MTD 753-06242

BOOM ASSEMBLY CULT

$22.99

$

Usually ships in 3-6 days

0

74

MTD 786-04393-49

TINE SHIELD

$41.99

$

Usually ships in 3-6 days

0

75

MTD 6109

HEX SCREW 1/4-20X.

$4.49

$

Usually ships in 3-6 days

0
