CMXGSAMA426S (41AY426S791) - Craftsman Chainsaw General Assembly Parts Diagram

Chainsaw

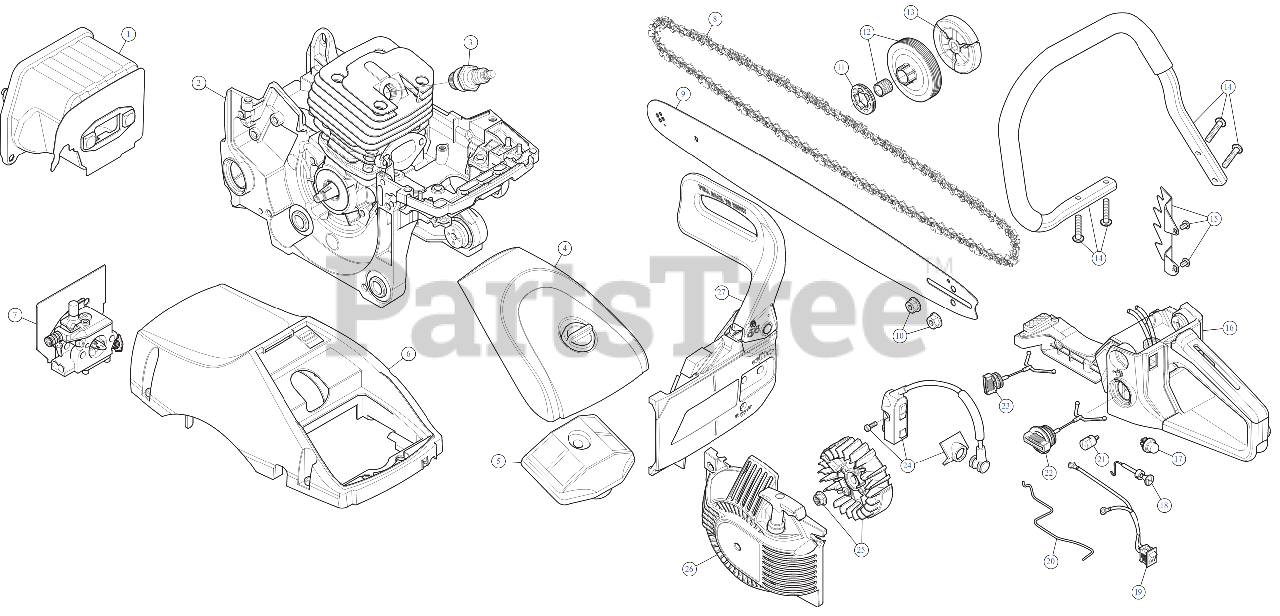

General Assembly Parts Diagram

  • Title

1

MTD 953-08106

MUFFLER ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

2

MTD 953-08331

SHORT BLOCK 42CC YD4200.8-31000

$130.99

$

Usually ships in 3-6 days

0

3

MTD 953-08107

SPARK PLUG:L8RTF YD4500-26200

$7.99

$

In Stock, only 3 left!

0

4

MTD 953-08129

AIR FILTER COVER ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

5

MTD 953-08134

AIR FILTER W/SEAL

$5.49

$

In Stock, Qty 19

0

6

MTD 953-08135

COVER

Note: (with Plate and Screws (5)

$11.99

$

Usually ships in 3-6 days

0

7

MTD 953-08137

CARBURATOR

$29.99

$

Usually ships in 3-6 days

0

8

MTD 713-05041

CHAIN: 16" TRILINK

$32.99

$

In Stock, only 4 left!

0

9

MTD 795-00502

CHAINSAW BAR 16" (OREGON)
(Superseded to 795-00542)

$34.99

$

Usually ships in 3-6 days

0

10

MTD 953-08105

BAR NUT M8

$3.49

$

In Stock, Qty 20+

0

11

MTD YD4500-22050

DRIVE SPROCKET
(Superseded to 753-10164)

$6.99

$

In Stock, Qty 20+

0

12

MTD 953-08220

CLUTCH DRUM ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

13

MTD 953-08145

CLUTCH ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

14

MTD 953-08130

HANDLE ASSEMBLY

Note: (with Screws (4)

$18.99

$

Usually ships in 3-6 days

0

15

MTD 953-08128

SPIKE PLATE W/HDW

Note: (with Screws (2)

$5.49

$

Usually ships in 3-6 days

0

16

MTD 953-08142

FUEL HOUSING ASSEMBLY

$40.99

$

In Stock, only 3 left!

0

17

MTD 953-08127

PRIMER BULB YD2500-18410

$5.99

$

In Stock, Qty 20+

0

18

MTD 953-08271

CHOKE LEVER ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

19

MTD 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 9

0

20

MTD 953-08132

THROTTLE ROD

$3.49

$

In Stock, only 1 left!

0

21

MTD 953-08123

FUEL FILTER YD4600-18034

$11.99

$

In Stock, only 2 left!

0

22

MTD 953-08268

FUEL CAP ASSEMBLY SRS

$5.49

$

In Stock, Qty 6

0

23

MTD 953-08222

OIL CAP ASSEMBLY

$5.49

$

Usually ships in 3-6 days

0

24

MTD 953-08138

MODULE

Note: (with Screws (2)

$26.99

$

In Stock, only 1 left!

0

25

MTD 953-08131

FLYWHEEL

$20.99

$

Usually ships in 3-6 days

0

26

MTD 753-09384

RECOIL ASSEMBLY (SBD4216YD4216.8CM-25313)

$27.99

$

In Stock, only 1 left!

0

27

MTD 753-09387

BRAKE ASSEMBLY (SBD4216 YD4216.8CM-27724)

$30.99

$

In Stock, only 4 left!

0
