CMXGKAME2979 (25A-E29-793) - Craftsman Edger (2019) General Assembly Parts Diagram

Edger

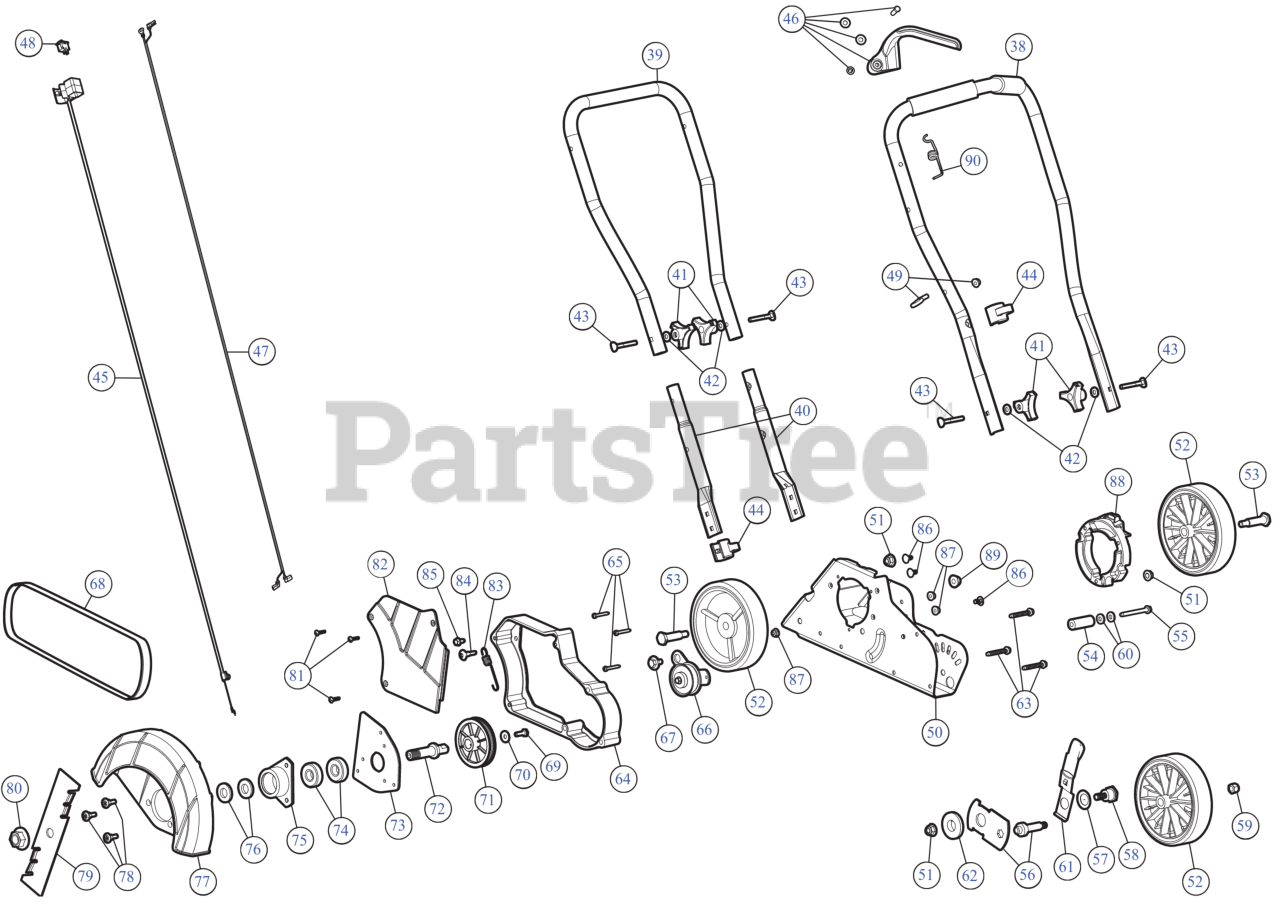

General Assembly Parts Diagram

  • Title

38

MTD 753-06542

HANDLE UP

$28.99

$

Usually ships in 3-6 days

0

39

MTD 753-06543

HANDLE MID

$22.99

$

In Stock, only 1 left!

0

40

MTD 753-06544

HANDLE EXT

$6.99

$

Usually ships in 3-6 days

0

41

MTD 791-182677

KNOB, 3-PRONG ¼ "-

$14.99

$

In Stock, only 2 left!

0

42

MTD 4150

WASH, FLAT SPECIAL

$3.49

$

Usually ships in 3-6 days

0

43

MTD 791-182899

BOLT, CARRIAGE CRV

$7.99

$

Usually ships in 3-6 days

0

44

MTD 731-1820

CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

45

MTD 753-06546

THROTTLE CABLE

$9.99

$

In Stock, only 1 left!

0

46

MTD 753-06592

THROTTLE LVR W/HDW
(Superseded to 753-10504)

$6.49

$

In Stock, only 3 left!

0

47

MTD 9681

WIRE LEAD

$7.49

$

Usually ships in 3-6 days

0

48

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

49

MTD 753-05524

ROPE GUIDE

$6.99

$

Usually ships in 3-6 days

0

50

MTD 753-06547

FRAME

$49.99

$

Usually ships in 3-6 days

0

51

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

52

MTD 734-04261

WHEEL 5-1.5 GRAY

$21.99

$

In Stock, only 1 left!

0

53

MTD 938-0373

SHOULDER SCREW

$9.49

$

In Stock, Qty 20+

0

54

MTD 750-04783

SPACER

$3.99

$

Usually ships in 3-6 days

0

55

MTD 710-1206

SCREW 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

56

MTD 687-02582S

PIVOT ARM

$3.99

$

Usually ships in 3-6 days

0

57

MTD 736-0741

BELL WASHER

$4.99

$

Usually ships in 3-6 days

0

58

MTD 738-1172

SHOULDER SCREW .75 X.50 X3/8-16

$5.99

$

Usually ships in 3-6 days

0

59

MTD 712-0130

HEX NUT INS L-3/8-16

$3.99

$

In Stock, Qty 13

0

60

MTD 750-04929

SPACER

$4.49

$

In Stock, only 4 left!

0

61

MTD 987-02051

FRONT HEIGHT ADJUST LEVER ASSEMBLY
(Superseded to 687-02051)

$

$

Not available

62

MTD 741-04242

HEIGHT ADJUSTMENT BEARING

$7.49

$

Usually ships in 3-6 days

0

63

MTD 710-1026

SCREW 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

64

MTD 753-06556

SPACER

$3.49

$

Usually ships in 3-6 days

0

65

MTD 753-06559

SCREW 8-16X1.25

$2.99

$

In Stock, only 2 left!

0

66

MTD 753-05540

IDLER PULLEY ASSEMBLY

$38.99

$

Usually ships in 3-6 days

0

67

MTD 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$6.99

$

In Stock, only 1 left!

0

68

MTD 754-04149

BELT

$30.99

$

In Stock, Qty 7

0

69

MTD 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

70

MTD 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

71

MTD 756-04087B

PULLEY

$12.99

$

In Stock, only 3 left!

0

72

MTD 753-05543

BLADE SPINDLE

$21.99

$

In Stock, only 2 left!

0

73

MTD 787-01505

SPINDLE MOUNT PLATE

$7.49

$

Usually ships in 3-6 days

0

74

MTD 741-04547

BALL BEARING

$9.49

$

In Stock, only 1 left!

0

75

MTD 718-04012

BEARING CUP

$21.99

$

Usually ships in 3-6 days

0

76

MTD 936-04088

FLAT WASHER .635X1.24X.181
(Superseded to 736-04088)

$4.49

$

In Stock, only 4 left!

0

77

MTD 731P05064

EDGER BLADE GUARD (W/LABEL)

$27.99

$

Usually ships in 3-6 days

0

78

MTD 738-0706D

SHOULDER SCREW .375X.280:1/4-14

$4.49

$

In Stock, only 2 left!

0

79

MTD 781-0080-0637

EDGER BLADE

$8.99

$

In Stock, Qty 20+

0

80

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

81

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

82

MTD 731-05822

BELT COVER

$11.99

$

In Stock, only 2 left!

0

83

MTD 753-06562

SPRING

$3.49

$

In Stock, only 2 left!

0

84

MTD 753-06563

BOLT 1/4-20

$2.99

$

In Stock, only 1 left!

0

85

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-05177

CARRIAGE BOLT 1/4-20X.50"

$4.99

$

In Stock, Qty 20+

0

87

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

88

MTD 753-06566

SPACER

$6.49

$

Usually ships in 3-6 days

0

89

MTD 712-04230

NUT

$3.99

$

In Stock, only 4 left!

0

90

MTD 753-06636

SPRING

$3.49

$

In Stock, Qty 12

0
