CMXGKAMDE25C (41ADE25C793) - Craftsman Edger Edger Assembly Parts Diagram

Edger

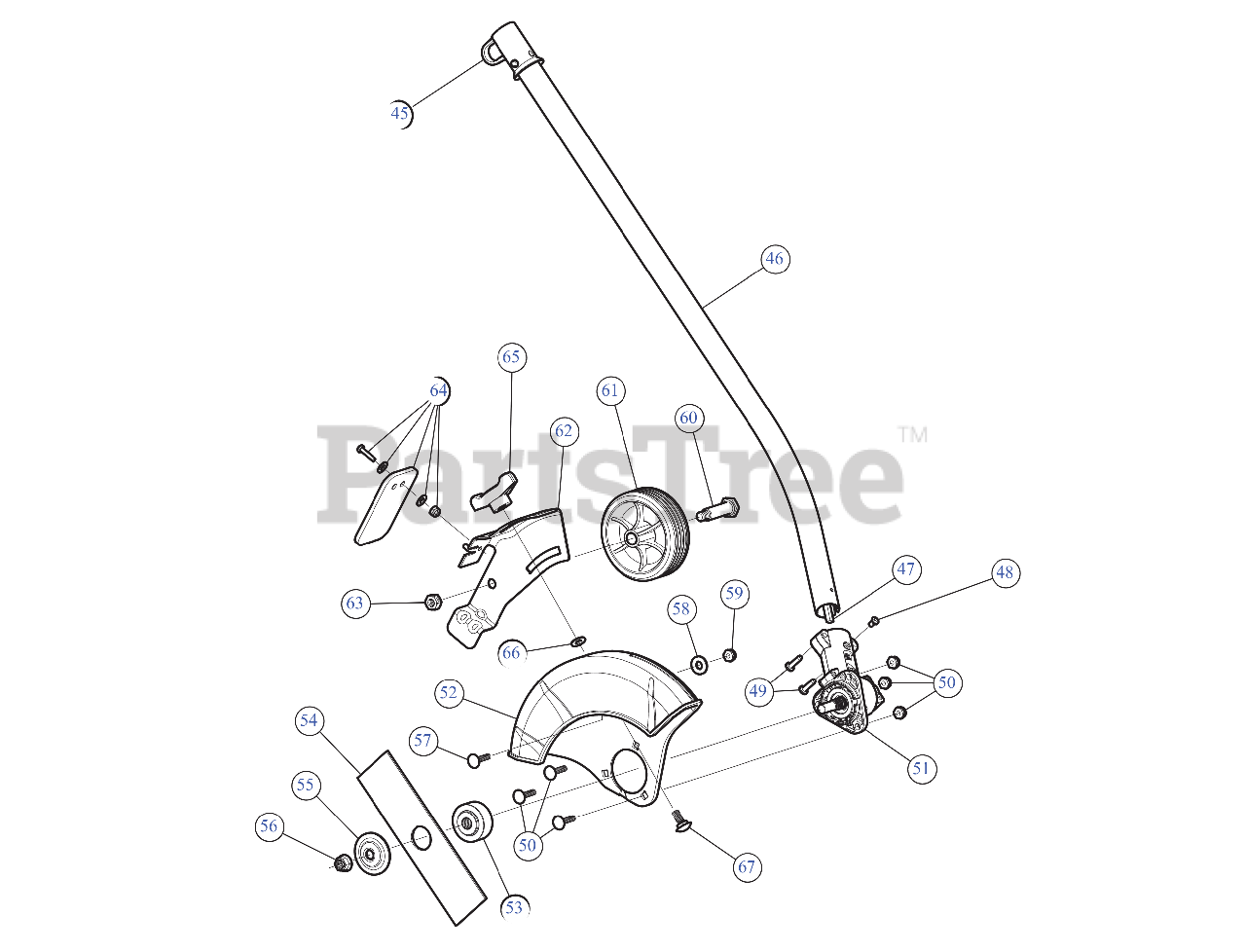

Edger Assembly Parts Diagram

  • Title

45

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

46

MTD 753-08036

BOOM ASSEMBLY LE

$20.99

$

In Stock, only 3 left!

0

47

MTD 753-05267

LOWERIBLE DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

48

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

Usually ships in 3-6 days

0

49

MTD 791-182195

SCREW #

$7.49

$

In Stock, only 1 left!

0

50

MTD 753-1217

HDWR ASM:GUARD MT

$3.49

$

Usually ships in 3-6 days

0

51

MTD 753-04258

GRBX ASSEMBLY

$108.99

$

In Stock, only 1 left!

0

52

MTD 753-08019

GUARD

$7.99

$

In Stock, only 3 left!

0

53

MTD 792-10785

SPACER

$2.99

$

In Stock, only 2 left!

0

54

MTD 791-613223B

EDGER BLADE
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

55

MTD 791-147490

WASHER-BLADE CLAMP BRUSH CUT

$11.99

$

In Stock, only 4 left!

0

56

MTD 712-04105

BLADE LOCK NUT

$10.99

$

Usually ships in 3-6 days

0

57

MTD 753-04270

BOLT:WHEEL MT BRACKET

$4.99

$

Usually ships in 3-6 days

0

58

MTD 791-182216

WASH, FLAT .734 OD

$

$

Not available

59

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

60

MTD 791-180776

BOLT
(Superseded to 5556)

$1.99

$

In Stock, only 1 left!

0

61

MTD 6356

WHEEL 3.75" (WHITE)

$5.49

$

Usually ships in 3-6 days

0

62

MTD 753-08021

BRACKET GUARD

$10.99

$

In Stock, only 2 left!

0

63

MTD 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

64

MTD 753-08020

DEFLECTOR W/HDW

Note: (with Hardware)

$3.99

$

In Stock, Qty 11

0

65

MTD 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, only 2 left!

0

66

MTD 736-04107

WASHER .406X1.0X.095

$4.49

$

In Stock, only 1 left!

0

67

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0
