CMXGGAS030835-02 - Craftsman 5,000 Watt Portable Generator, CSA Compliant Control Panel Parts Diagram

5,000 Watt Portable Generator, CSA Compliant

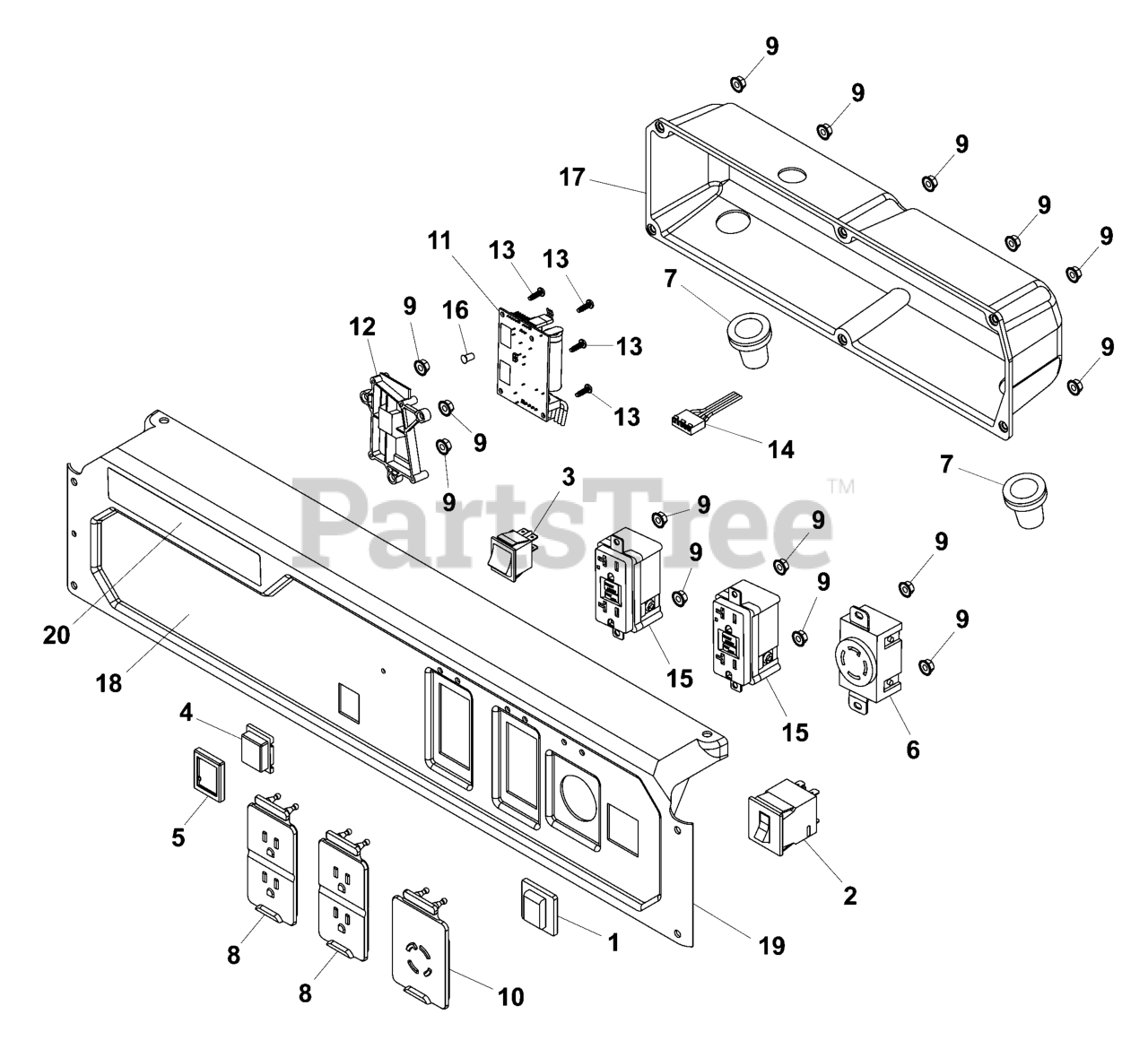

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 191481GS

BOOT, Breaker Circuit

$11.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 202029GS

BREAKER, Circuit, 20A

$166.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312684GS

SWITCH, ON/OFF

$15.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 312685GS

BOOT

$6.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 312686GS

PLATE

$10.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 312689GS

OUTLET, 120/240V TL30A

$18.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 312741GS

GROMMET

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 313389GS

COVER, Outlet

$

$

Not available

9

Briggs & Stratton 795016

NUT

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 703898

COVER-OUTLET

$

$

Not available

11

Briggs & Stratton 84005244

MODULE-CO

Note: (Includes Item 13)

$142.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 772213

BRACKET-MODULE

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84001081

SCREW

$1.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 772215

WIRE-HARNESS-CO

$27.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 709526

OUTLET-GFCI

$64.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 772217

LIGHT-PIPE

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84001039

BOX-Control Panel

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84006322

DECAL

$

$

Currently unavailable

19

Briggs & Stratton 84006298

PANEL-CONTROL

Note: Includes Item 18 & 20)

$

$

Currently unavailable

20

Briggs & Stratton 84001101

DECAL

$7.99

$

Usually ships in 2-12 days

0
