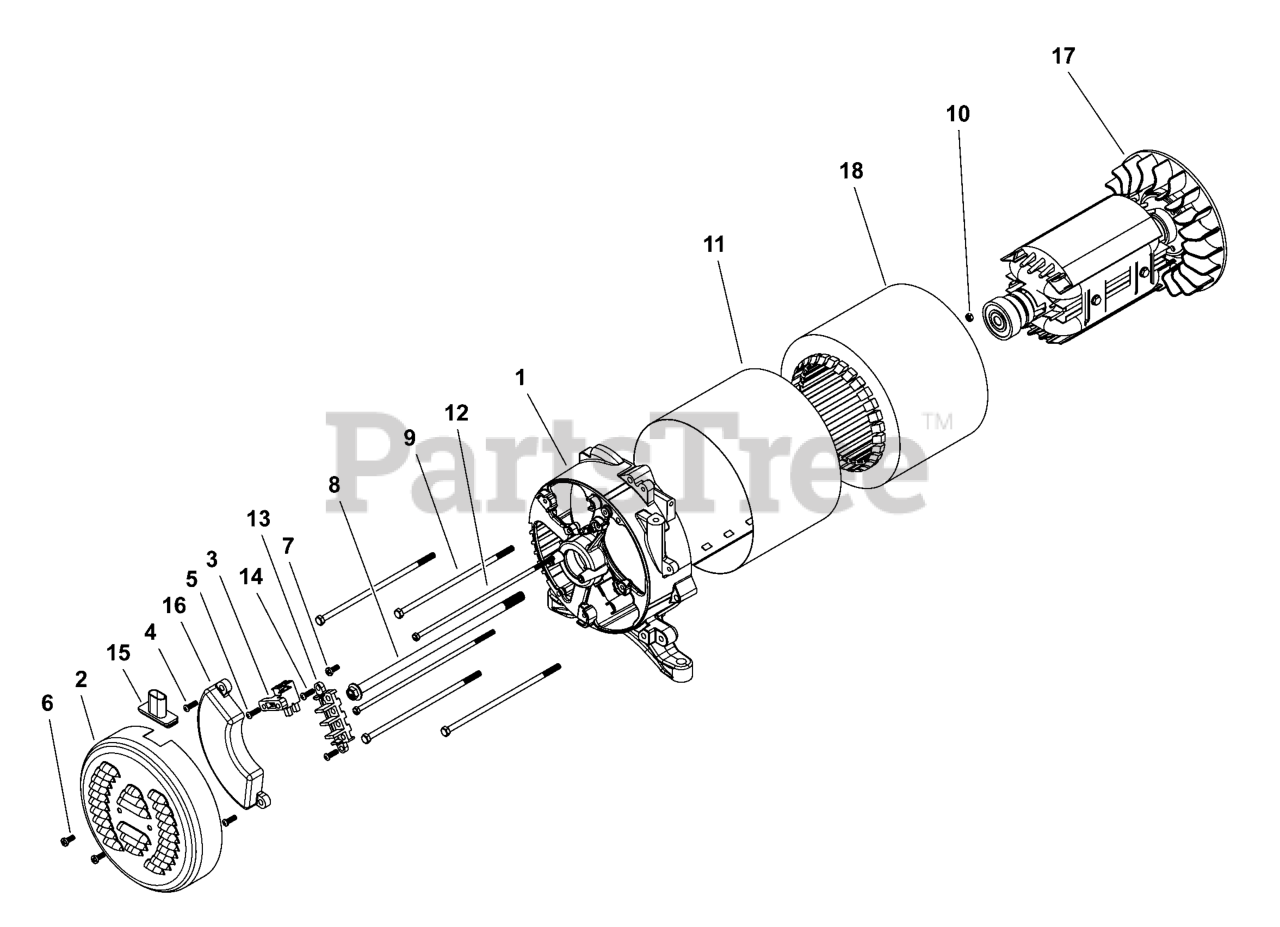

CMXGGAS030731V-00 - Craftsman 5,000 Watt Portable Generator Alternator (80107733) Parts Diagram

5,000 Watt Portable Generator

Alternator (80107733) Parts Diagram

  • Title

1

Briggs & Stratton 312866GS

SUPPORT, Bearing

$83.99

$

In Stock, only 3 left!

0

2

Briggs & Stratton 312870GS

COVER, Rear Bearing

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312904GS

BRUSH ASSEMBLY

$15.99

$

In Stock, Qty 14

0

4

Briggs & Stratton 312907GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 312908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 312909GS

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 312911GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 312912GS

SCREW

$7.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 312915GS

BOLT

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 312916GS

NUT

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 312918GS

BAND-STATOR

$17.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 312919GS

BOLT

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 312921GS

BLOCK, Junction

$9.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 312922GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 703013

COVER, Alternator, Rubber

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 703310

VOLTAGE REGULATOR

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 84007660

ROTOR

$

$

Currently unavailable

18

Briggs & Stratton 84007661

STATOR

$

$

Currently unavailable
