CMXGAAMR27MF (41AR27MF793) - Craftsman Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

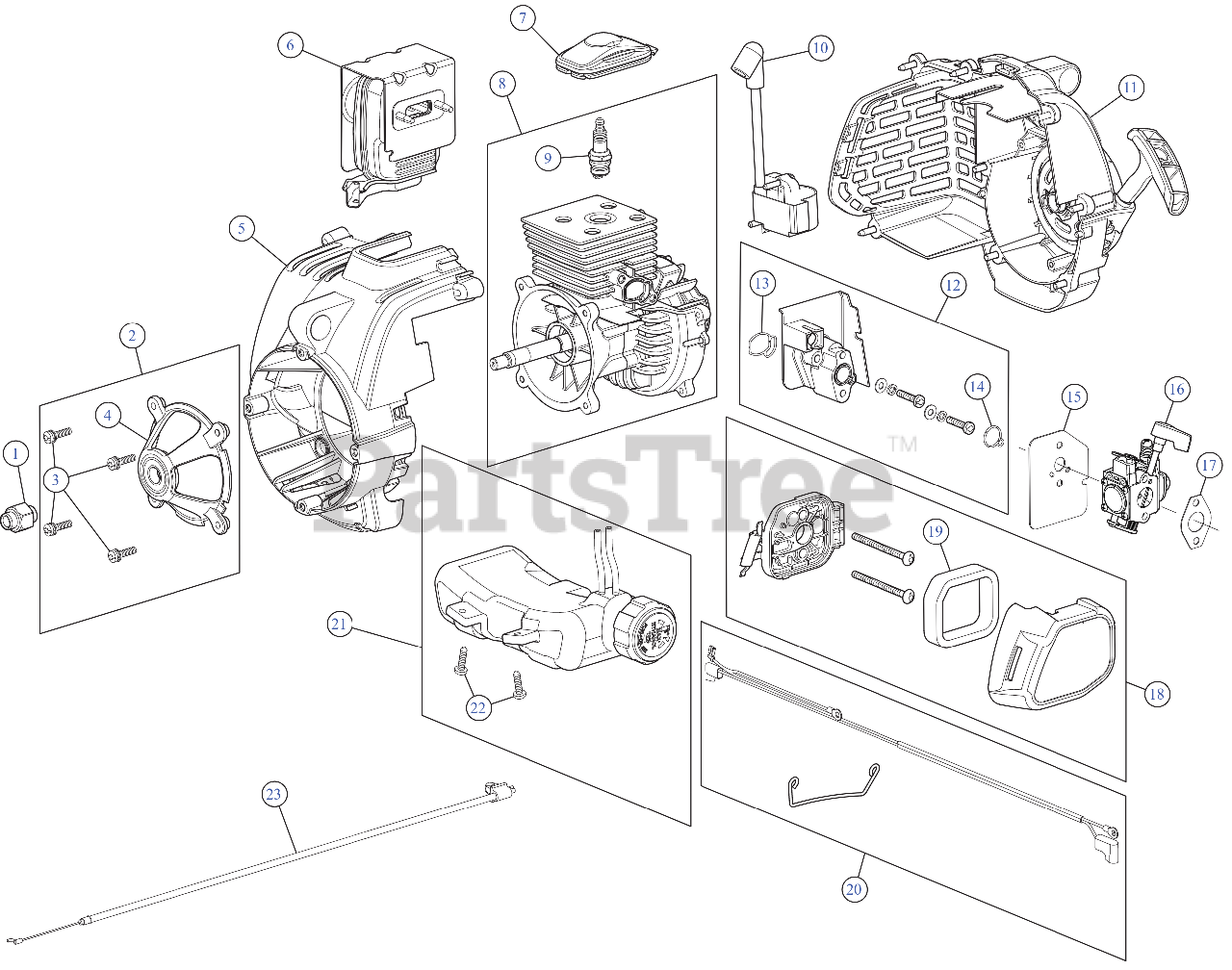

Engine Assembly Parts Diagram

  • Title

1

MTD 753-05705

FLYWHEEL ADPT

$9.49

$

In Stock, only 1 left!

0

2

MTD 753-08280

BEARING HLDR ASSEMBLY

Note: (Incl. 3 and 4)

$12.99

$

In Stock, only 1 left!

0

3

MTD 710-04742A

SCREW M5X0.8-20

$3.49

$

In Stock, only 1 left!

0

4

MTD 753-08281

BEARING HOLDER

$9.49

$

Usually ships in 3-6 days

0

5

MTD 753-09304

COVER ASSEMBLY (FRONT)

$12.99

$

Usually ships in 3-6 days

0

6

MTD 751-14556

MUFFLER ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

7

MTD 753-06362

SPARK PLUG COVER

$3.49

$

Usually ships in 3-6 days

0

8

MTD 753-08283

SHORT BLOCK

Note: (Incl. 9)

$89.99

$

Usually ships in 3-6 days

0

9

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

10

MTD 753-08284

MODULE BLOWER

$20.99

$

In Stock, only 1 left!

0

11

MTD 753-09305

COVER ASSEMBLY (REAR)

$19.99

$

Usually ships in 3-6 days

0

12

MTD 753-08287

INTAKE ASSEMBLY BLOWER

Note: (Incl. 13 and 14)

$11.99

$

In Stock, Qty 6

0

13

MTD 753-06184

O-RING

$3.49

$

In Stock, only 1 left!

0

14

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

15

MTD 721-04882

CARBURETOR GASKET

$2.99

$

Usually ships in 3-6 days

0

16

MTD 753-06288

CARBURETOR

$37.99

$

In Stock, Qty 6

0

17

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-06500

AIRCLEANER COVER ASSEMBLY

$6.49

$

In Stock, Qty 10

0

19

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-08289

WIRE LEAD BLOWER

$9.49

$

In Stock, only 2 left!

0

21

MTD 753-08288

FUEL TANK ASSEMBLY

Note: (Incl. 22)

$21.99

$

Usually ships in 3-6 days

0

22

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

23

MTD 946-05128

THROTTLE CABLE

$3.99

$

Usually ships in 3-6 days

0
