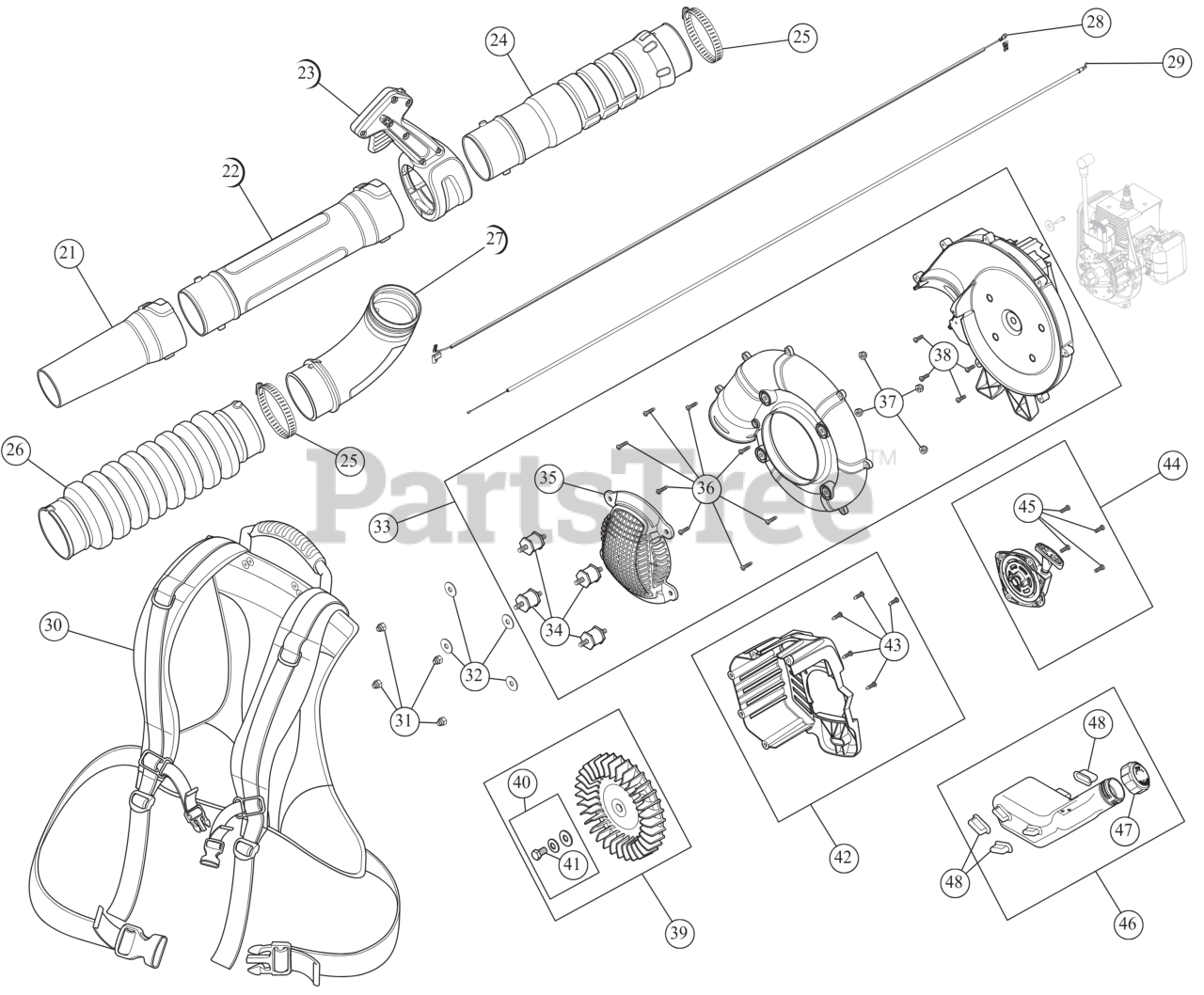

CMXGAAMR27BP (41AR27BP793) - Craftsman Backpack Blower General Assembly Parts Diagram

Backpack Blower

General Assembly Parts Diagram

  • Title
21

MTD 753-06000

NOZZLE BKPK CUB

$13.99

$

In Stock, only 1 left!

0

22

MTD 753-05971

TUBE LOWER BKPK

$15.99

$

In Stock, only 1 left!

0

23

MTD 753-05975

GRIP ASSEMBLY 4CYBKPK

$53.99

$

Usually ships in 3-6 days

0

24

MTD 753-05991

TUBE UPPER BKPK

$20.99

$

Usually ships in 3-6 days

0

25

MTD 726-04080

HOSE CLAMP

$11.99

$

In Stock, Qty 11

0

26

MTD 753-05641

TUBE BKPK

$31.99

$

Usually ships in 3-6 days

0

27

MTD 753-05990

TUBE ELBOW BKPK

$18.99

$

Usually ships in 3-6 days

0

28

MTD 753-06994

LEAD WIRE

$7.99

$

Usually ships in 3-6 days

0

29

MTD 753-06434

THROTTLE CABLE

$8.49

$

In Stock, Qty 20+

0

30

MTD 751-15097

HARNESS

$70.99

$

Usually ships in 3-6 days

0

31

MTD 712-0442

HEX ACORN NUT

$6.99

$

In Stock, only 4 left!

0

32

MTD 4150

WASH, FLAT SPECIAL

$3.49

$

Usually ships in 3-6 days

0

33

MTD 753-06594

IMPELLER HOUSING BPK

Note: (Incl. 34 - 38)

$35.99

$

Usually ships in 3-6 days

0

34

MTD 753-05648

INSULATOR MOUNT

$14.99

$

Usually ships in 3-6 days

0

35

MTD 753-05649

INTAKE COVER AC4

$7.49

$

Usually ships in 3-6 days

0

36

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

37

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

38

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

39

MTD 753-05651

IMPELLER ASSEMBLY

Note: (Incl. 40 & 41)

$31.99

$

Usually ships in 3-6 days

0

40

MTD 753-04482

HDWE-IMPELLER

Note: (Incl. 41)

$9.49

$

Usually ships in 3-6 days

0

41

MTD 791-182414

BOLT, HEX HD 3/8-2

$4.99

$

Usually ships in 3-6 days

0

42

MTD 841-014101S

ENGINE COVER (LIB RED)

Note: (Incl. 43)

$7.49

$

Usually ships in 3-6 days

0

43

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

44

MTD 753-06596

STARTER ASSEMBLY RR

Note: (Incl. 45)

$16.99

$

In Stock, Qty 6

0

45

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

46

MTD 753-05654

FUEL TANK ASSEMBLY
(Superseded to 753-08721)

Note: (Incl. 47 & 48)

$25.99

$

In Stock, only 1 left!

0

47

MTD 791-182529

ASSEMBLY, FUEL CAP (RED TOP)

$21.99

$

In Stock, only 3 left!

0

48

MTD 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0
