CMCRM233301 (33AA27JDB93) - Craftsman 30" Rear-Engine Riding Mower, Electric (2023) Fender Parts Diagram

30" Rear-Engine Riding Mower, Electric

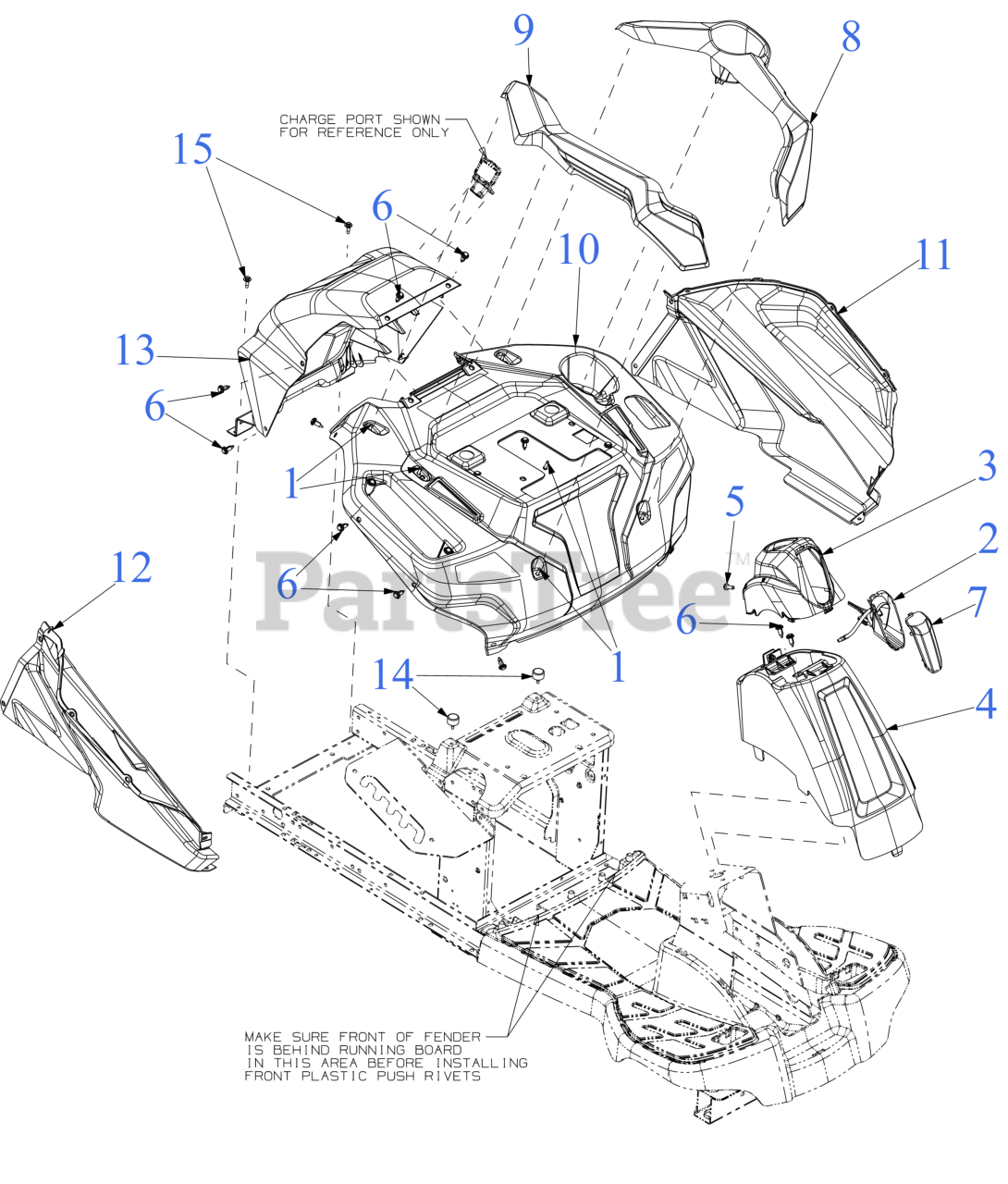

Fender Parts Diagram

  • Title

1

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, only 4 left!

0

2

MTD 925-05119

LED HEADLIGHT HARNESS ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

3

MTD 631-06580

COLUMN CAP (LIBERTY RED)

$37.99

$

Usually ships in 3-6 days

0

4

MTD 631-06581

COLUMN COVER (LIBERTY RED)

$44.99

$

Usually ships in 3-6 days

0

4

MTD 712-04092

U NUT

Note: (Not Shown)

$5.99

$

In Stock, only 2 left!

0

5

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 15

0

7

MTD 731-11484

LED HEADLIGHT LENS

$10.99

$

Usually ships in 3-6 days

0

8

MTD 731P27322

FENDER TRIM (LH)(BRIGHT SILVER)

$

$

Not available

9

MTD 731P27323

FENDER TRIM (RH)(BRIGHT SILVER)

$

$

Not available

10

MTD 731P27035

FENDER

$86.99

$

Usually ships in 3-6 days

0

11

MTD 731P27036

BODY PANEL (LH)

$40.99

$

Usually ships in 3-6 days

0

12

MTD 731P27037

BODY PANEL (RH)

$38.99

$

Usually ships in 3-6 days

0

13

MTD 731P27038B

REAR COVER

$47.99

$

Usually ships in 3-6 days

0

14

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, only 2 left!

0

15

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0
