CLT 46 CVT (13A878KT897) - Columbia 46" Lawn Tractor (2015) Frame and PTO Lift Parts Diagram

46" Lawn Tractor

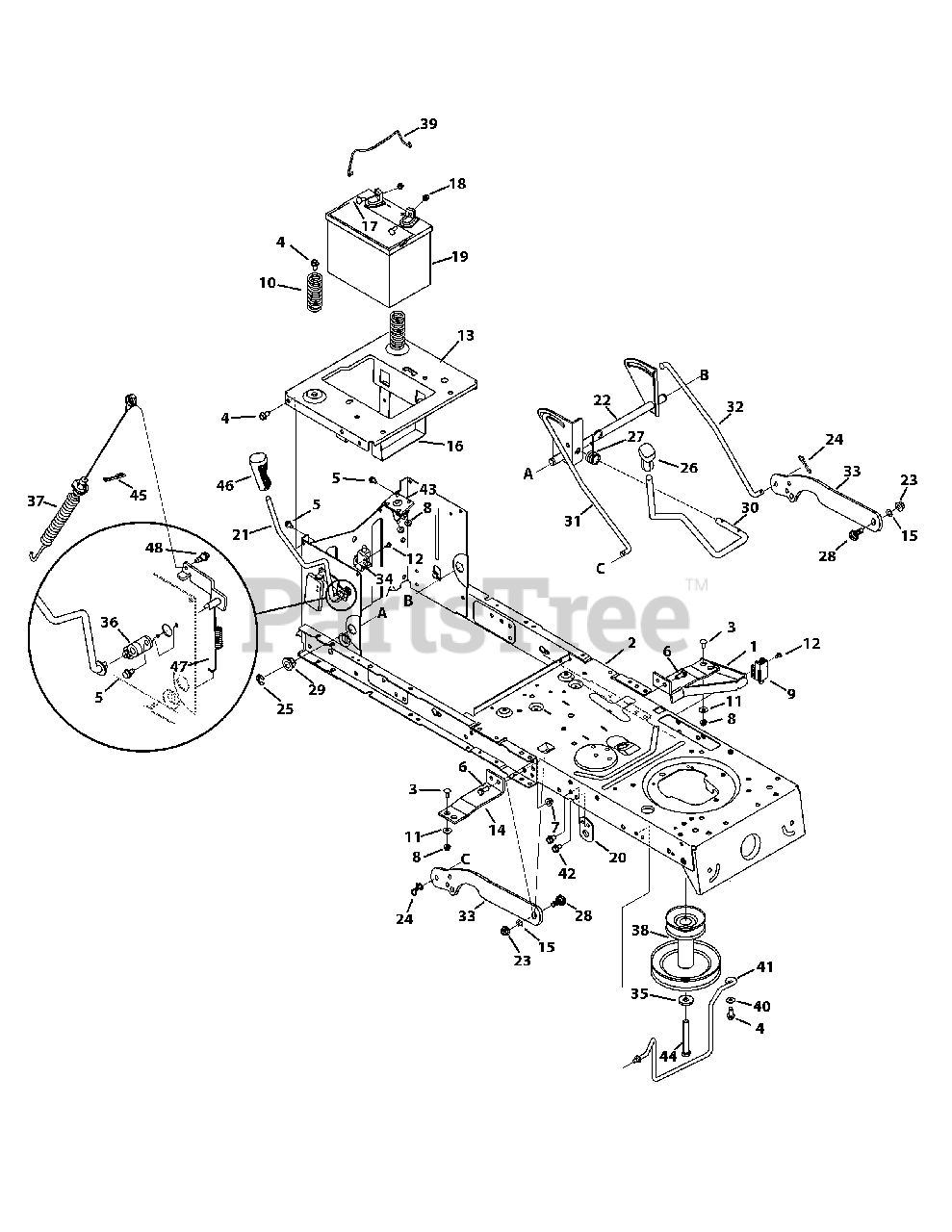

Frame and PTO Lift Parts Diagram

  • Title

1

MTD 683-04195-0606

Support Bracket

$39.99

$

Usually ships in 3-6 days

0

2

MTD 683-05139-0606

Frame Assembly
(Superseded to 683-05139A-0637)

$208.99

$

Usually ships in 3-6 days

0

3

MTD 710-0703

Screw Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

4

MTD 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

MTD 925-04039

Screw Mount Interlock Switch

$24.99

$

In Stock, Qty 8

0

10

MTD 732-0735A

Compression Spacer, 1.314 x 2.55

$29.99

$

In Stock, Qty 5

0

11

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

12

MTD 738-04237A

Shoulder Spacer, 10-32 x .500

$6.49

$

In Stock, Qty 7

0

13

MTD 783-04548D-0606

Seat Frame Bracket

$58.99

$

Usually ships in 3-6 days

0

14

MTD 783-04637-0606

Running Board Bracket
(Superseded to 783-04637-0637)

$16.99

$

Usually ships in 3-6 days

0

15

MTD 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

16

MTD 783-04869A-0637

Battery Bracket

$9.49

$

In Stock, Qty 20+

0

17

MTD 710-04666

Hex Head Flange, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

18

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

19

MTD 925-1707D

230 CCA Battery

$

$

Not available

20

MTD 783-04536B-0606

Support Bracket

$6.49

$

Usually ships in 3-6 days

0

21

MTD 647-05041-0637

PTO Handle Assembly

$11.99

$

In Stock, only 1 left!

0

22

MTD 683-04334-0637

Lift Assembly

$54.99

$

In Stock, only 2 left!

0

23

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 17

0

24

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

25

MTD 716-0106A

E Ring

$5.49

$

In Stock, only 2 left!

0

26

MTD 720-0298

Handle Grip, 5/8

$43.99

$

Usually ships in 3-6 days

0

27

MTD 732-04438

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

28

MTD 938-0380

Shoulder Bolt, 3/8-16 x .50 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

29

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

30

MTD 747-04653A

Deck Lift Handle

$45.99

$

In Stock, only 4 left!

0

31

MTD 747-06237A

Lift Rod, RH

$10.99

$

Usually ships in 3-6 days

0

32

MTD 747-06253

Lift Rod, LH

$10.99

$

In Stock, only 1 left!

0

33

MTD 783-0678C-0606

Lift Arm
(Superseded to 783-0678C-0637)

$29.99

$

In Stock, only 1 left!

0

34

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 17

0

35

MTD 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

36

MTD 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 12

0

37

MTD 946-05124A

Deck Engage Cable

$24.99

$

In Stock, only 1 left!

0

38

MTD 756-04196A

Engine Pulley, 3.39 x 6.12

$90.99

$

In Stock, only 1 left!

0

39

MTD 683-04448-0637

Battery Hold Down Rod

$10.99

$

Usually ships in 3-6 days

0

40

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

41

MTD 747-04857

42" Belt Keeper

$22.99

$

In Stock, Qty 13

0

42

MTD 710-0604A

Screw, 5/16-18.0 x .625

$4.49

$

In Stock, Qty 20+

0

43

MTD 725-06153

12V Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 8

0

44

MTD 710-3157A

Hex Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

45

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

46

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

In Stock, only 1 left!

0

47

MTD 732-04276A

PTO Spring Extension

$9.99

$

Usually ships in 3-6 days

0

48

MTD 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+
