CLT 46 CVT (13A878KT897) - Columbia 46" Lawn Tractor (2015) Engine Accessories Parts Diagram

46" Lawn Tractor

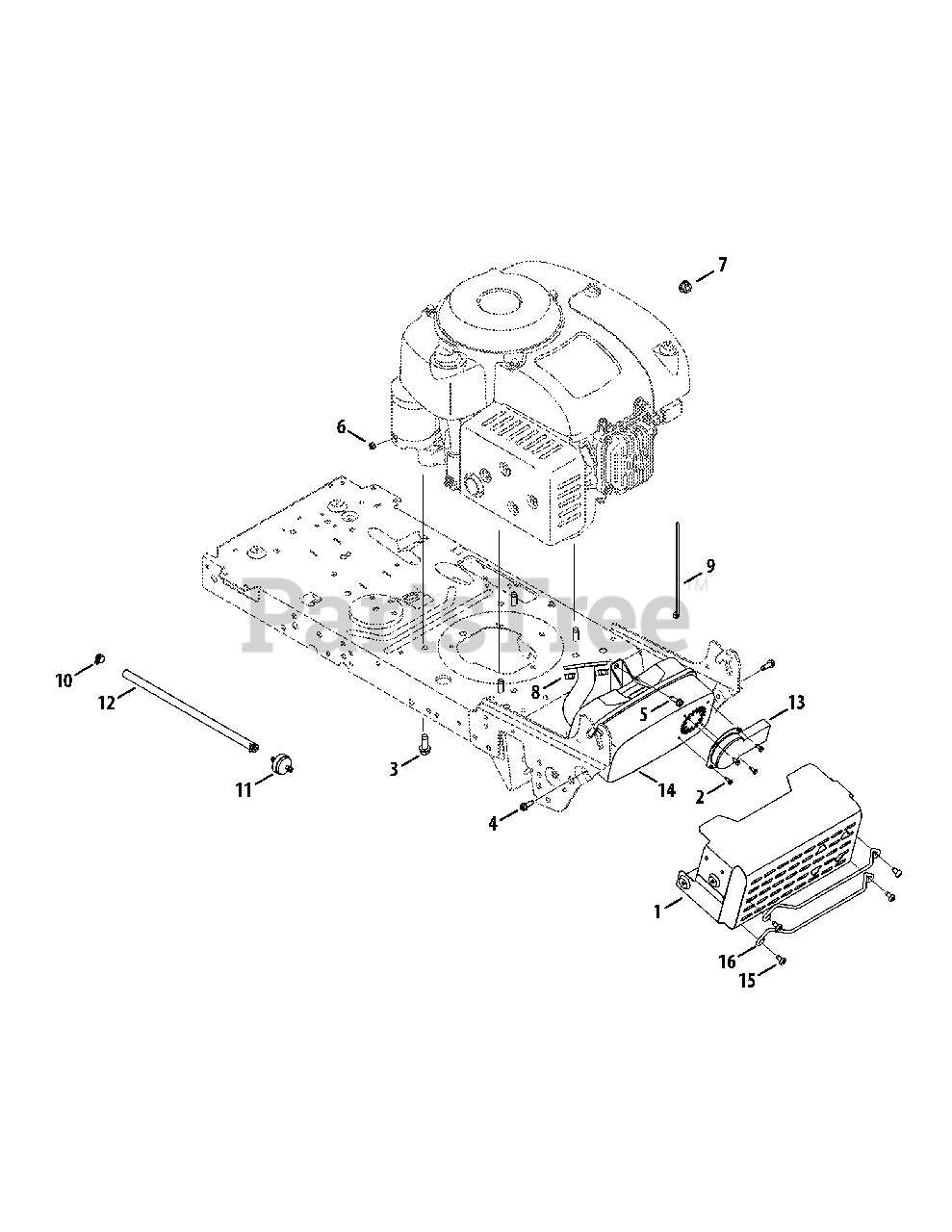

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549A-0606

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683C

Screw, 3/8-16 x 1.0

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 912-0691

Nut, M6-1, Hexlock
(Superseded to 712-0691)

$

$

Not available

7

MTD 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 712-3086

Flange Nut, M8-1.25

$4.49

$

In Stock, only 2 left!

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 18

0

11

MTD BS-298090S

Fuel Filter

$

$

Not available

12

MTD 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

13

MTD 751-11053A

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

14

MTD 751-14585

Muffler, Single Inlet
(Superseded to 951-14585)

$118.99

$

Usually ships in 3-6 days

0

15

MTD 710-05070A

Pan Torx Screw 1/4

$6.99

$

In Stock, Qty 7

0

16

MTD 747-06404A-0637

Muffler Guard Rod

$7.49

$

Usually ships in 3-6 days

0
