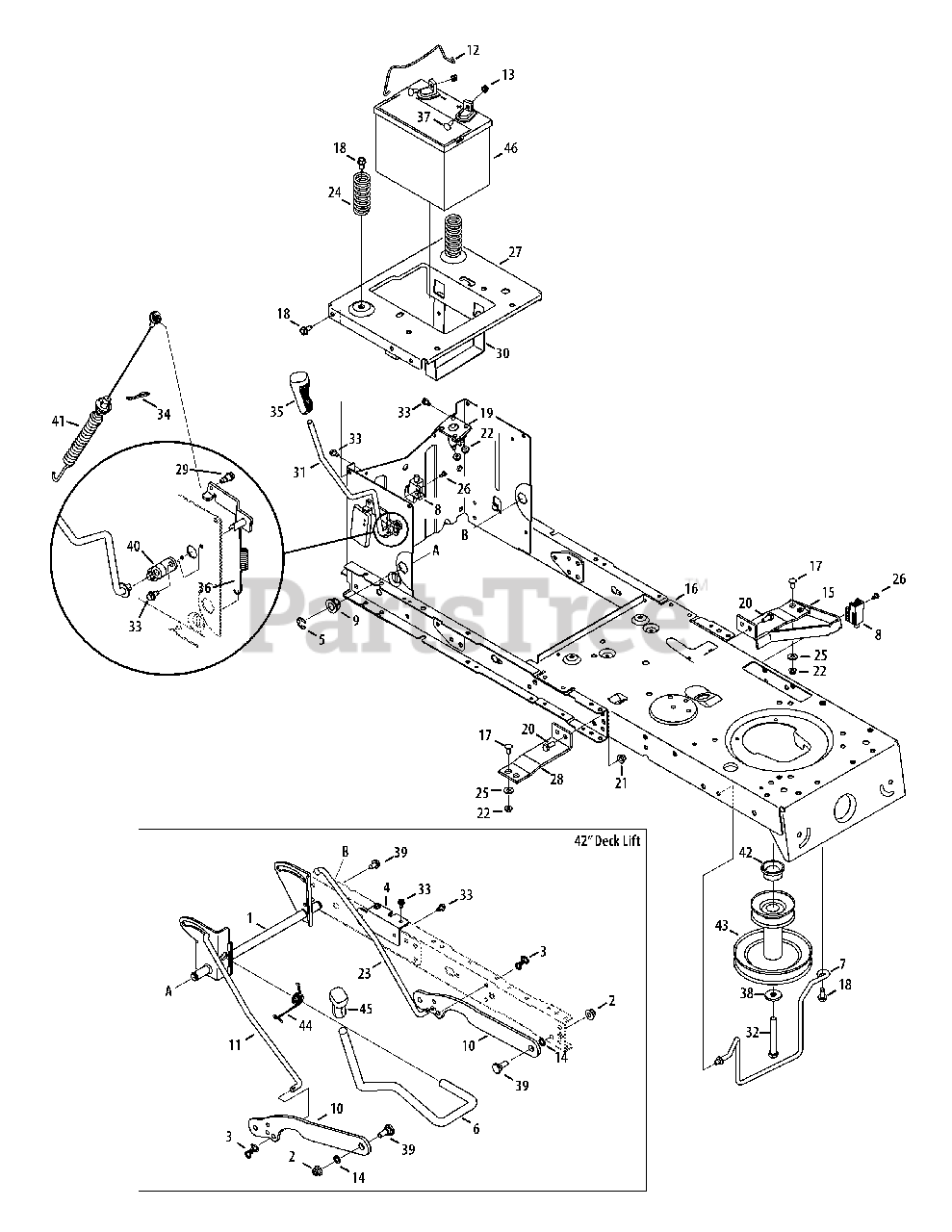

CLT 42 H (13A879KS897) - Columbia 42" Lawn Tractor (2015) Frame and PTO Lift Parts Diagram

42" Lawn Tractor

Frame and PTO Lift Parts Diagram

  • Title

1

MTD 683-04334-0637

Shaft Assembly Lift

$54.99

$

In Stock, only 2 left!

0

2

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 17

0

3

MTD 714-04040

Pin, Cotter, Bow Tie

$1.49

$

In Stock, Qty 20+

0

4

MTD 783-05389A-0637

Frame Brace Bracket

$8.49

$

Usually ships in 3-6 days

0

5

MTD 716-0106A

Ring, E-Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

6

MTD 747-04653A

Deck Handle, Lift, 46" Deck

$45.99

$

In Stock, only 4 left!

0

7

MTD 747-04857

Rod, Belt Keeper

$22.99

$

In Stock, Qty 13

0

8

MTD 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 17

0

9

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

10

MTD 783-0678C-0606

Deck Lift Link
(Superseded to 783-0678C-0637)

$29.99

$

In Stock, only 1 left!

0

11

MTD 747-06237A

Lift Rod, RH

$10.99

$

Usually ships in 3-6 days

0

12

MTD 683-04448-0637

Battery Hold Down Rod

$10.99

$

Usually ships in 3-6 days

0

13

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

14

MTD 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

15

MTD 683-04195-0606

Support Bracket Assembly

$39.99

$

Usually ships in 3-6 days

0

16

MTD 683-05139-0606

Frame Assembly
(Superseded to 683-05139A-0637)

$208.99

$

Usually ships in 3-6 days

0

17

MTD 710-0703

Screw Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

18

MTD 710-04484

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

19

MTD 725-06153

12V Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 8

0

20

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 747-06253

Lift Rod, LH

$10.99

$

In Stock, only 1 left!

0

24

MTD 732-0735A

Compression Spacer, 1.314 x 2.55

$29.99

$

In Stock, Qty 5

0

25

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

26

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

27

MTD 783-04548D-0606

Seat Bracket, Frame

$58.99

$

Usually ships in 3-6 days

0

28

MTD 783-04637-0606

Bracket, Runing Board
(Superseded to 783-04637-0637)

$16.99

$

Usually ships in 3-6 days

0

29

MTD 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$4.49

$

In Stock, Qty 20+

0

30

MTD 783-04869A-0637

Bracket, Battery

$9.49

$

In Stock, Qty 20+

0

31

MTD 647-05041-0637

PTO Handle Assembly

$11.99

$

In Stock, only 1 left!

0

32

MTD 710-3157A

Hex Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

33

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

34

MTD 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

35

MTD 720-04049A

Grip, Handle, 3/8

$16.99

$

In Stock, only 1 left!

0

36

MTD 732-04276A

Spring, Extension

$9.99

$

Usually ships in 3-6 days

0

37

MTD 710-04666

Screw, Carriage, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0

38

MTD 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

39

MTD 938-0380

Bolt, Shldr. .500 x .270 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

40

MTD 741-04119A

Bearing, PTO

$4.99

$

In Stock, Qty 12

0

41

MTD 946-05124A

Deck Engage Cable

$24.99

$

In Stock, only 1 left!

0

42

MTD 750-0956

Spacer, 1.010 x 1.400 x .825

$19.99

$

In Stock, only 2 left!

0

43

MTD 956-04067A

Engine Pulley
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

44

MTD 732-04438

Spring, Torsion 46" Deck

$10.99

$

Usually ships in 3-6 days

0

45

MTD 720-0298

Grip, Handle, 5/8

$43.99

$

Usually ships in 3-6 days

0

46

MTD 925-1707D

Battery

$

$

Not available
