CLT 38 G (13A277KF897) - Columbia 38" Lawn Tractor (2015) Mower Deck 38-Inch Parts Diagram

38" Lawn Tractor

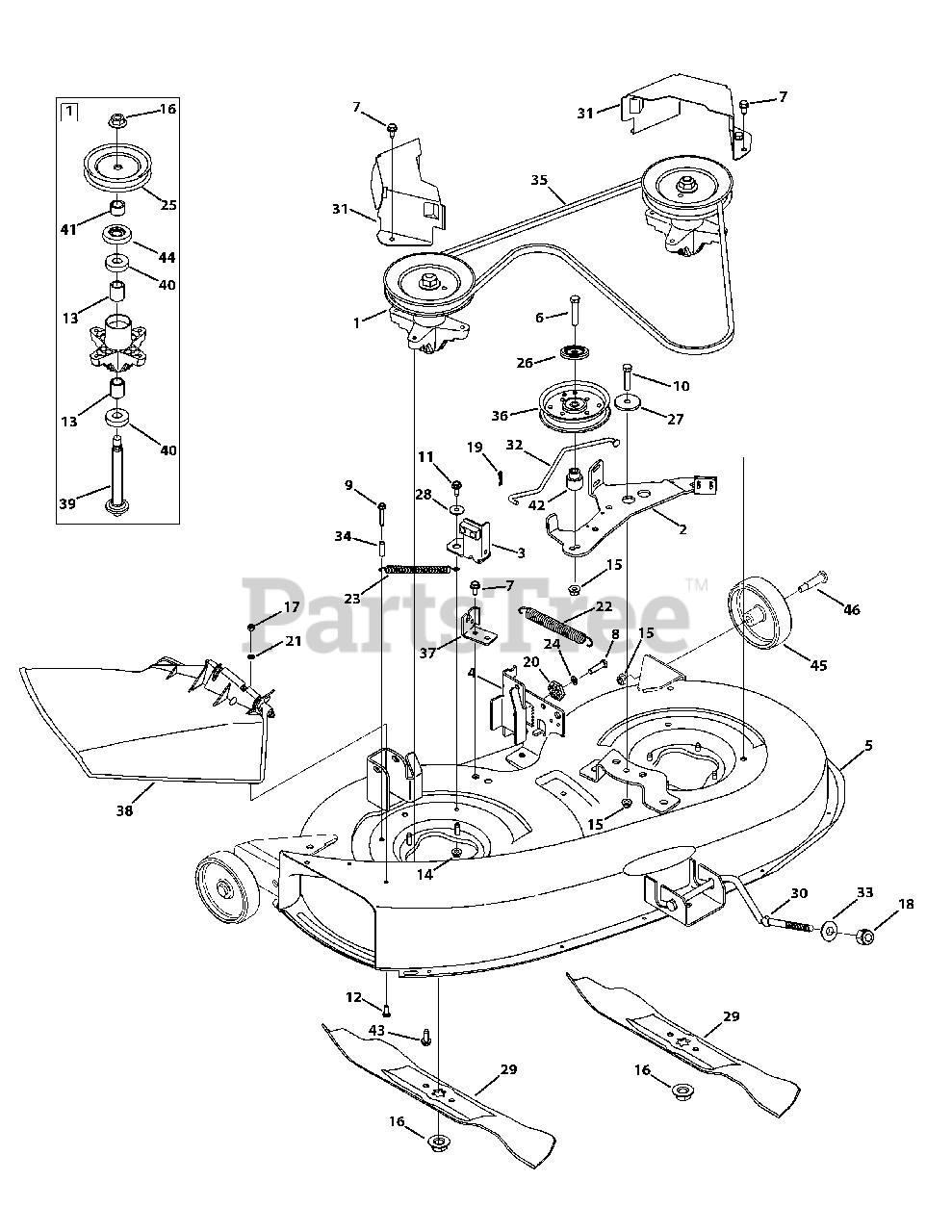

Mower Deck 38-Inch Parts Diagram

  • Title

1

MTD 918-04474B

5.75" Pulley Spindle Assembly

$120.99

$

In Stock, Qty 8

0

2

MTD 683-04138B-0606

Deck Brake Assembly
(Superseded to 683P04138C)

$117.99

$

In Stock, only 1 left!

0

3

MTD 983-04167

Deck Brake Assembly

$47.99

$

In Stock, only 2 left!

0

4

MTD 683-0254B-0606

LH Deck Hanger Bracket
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

MTD 683-04264C-0606

38" Deck
(Superseded to 983-04264C-0606)

$465.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0751

Hex Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

13

MTD 750-1000

Spacer, .80 x 1.10 x 1.322 LG

$4.49

$

In Stock, Qty 7

0

14

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

20

MTD 917-04074

Deck Adjuster Gear

$13.99

$

In Stock, Qty 16

0

21

MTD 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

22

MTD 732-04280B

Extension Spring, .75 x 6.375

$8.49

$

In Stock, only 4 left!

0

23

MTD 732-04287

Extension Spring, .500 x 6.375

$15.99

$

In Stock, only 1 left!

0

24

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

25

MTD 756-05097

Deck Pulley, 5.75

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

27

MTD 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

28

MTD 738-04166

Shoulder Spacer, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

29

MTD 942-0610A

3 in 1 Blade

$26.99

$

In Stock, Qty 20+

0

30

MTD 747-04322

38" Front Adjust Deck Rod

$35.99

$

In Stock, only 1 left!

0

31

MTD 783-04602C-0606

Belt Cover

$30.99

$

Usually ships in 3-6 days

0

32

MTD 747-04381

38" Brake Control Rod

$20.99

$

Usually ships in 3-6 days

0

33

MTD 748-04069

Deck Lift, Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

34

MTD 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

35

MTD 954-04062

V Type Belt

$47.99

$

In Stock, Qty 12

0

36

MTD 756-05042

Idler Pulley

$31.99

$

In Stock, Qty 20+

0

37

MTD 783-04740-0606

Deck Engage Cable Bracket

$10.99

$

Usually ships in 3-6 days

0

38

MTD 631-05193

Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

39

MTD 938-04241

Spindle Shaft, 5.50

$34.99

$

In Stock, only 1 left!

0

40

MTD 941-0919B

Ball Bearing, .787ID x 1.85 OD x .551

$21.99

$

In Stock, Qty 20+

0

41

MTD 750-04739

Spacer, .820 x 1.150 x .480 LG

$13.99

$

In Stock, Qty 6

0

42

MTD 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

43

MTD 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

44

MTD 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

45

MTD 734-0973

Deck Wheel, 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

46

MTD 938-0373

Shoulder Bolt, .496 x 1.525, 3/8-16

$9.49

$

In Stock, Qty 20+

0
