CLT 20460 (7800311) - Murray 46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO (2008) 46" Mower Housing Assembly Parts Diagram

46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO

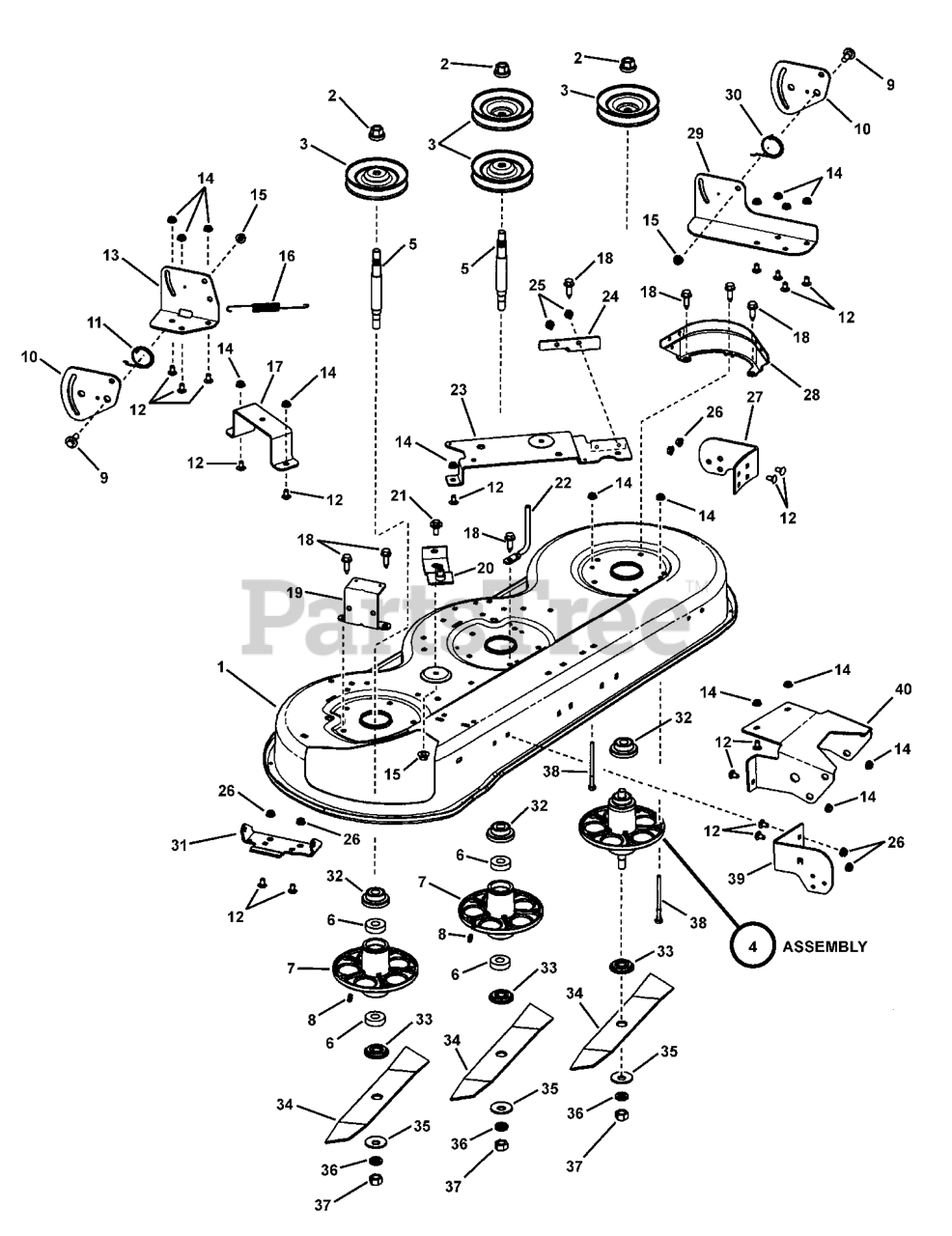

46" Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7300671ZYP

MOWER DECK HOUSING, 46"

$

$

Not available

2

Murray 15X140MA

NUT-NYLOCK RING - PULLEY 9/16-18

$9.99

$

In Stock, Qty 7

0

3

Murray 95309MA

S.S. PULLEY 46"

$

$

Not available

4

Murray 1001200MA

JACKSHAFT HOUSING ASSY

$82.99

$

In Stock, only 3 left!

0

5

Murray 1001195MA

SHAFT, SPLINED
(Superseded to 1001200MA)

Note: (per Jackshaft Housing Assembly)

$82.99

$

In Stock, only 3 left!

0

6

Murray 1001196MA

BALL BEARING, JACKSHAFT
(Superseded to 1705897SM)

Note: (per Jackshaft Housing Assembly)

$8.49

$

In Stock, Qty 20+

0

7

Murray 1001194MA

JACKSHAFT HOUSING
(Superseded to 1001200MA)

Note: (per Jackshaft Housing Assembly)

$82.99

$

In Stock, only 3 left!

0

8

Murray 092530MA

FITTING - LUBRICATION

Note: (per Jackshaft Housing Assembly)

$5.49

$

Usually ships in 2-12 days

0

9

Murray 009X51MA

SHOULDER BOLT, 3/8-16X1.06

$4.99

$

In Stock, only 2 left!

0

10

Murray 7300862ZYP

PLATE SUSPENSION

$27.99

$

Usually ships in 2-12 days

0

11

Murray 166X42MA

SPRING, TORSION RH

$4.99

$

In Stock, Qty 8

0

12

Murray 002X53MA

BOLT CARRIAGE, 5/16-18 X .62
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

13

Murray 7300823ZYP

BRACKET, RIGHT REAR

$25.99

$

Usually ships in 2-12 days

0

14

Murray 015X79MA

HEX NUT, 5/16-18 FLANGE SER YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 165X79MA

SPRING

$6.49

$

In Stock, Qty 5

0

17

Murray 7300944ZYP

BRACKET, BELL CRANK

$27.99

$

Usually ships in 2-12 days

0

18

Murray 0025X7MA

HHST, 3/8-16X1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7300801ZYP

BRACKET, COVER

$12.99

$

Usually ships in 2-12 days

0

20

Murray 7400226ZYP

ASSY- IDLER ARM, 46", RH

$68.99

$

Usually ships in 2-12 days

0

21

Murray 009X39MA

SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

$6.49

$

In Stock, Qty 5

0

22

Murray 091797ZMA

GUIDE, BELT

$20.99

$

Usually ships in 2-12 days

0

23

Murray 7300798ZYP

BRACKET, BRAKE MTG 46

$78.99

$

Usually ships in 2-12 days

0

24

Murray 7300799ZYP

BRACKET, BRAKE PLATE

$38.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

CAPSCREW, 5/16-18

$

$

Not available

26

Murray 015X88MA

NUT, HEX FLANGE LOCK, 5/16-18 NC
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

27

Murray 7300806ZYP

BRACKET, LEFT GAUGE WHEEL

$27.99

$

Usually ships in 2-12 days

0

28

Murray 7300943ZYP

BRACKET, PULLEY COVER

$43.99

$

Usually ships in 2-12 days

0

29

Murray 7300814ZYP

BRACKET, LIFTER LH

$27.99

$

Usually ships in 2-12 days

0

30

Murray 166X43MA

SPRING, TORSION RH

$4.99

$

In Stock, only 2 left!

0

31

Murray 7300811ZYP

BRACKET, HINGE

$49.99

$

Usually ships in 2-12 days

0

32

Murray 1001197MA

SPACER, PULLEY

$12.99

$

In Stock, only 2 left!

0

33

Murray 690411MA

BLADE ADAPTER

$

$

Not available

34

Murray 056631E701MA

BLADE

$19.99

$

In Stock, only 3 left!

0

35

Murray 17X166MA

WASHER, BELLEVILLE 1.0 X .625 X .200

$13.99

$

In Stock, Qty 18

0

36

Murray 17X165MA

WASHER, HARDENED 1.0OD X .625ID X .188

$16.99

$

In Stock, only 4 left!

0

37

Murray 15X100MA

NUT, BLADE, 9/16-18 ZINC PLATE YELLOW CHROMATE

$3.99

$

In Stock, Qty 10

0

38

Murray 091754MA

GUIDE, SCREW (5/16-18)

$16.99

$

Usually ships in 2-12 days

0

39

Murray 7300809ZYP

BRACKET, RIGHT GAUGE WHEEL

$29.99

$

Usually ships in 2-12 days

0

40

Murray 7300920ZYP

BRACKET, FRONT DECK

$56.99

$

Usually ships in 2-12 days

0
