CLT 20460 (7800311) - Murray 46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO (2008) 46" Mower Deck Group Parts Diagram

46" Lawn Tractor, Hydro Drive, 20hp, Manual PTO

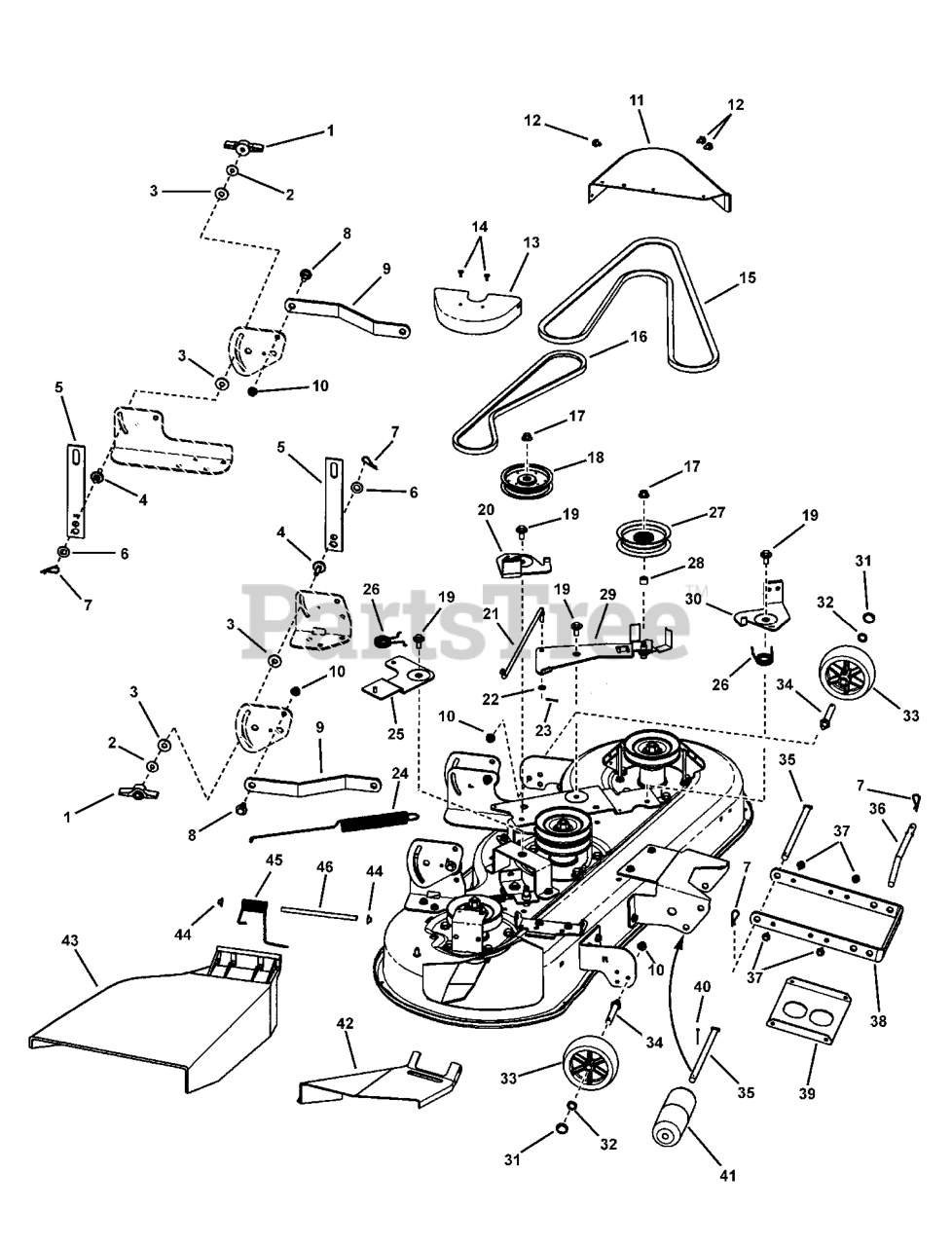

46" Mower Deck Group Parts Diagram

  • Title

1

Murray 094068MA

KNOB, (5/16-18 thread)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

2

Murray 017X45MA

WASHER, FLAT, 1.0 X .328 X 16GA

$

$

Not available

3

Murray 094137MA

FRICTION PAD

$6.99

$

In Stock, Qty 8

0

4

Murray 095194MA

PIN - HANGER 3/8-16 X 1.25

$20.99

$

In Stock, only 1 left!

0

5

Murray 7300921ZYP

LINK, LIFT

$8.99

$

Usually ships in 2-12 days

0

6

Murray 17X103MA

WASHER, FLAT, 1.0"OD X 0.550"

$4.99

$

In Stock, only 2 left!

0

7

Murray 0031X4MA

HAIR PIN, .56D-.092T
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 009X52MA

SHOULDER BOLT, 3/8-16 X .600OD X.95L

$6.49

$

In Stock, only 2 left!

0

9

Murray 7300822ZYP

BRACKET, REAR SUSPENSION

$17.99

$

Usually ships in 2-12 days

0

10

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Murray 7300773ZYP

COVER, LEFT PULLEY

$83.99

$

Usually ships in 2-12 days

0

12

Murray 26X277MA

SCREW

$4.99

$

Usually ships in 2-12 days

0

13

Murray 7300857ZYP

COVER, RIGHT PULLEY

$70.99

$

Usually ships in 2-12 days

0

14

Murray 26X270MA

SCREW, THREAD FORMING 10-24X.340MIN THREADS

$4.49

$

In Stock, Qty 13

0

15

Murray 037X89MA

BELT, PRIMARY 46" (HA, 86.91" E.L.)

Note: was 7101748, (was 037X96MA, HA; 88.30 E. L.)

$49.99

$

Usually ships in 2-12 days

0

16

Murray 037X66MA

BELT, SECONDARY, 46" (HA, 47.10" E.L.)

$24.99

$

In Stock, only 1 left!

0

17

Murray 015X98MA

NUT FLANGE, 3/8-16 ZINC PLATED
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

18

Murray 690549MA

PULLEY, Idler, (4.0 OD, straight edges) R.H. side

$

$

Not available

19

Murray 009X39MA

SHOULDER BOLT, 0.75 X 0.60 X 3/8-16

$6.49

$

In Stock, Qty 6

0

20

Murray 7500566ZYP

BRAKE ASSEMBLY CENTER

$38.99

$

Usually ships in 2-12 days

0

21

Murray 094606ZMA

LINK BELLCRANK

$13.99

$

Usually ships in 2-12 days

0

22

Murray 017X47MA

FW, .34X.62X16GA
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 030X20MA

PIN - COTTER, 0.75 X 0.090
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

24

Murray 165X138MA

SPRING

$15.99

$

In Stock, only 1 left!

0

25

Murray 094603E701MA

BELLCRANK

$55.99

$

Usually ships in 2-12 days

0

26

Murray 166X41MA

SPRING, TORSION BRAKE

$4.99

$

In Stock, only 2 left!

0

27

Murray 690387MA

PULLEY, Idler, (4.0 OD, flared edges) L.H. side

$

$

Not available

28

Murray 690369MA

SPACER, 1/2" TO 17MM

$

$

Not available

29

Murray 7400227ZYP

ASSY - IDLER ARM, 46"
(Superseded to 7400227BMYP)

$149.99

$

Usually ships in 2-12 days

0

30

Murray 7500565ZYP

ASSY - BRAKE LH 46"

$44.99

$

Usually ships in 2-12 days

0

31

Murray 031X11MA

CLIP - HAIR PIN

$4.49

$

In Stock, only 2 left!

0

32

Murray 017X91MA

WASHER, FLAT, .81 X .550 X 16GA

$5.49

$

In Stock, Qty 11

0

33

Murray 092683MA

WHEEL GAGE

$15.99

$

In Stock, only 3 left!

0

34

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

35

Murray 094996MA

ROD, DECK SUSPENSION

$

$

Not available

36

Murray 094158ZMA

ROD, HANGER

$28.99

$

Usually ships in 2-12 days

0

37

Murray 26X249MA

CAPSCREW 5/16-18

$

$

Not available

38

Murray 7300767ZMA

BRACKET, FRONT SUSPENSION

$47.99

$

Usually ships in 2-12 days

0

39

Murray 7300871ZYP

STIFFENER

$22.99

$

Usually ships in 2-12 days

0

40

Murray 030X49MA

COTTER PIN

$4.49

$

In Stock, Qty 11

0

41

Murray 1001252MA

ROLLER

$20.99

$

Usually ships in 2-12 days

0

42

Murray 7300858AYP

DEFLECTOR, INSIDE

$98.99

$

Usually ships in 2-12 days

0

43

Murray 092100MA

DEFLECTOR, CHUTE

$93.99

$

Usually ships in 2-12 days

0

44

Murray 028X23MA

CAP, PUSH ON
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

45

Murray 166X34MA

SPRING - TORSION

$9.49

$

Usually ships in 2-12 days

0

46

Murray 092159ZMA

ROD, DEFLECTOR

$

$

Not available
