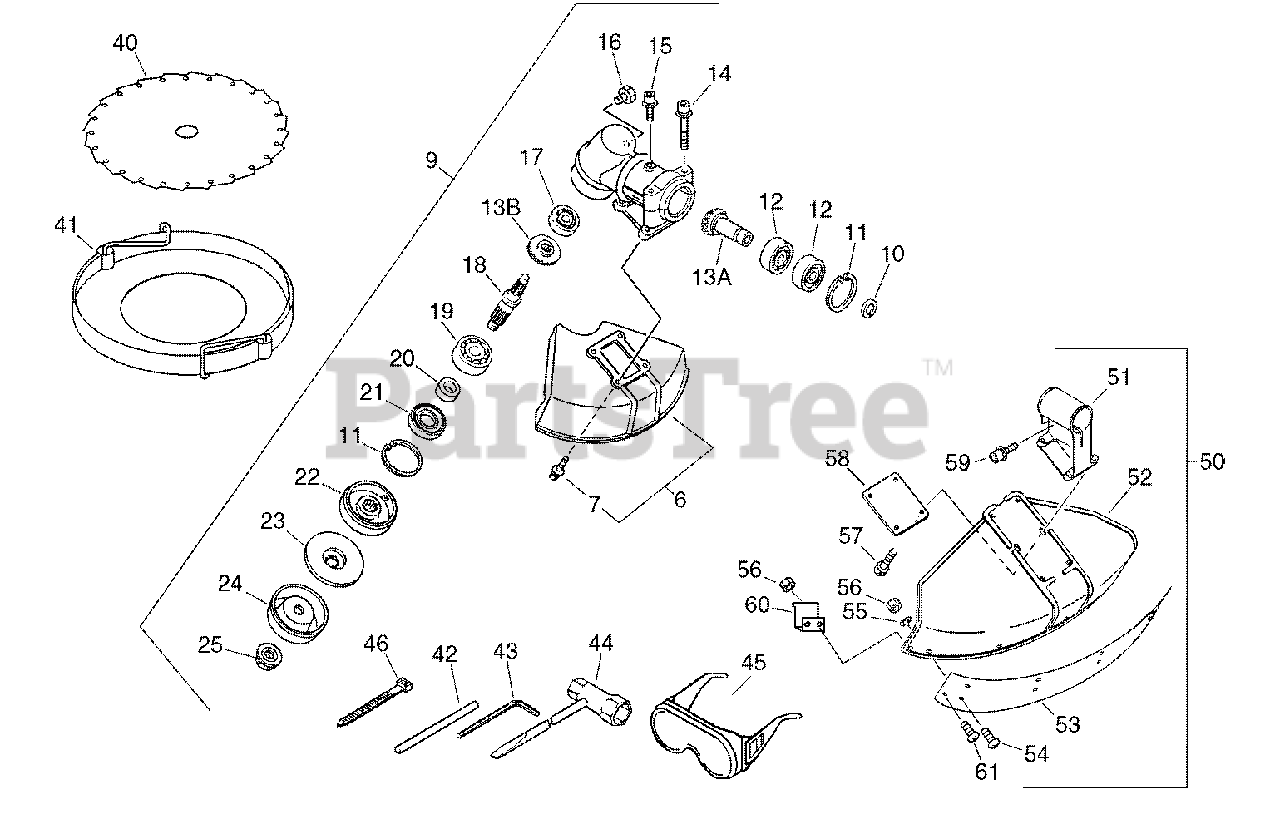

CLS-4610 - Echo Clearing Saw Gear Case, Blade Shield, Tools Parts Diagram

Clearing Saw

Gear Case, Blade Shield, Tools Parts Diagram

  • Title

6

Echo 69900047530

DEBRIS SHIELD KIT
(Superseded to 69900051530)

Note: CLS-4600

$40.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

SCREW - 5X20

Note: CLS-4600

$1.49

$

In Stock, Qty 20+

0

9

Echo 61040051530

GEAR CASE ASSY

$

$

Currently unavailable

10

Echo 90070100015

RING, RETAINING - 15

$1.49

$

In Stock, only 4 left!

0

11

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

12

Echo 90081006202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 8

0

13

Echo 61030047530

GEAR SET

$125.99

$

Usually ships in 2-4 days

0

14

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

15

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

16

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, only 3 left!

0

17

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 6

0

18

Echo 61031051530

GEAR - SHAFT

$62.99

$

Usually ships in 2-4 days

0

19

Echo 90081306202

BEARING, BALL - 6202Z

$10.99

$

Usually ships in 2-4 days

0

20

Echo 61033406230

SPACER, OILSEAL

$9.49

$

Usually ships in 2-4 days

0

21

Echo 61041347530

SEAL, OIL

$5.49

$

Usually ships in 2-4 days

0

22

Echo 61031347530

ADAPTOR, BLADE - UPPER

$19.99

$

Usually ships in 2-4 days

0

23

Echo 61031451530

ADAPTOR, BLADE - LOWER

$14.99

$

Usually ships in 2-4 days

0

24

Echo 61035247530

PLATE, CUP

$11.99

$

In Stock, only 1 left!

0

25

Echo 61032047530

LOCKNUT

$2.49

$

In Stock, Qty 6

0

40

Echo 69500151530

SAW, EIA200-20

Note: CLS-4600

$75.99

$

Usually ships in 2-4 days

0

41

Echo 89850308030

BLADE COVER KIT

Note: CLS-4600

$

$

Currently unavailable

42

Echo 89751801131

LOCKING TOOL

$

$

Not available

43

Echo 89561000130

HEX KEY - 4mm
(Superseded to X605000100)

$1.99

$

In Stock, Qty 7

0

44

Echo 89541008030

T-WRENCH - 17X19mm
(Superseded to X602000020)

$3.49

$

In Stock, Qty 20+

0

45

Echo 89958068730

GOGGLES
(Superseded to 102922051)

$5.99

$

In Stock, only 1 left!

0

46

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

50

Echo 69900054530

DEBRIS SHIELD KIT
(Superseded to P021012700)

Note: CLS-4610

$70.99

$

Usually ships in 2-4 days

0

51

Echo 69901151530

BRACKET, SHIELD

Note: CLS-4610

$29.99

$

Usually ships in 2-4 days

0

52

Echo 69901054430

SHIELD, DEBRIS

Note: CLS-4610

$48.99

$

Usually ships in 2-4 days

0

53

Echo 69901352130

GUARD, SHIELD

Note: CLS-4610

$17.99

$

Usually ships in 2-4 days

0

54

Echo 90016205014

SCREW - 5X14

Note: CLS-4610

$1.49

$

In Stock, Qty 20+

0

55

Echo 90060300005

WASHER - 5

Note: CLS-4610

$0.99

$

In Stock, Qty 20+

0

56

Echo 90050000005

NUT - 5

Note: CLS-4610

$0.99

$

In Stock, Qty 20+

0

57

Echo 90016205018

SCREW - 5X18

Note: CLS-4610

$0.99

$

In Stock, Qty 9

0

58

Echo 69901552130

BRACKET, SHIELD

Note: CLS-4610

$11.99

$

Usually ships in 2-4 days

0

59

Echo 90016205025

SCREW - 5X25

Note: CLS-4610

$0.99

$

In Stock, Qty 20+

0

60

Echo 69901654530

KNIFE, TRIMMER LINE

Note: CLS-4610

$22.99

$

Usually ships in 2-4 days

0

61

Echo 90016205012

SCREW - 5X12

Note: CLS-4610

$0.99

$

In Stock, Qty 20+

0
