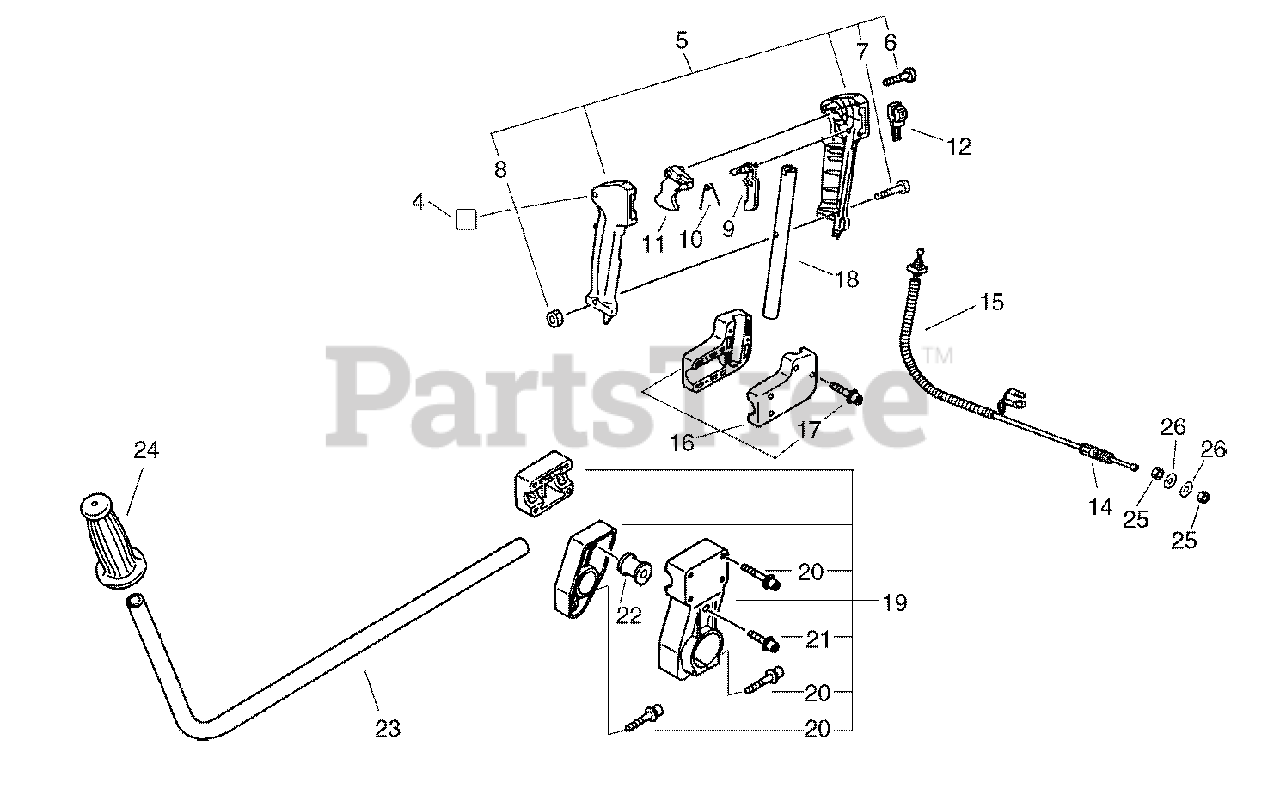

CLS-4600 - Echo Clearing Saw Handle Parts Diagram

Clearing Saw

Handle Parts Diagram

  • Title

4

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

$2.49

$

Usually ships in 2-4 days

0

5

Echo 35110247530

FRONT HANDLE GRIP ASSY

$34.99

$

In Stock, only 1 left!

0

6

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

10

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

11

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

12

Echo 16340048030

IGNITION SWITCH ASSY
(Superseded to A440000310)

$10.99

$

Usually ships in 2-4 days

0

14

Echo 17800147530

CABLE, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

15

Echo 17812747530

TUBE
(Superseded to V475000000)

$5.49

$

Usually ships in 2-4 days

0

16

Echo 35130247530

BRACKET, HANDLE
(Superseded to P021012730)

$44.99

$

Usually ships in 2-4 days

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 351210^7530

HANDLE - REAR

$

$

Currently unavailable

19

Echo 351301^7531

BRACKET, HANDLE

$

$

Currently unavailable

20

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

21

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

22

Echo 10091021860

CUSHION

$19.99

$

Usually ships in 2-4 days

0

23

Echo 35111047530

HANDLE - LEFT

$24.99

$

Usually ships in 2-4 days

0

23

Echo 35111054430

HANDLE - FRONT

$46.99

$

Usually ships in 2-4 days

0

24

Echo 35121347530

GRIP, HANDLE
(Superseded to 35121347531)

$12.99

$

Usually ships in 2-4 days

0

25

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

26

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0
