Echo CLM-58V (107944001) - Echo Lawn Mower, 58V Battery, Revision 11 (2018-11) General Assembly Parts Lookup with Diagrams

1

Echo 662224001

Cap Nut

$1.49

$

In Stock, Qty 7

2

Echo 330034001

Wheel Assembly

$15.99

$

In Stock, only 2 left!

3

Echo 660969001

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 2-4 days

4

Echo 636197001

Spring Washer (OD15 x ID8.4 x 0.8t)

$1.49

$

Usually ships in 2-4 days

5

Echo 636938001

Cutting Height Adjustment Lever

$3.99

$

In Stock, only 1 left!

6

Echo 528301001

Height Adjustment Knob

$1.49

$

Usually ships in 2-4 days

7

Echo 694468001

Adjustment Axle Plate (Right Front and Left Rear)

$7.49

$

Usually ships in 2-4 days

8

Echo 694470001

Front Collar (Deck)

$1.49

$

Usually ships in 2-4 days

9

Echo 636233001

Washer (OD20.5 x ID8.5 x 2t)

$1.49

$

Usually ships in 2-4 days

10

Echo 678774012

Flange Nut (M8)

$1.49

$

Usually ships in 2-4 days

11

Echo 528281001

DECK

$178.99

$

Usually ships in 2-4 days

12

Echo 694469001

Adjustment Axle Plate (Right Rear and Left Front)

$7.49

$

In Stock, only 1 left!

13

Echo 639120001

Bushing (Motor Axle)

$3.99

$

In Stock, only 2 left!

14

Echo 526921002

Blade Holder

$1.49

$

In Stock, only 4 left!

15

Echo 681938001

BLADE

$

Currently unavailable 

16

Echo 526920001

Spacer (Plastic)

$1.49

$

In Stock, only 3 left!

17

Echo 639118001

Blade Retainer

$1.49

$

In Stock, only 1 left!

18

Echo 679075001

Hex Nut (M10)

$1.49

$

Usually ships in 2-4 days

19

Echo 638557001

Washer (OD15 x ID6.2 x .08t)

$1.49

$

Usually ships in 2-4 days

20

Echo 660722002

Screw (M6 x 26 mm)

$1.49

$

Usually ships in 2-4 days

21

Echo 528305001

Discharge Baffle

$18.99

$

Usually ships in 2-4 days

22

Echo 662294001

Screw (1/4-15 x 17 mm, T30 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

23

Echo 661864007

Screw (M4 x 18 mm Torx Hd.)

$1.49

$

In Stock, only 4 left!

24

Echo 528308002

Motor Cover (Upper)

(Superseded to 205503001) 

$23.99

$

Usually ships in 2-4 days

25

Echo 280609001

Control Panel Assembly

$87.99

$

Usually ships in 2-4 days

26

Echo 660206047

Screw (M3.5 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

27

Echo 311387001

Rivet Assembly (Male and Female Set)

$1.49

$

In Stock, Qty 5

28

Echo 770506002

Lead Wire (185 mm, Yellow)

$1.49

$

Usually ships in 2-4 days

29

Echo 528399001

Battery Cover (Upper Lid)

$2.99

$

Usually ships in 2-4 days

30

Echo 307562001

Start Key Assembly

$2.49

$

Usually ships in 2-4 days

31

Echo 661830001

Screw (1/4-15 x 1-1/4 in., T30 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

32

Echo 660208104

Screw (M4 x 30 mm)

$1.49

$

Usually ships in 2-4 days

33

Echo 311388001

Key Housing Assembly

$1.49

$

Usually ships in 2-4 days

34

Echo 291390001

Pin Socket Assembly

$6.99

$

Usually ships in 2-4 days

35

Echo 760689007

Switch (On/Off)

$2.49

$

In Stock, only 4 left!

36

Echo 941641001

No Hands or Feet Label/CPSC Label

$1.49

$

Usually ships in 2-4 days

37

Echo 660608002

Screw (M4 x 16 mm)

$1.49

$

Usually ships in 2-4 days

38

Echo 660203087

Screw (M3 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

39

Echo 311391001

Battery Release Button and Retainer Assembly

$1.49

$

Usually ships in 2-4 days

40

Echo 940851048

Front Cover Label

$1.49

$

Usually ships in 2-4 days

41

Echo 621762001

Battery Latch

$1.49

$

Usually ships in 2-4 days

42

Echo 528285001

Battery Release Latch

$1.49

$

Usually ships in 2-4 days

43

Echo 528287001

Battery Carriage

$3.49

$

Usually ships in 2-4 days

44

Echo 694464001

Compression Spring

$1.49

$

Usually ships in 2-4 days

45

Echo 528290003

Battery Contact Assembly

$3.49

$

Usually ships in 2-4 days

46

Echo 940705267

Logo Label

$1.49

$

Usually ships in 2-4 days

47

Echo 694463001

Torsion Spring

$1.49

$

Usually ships in 2-4 days

48

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, Qty 8

49

Echo 513211001

Cord Clamp

$6.49

$

Usually ships in 2-4 days

50

Echo 638387002

Washer (1/4 in.)

$1.49

$

Usually ships in 2-4 days

51

Echo 637604002

Handle Adjustment Mount (Right)

$18.99

$

Usually ships in 2-4 days

52

Echo 664004001

Screw (1/4-15 x 3/4 in., T30 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

53

Echo 528309001

Motor Cover (Center)

$11.99

$

Usually ships in 2-4 days

54

Echo 528310001

Motor Cover (Lower)

$4.99

$

Usually ships in 2-4 days

55

Echo 742150001

MOTOR

$183.99

$

Usually ships in 2-4 days

56

Echo 680196006

Hex Nut (M6)

$1.49

$

Usually ships in 2-4 days

57

Echo 678880001

E-RING

$1.49

$

Usually ships in 2-4 days

58

Echo 621764001

Axle (Rear Door)

$3.49

$

Usually ships in 2-4 days

59

Echo 528283001

REAR GUARD

$11.99

$

In Stock, only 3 left!

60

Echo 636232001

Bracket (Rear Guard)

$0.99

$

Usually ships in 2-4 days

61

Echo 636198001

Handle Adjustment Mount (Left)

$14.99

$

Usually ships in 2-4 days

62

Echo 528362001

Deck Handle

$2.99

$

Usually ships in 2-4 days

63

Echo 311389001

Switch Cover and Housing Assembly

$2.99

$

Usually ships in 2-4 days

64

Echo 662240001

Screw (M3 x 12 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

65

Echo 528282001

Rear Door

$6.99

$

Usually ships in 2-4 days

66

Echo 694467001

Compression Spring (Rear Door)

$1.49

$

Usually ships in 2-4 days

67

Echo 528754001

End Cap

$1.49

$

Usually ships in 2-4 days

68

Echo 662162001

Screw (M8.0 x 18 mm, T40 Torx Hd.)

$1.49

$

Usually ships in 2-4 days

69

Echo 673441001

Spring Pin (11 mm)

$1.49

$

In Stock, Qty 10

70

Echo 528361001

Spring Pin Adjustment Knob

$1.49

$

In Stock, Qty 18

71

Echo 694460001

LOWER HANDLE

(Superseded to 694460002) 

$26.99

$

Usually ships in 2-4 days

Echo 694460002

Lower Handle (Serial Number After and Including EU18152N020001, 4.11.18)

$26.99

$

Usually ships in 2-4 days

72

Echo 528311002

Cord Clamp

$1.49

$

In Stock, only 3 left!

Echo 532410001

Cord Clamp (Serial Number After and Including EU18152N020001, 4.11.18)

$1.49

$

Usually ships in 2-4 days

73

Echo 694489001

Spring Pin (Housing)

$1.49

$

In Stock, Qty 16

74

Echo 694490001

Compression Spring

$1.49

$

In Stock, Qty 20+

75

Echo 673323001

Detent Pin

$1.49

$

In Stock, Qty 10

76

Echo 528360001

Wing Nut w/Insert

$1.49

$

In Stock, only 2 left!

77

Echo 307544002

Upper Handle Assembly

$

Currently unavailable 

Echo 307544001

Upper Handle Assembly (Serial Number After and Including EU18152N020001, 4.11.18)

$23.99

$

Usually ships in 2-4 days

78

Echo 662104001

Screw (M8 x 57 mm)

$1.49

$

In Stock, only 2 left!

79

Echo 291358001

Wire Assembly

(Superseded to 291358002) 

$15.99

$

Usually ships in 2-4 days

Echo 291358002

Wire Assembly (Serial Number After and Including EU18152N020001, 4.11.18)

$15.99

$

Usually ships in 2-4 days

80

Echo 940851032

Start Key Warning Label

$1.49

$

Usually ships in 2-4 days

81

Echo 311390001

Spring Holder and Button Assembly

$1.49

$

Usually ships in 2-4 days

82

Echo 307950001

Trigger Assembly

$3.49

$

Usually ships in 2-4 days

83

Echo 694218001

SPRING

$1.49

$

Usually ships in 2-4 days

84

Echo 940657150

"Power-Adapt" Label

$1.49

$

Usually ships in 2-4 days

85

Echo 694475001

Compression Spring

$1.49

$

Usually ships in 2-4 days

86

Echo 940657149

Data Label

$1.49

$

Usually ships in 2-4 days

87

Echo 940851031

Quick Start Label

$1.49

$

Usually ships in 2-4 days

88

Echo 694473001

Frame (Grass Bag)

$23.99

$

Usually ships in 2-4 days

89

Echo 970687001

Grass Bag Assembly

$41.99

$

Usually ships in 2-4 days

90

Echo 636668001

Washer (ID8.5 x OD20.5 x 3t)

$1.49

$

Usually ships in 2-4 days

91

Echo 636095001

Wavy Washer (ID13.7 x OD19.2)

$1.49

$

Usually ships in 2-4 days

92

Echo 661817001

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

93

Echo 528306001

Mulching Plug

$7.99

$

Usually ships in 2-4 days

94

Echo 760961002

Switch (Serial Number Before EU18131, 3.26.18)

$1.99

$

Usually ships in 2-4 days

Echo 760584003

SWITCH

$1.99

$

Usually ships in 2-4 days

95

Echo 790055001

Cable Tie

$1.49

$

Usually ships in 2-4 days

96

Echo 940657148

Warning Icon Label

$1.49

$

Usually ships in 2-4 days

97

Echo 660203059

Screw (M3 x 20 mm)

$1.49

$

Usually ships in 2-4 days

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: Not Shown

$

Currently unavailable 

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

Note: Not Shown

$

Currently unavailable 

Echo 140330001

58V Charger (CBC-58V, Not Included)

Note: Not Shown

$

Currently unavailable 

Echo 991000236

Operator's Manual (ECHO #99922205194)

Note: Not Shown

$

Currently unavailable 

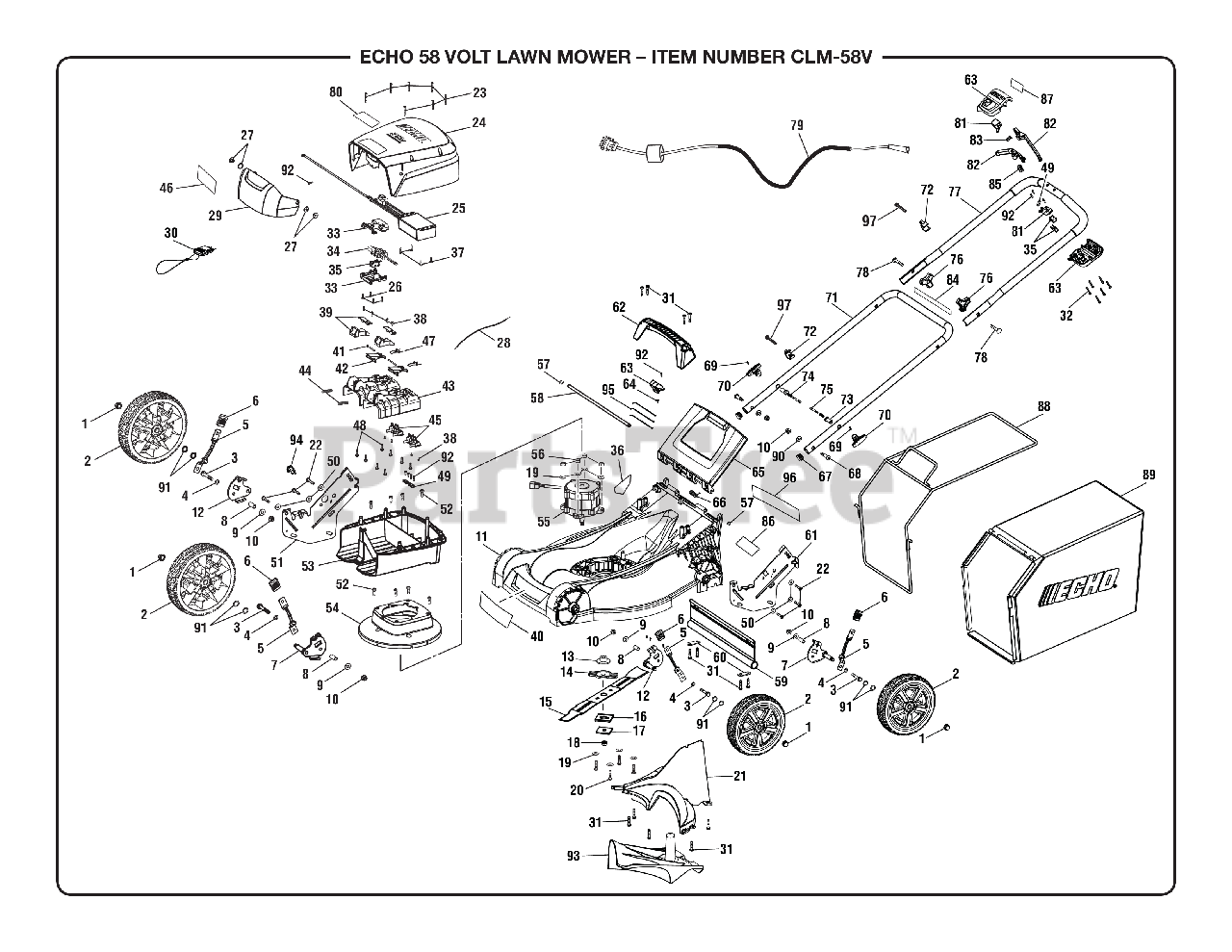

CLM-58V (107944001) - Echo Lawn Mower, 58V Battery, Revision 11 (2018-11) General Assembly Parts Diagram

General Assembly Parts Diagram
