CL 600 (59A40126727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Cylinder Parts Diagram

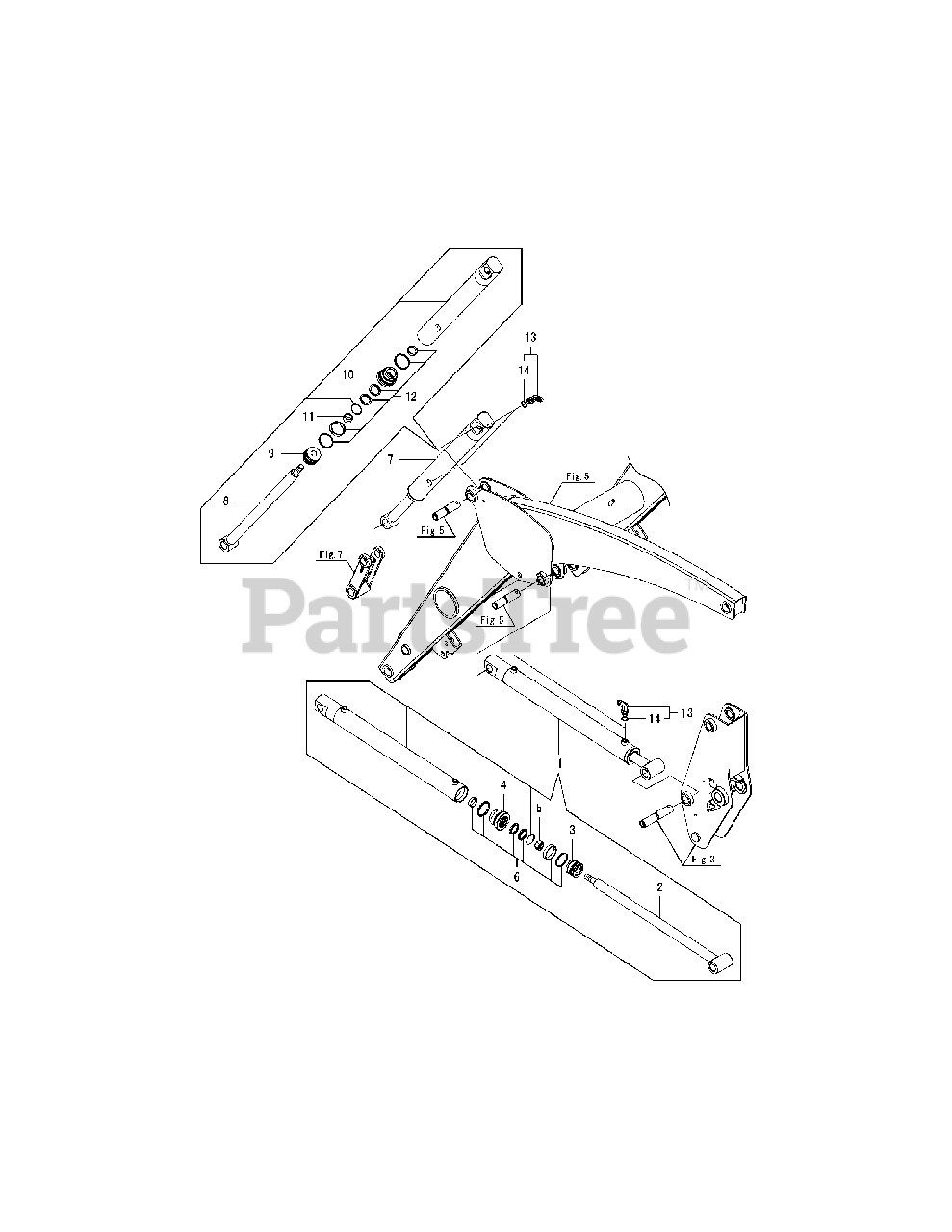

Tractor Curved Boom Loader Attachment

Cylinder Parts Diagram

  • Title
1

Cub Cadet CY-1TN323-38100

LIFT CYLINDER ASSY

$

$

Not available

2

Cub Cadet CY-1TN323-38110

WELDED ROD CPL, LIFT

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

5

Cub Cadet CY-1TN323-38340

SELF LOCKING NUT

$

$

Currently unavailable

$

$

Currently unavailable

7

Cub Cadet CY-1TN323-38200

DUMP CYLINDER ASSY

$

$

Not available

8

Cub Cadet CY-1TN323-38210

WELDED ROD CPL, DUMP

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

11

Cub Cadet CY-1TN323-38340

SELF LOCKING NUT

$

$

Currently unavailable

$

$

Currently unavailable

13

Cub Cadet CY-1TN322-38910

JOINT,90SAE9/16-18

$

$

Not available

14

Cub Cadet CY-1TN322-38930

PACKING, JOINT

$

$

Not available

Fig.3

Refers to Support Frame page

$

$

Not available

Fig.5

Refers to Boom page

$

$

Not available

Fig.7

Refers to Dump Link page

$

$

Not available
