CL 46 B (954040606) - Husqvarna Grass Catcher (1997) General Assembly Parts Diagram

Grass Catcher

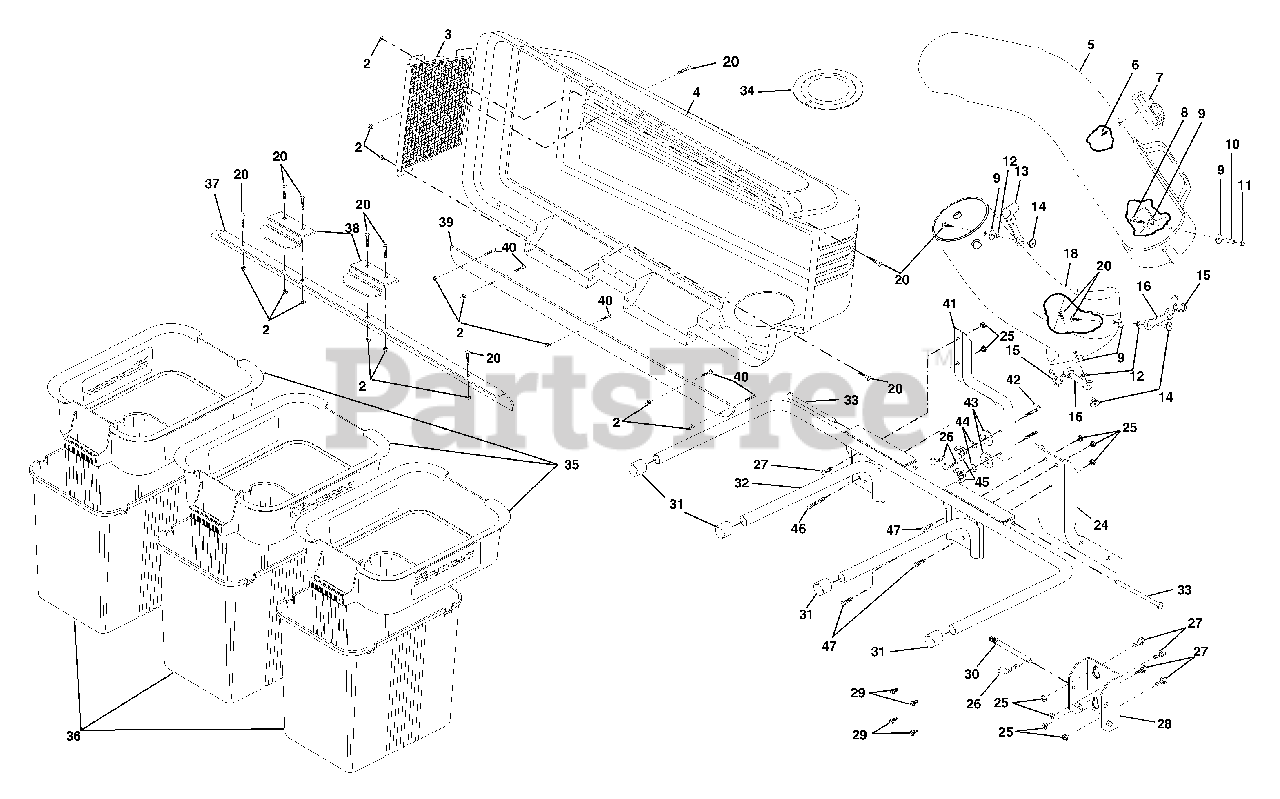

General Assembly Parts Diagram

  • Title

2

Electrolux/AYP 532069180

Nut, Crownlock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532127533

Screen, Cover

$20.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532139850

Cover Assembly
(Superseded to 532400436)

Note: (Includes 3, 37, 38, 39)

$279.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532126840

Chute, Upper

$120.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 818021008

Screw, Special #10-14x1/2

$

$

Not available

7

Electrolux/AYP 532140572

Dump Bag Indicator

$8.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532087175

Screw, #10-24 x 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

9

Electrolux/AYP 819061216

Washer 3/16x3/4x16 Ga.

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 532007206

Spacer, Split

$7.49

$

In Stock, Qty 18

0

11

Electrolux/AYP 532060867

Nut, Acorn #10-24
(Superseded to 60867)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 810071000

Washer, lock

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532109808

Latch, Chute

$6.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532130760

Latch, Hook
(Superseded to 532160793)

$

$

Not available

16

Electrolux/AYP 532130759

Rubber, Latch
(Superseded to 532160793)

$

$

Not available

18

Electrolux/AYP 532145578

Chute, Lower

$

$

Not available

20

Electrolux/AYP 871161010

Screw #10-24 x 5/8
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532126813

Post, Support
(Superseded to 532180925)

$40.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532063124

Locknut 5/16 x 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 532124670

Spring, Retainer
(Superseded to 532085902)

$

$

Not available

27

Electrolux/AYP 874760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532170053

Bracket, Mounting

$

$

Not available

29

Electrolux/AYP 532170165

Shoulder Bolt,Self Tapping

$4.99

$

In Stock, Qty 7

0

30

Electrolux/AYP 532131137

Pin, Support Post

$13.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 532174083

Plug, Tubing End

$7.49

$

In Stock, Qty 8

0

32

Electrolux/AYP 532134639

Bagger, Frame

$

$

Not available

33

Electrolux/AYP 532128600

Pin, Hinge
(Superseded to 532192786)

$20.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532127534

Gasket, Cover

$20.99

$

In Stock, Qty 10

0

35

Electrolux/AYP 532183286

Container, Top

$51.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532129586

Container, Bottom

$80.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532134637

Seal, Cover

$

$

Not available

38

Electrolux/AYP 532130895

Latch Handle, Cover

$7.49

$

In Stock, only 2 left!

0

39

Electrolux/AYP 532186601

Strip, Reinforcement
(Superseded to 186601X479)

$

$

Not available

40

Electrolux/AYP 871141008

Screw #10-24 x 1/2

$

$

Not available

41

Electrolux/AYP 532156006

Bagger, Support Tube

$60.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532145186

Reinforcement Plate

$

$

Not available

43

Electrolux/AYP 819112410

Washer 11/32x1.5x10 Ga.

$6.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 810040500

Washer, lock

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532128638

Nut, Wing

$7.49

$

In Stock, only 3 left!

0

46

Electrolux/AYP 874760536

Bolt, Hex 5/16-18 x 2-1/4

$3.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 872110506

Carriage Bolt 5/16-18 x 3/4

$7.49

$

In Stock, Qty 9

0

Electrolux/AYP 532156239

Owner's Manual

$

$

Not available
