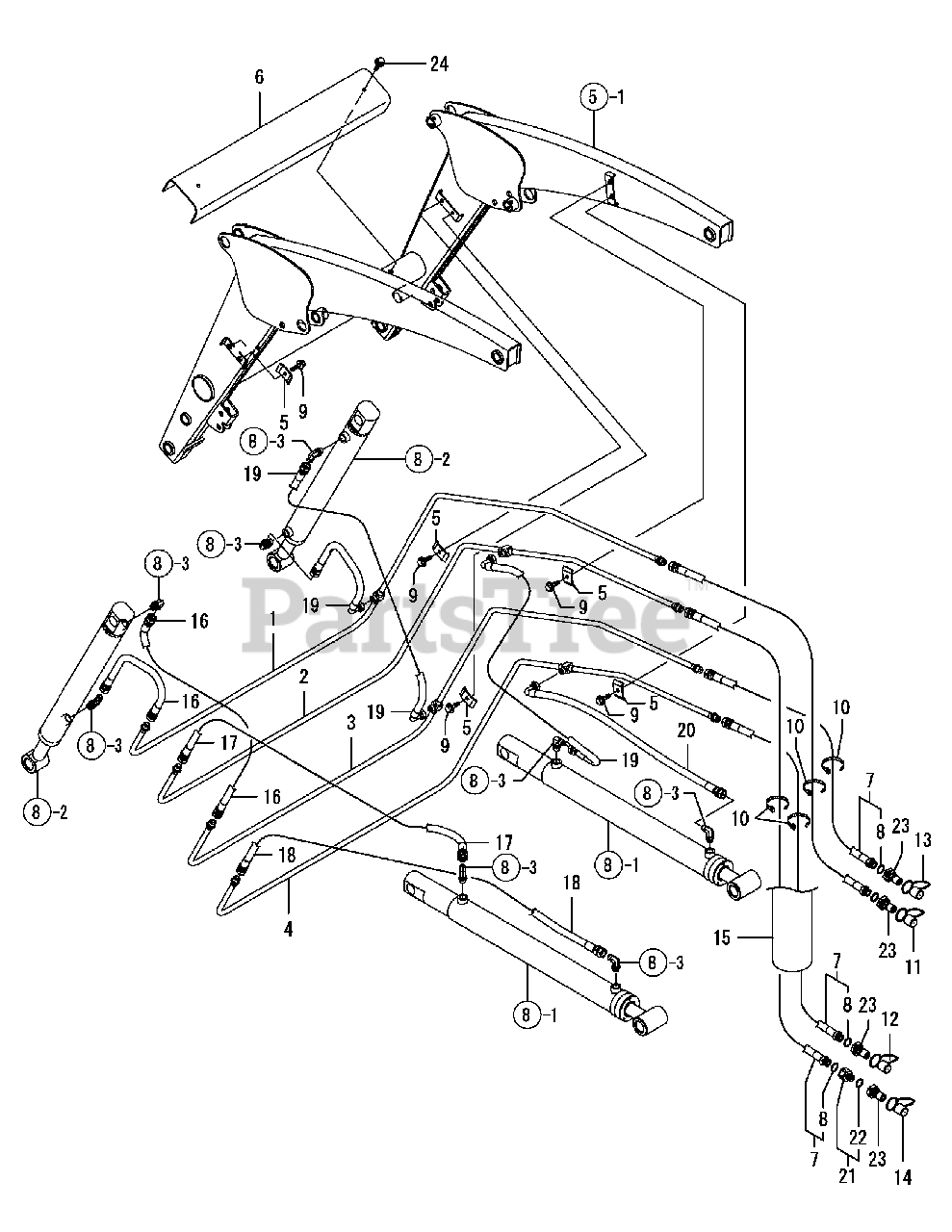

CL 400 (59A40066727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Hydraulic Piping Parts Diagram

Tractor Curved Boom Loader Attachment

Hydraulic Piping Parts Diagram

  • Title

1

Cub Cadet CY-1TN322-41100

HP PIPE, TILT CMP

$

$

Not available

2

Cub Cadet CY-1TN322-41200

HP PIPE, UP CMP

$

$

Not available

3

Cub Cadet CY-1TN322-41300

HP PIPE, DUMP CMP

$

$

Not available

4

Cub Cadet CY-1TN322-41400

HP PIPE, DOWN CMP

$

$

Not available

5

Cub Cadet CY-1TN322-41550

COVER, CLANP

$

$

Not available

6

Cub Cadet CY-1TN322-41510

COVER, PIPE

$

$

Not available

7

Cub Cadet CY-1TN322-41710

HP HOSE,INTAKE RED

$

$

Not available

8

Cub Cadet CY-194464-45930

PACKING, 8-1

$

$

Not available

9

Cub Cadet CY-26106-080302

BOLT, 8 X 30

$

$

Not available

10

Cub Cadet CY-29622-250001

BAND, 250

$

$

Not available

11

Cub Cadet CY-1TN322-41750

DUST PLUG,M RED

$

$

Not available

12

Cub Cadet CY-1TN322-41760

DUST PLUG,M BLUE

$

$

Not available

13

Cub Cadet CY-1TN322-41770

DUST PLUG,M YELLOW

$

$

Not available

14

Cub Cadet CY-1TN322-41780

DUST PLUG,M GREEN

$

$

Not available

15

Cub Cadet CY-1TN322-41790

COVER,HOSE INTAKE

$

$

Not available

16

Cub Cadet CY-1TN322-41810

HP HOSE 3/8-500 CMP

$

$

Not available

17

Cub Cadet CY-1TN322-41830

HP HOSE 3/8-650 CMP

$

$

Not available

18

Cub Cadet CY-1TN322-41850

HP HOSE 3/8-1100 CMP

$

$

Not available

19

Cub Cadet CY-1TN322-41870

HP HOSE,R-F 500 CMP

$

$

Not available

20

Cub Cadet CY-1TN322-41890

HP HOSE,R-F 650 CMP

$

$

Not available

21

Cub Cadet CY-1TN322-41970

FITTING,ORIFICE

$

$

Not available

22

Cub Cadet CY-194464-45930

PACKING, 8-1

$

$

Not available

23

Cub Cadet CY-1A8160-48820

COUPLER,QUICK 3/8M

$

$

Not available

24

Cub Cadet CY-26106-080162

BOLT M 8X 16 PLATED

$

$

Not available

Note:5-1 Refers to LIFT ARM, Ref No. 1

$

$

Not available

Note:8-1 Refers to CYLINDER, Ref No. 1

$

$

Not available

Note:8-2 Refers to CYLINDER, Ref No. 2

$

$

Not available

Note:8-3 Refers to CYLINDER, Ref No. 3

$

$

Not available
