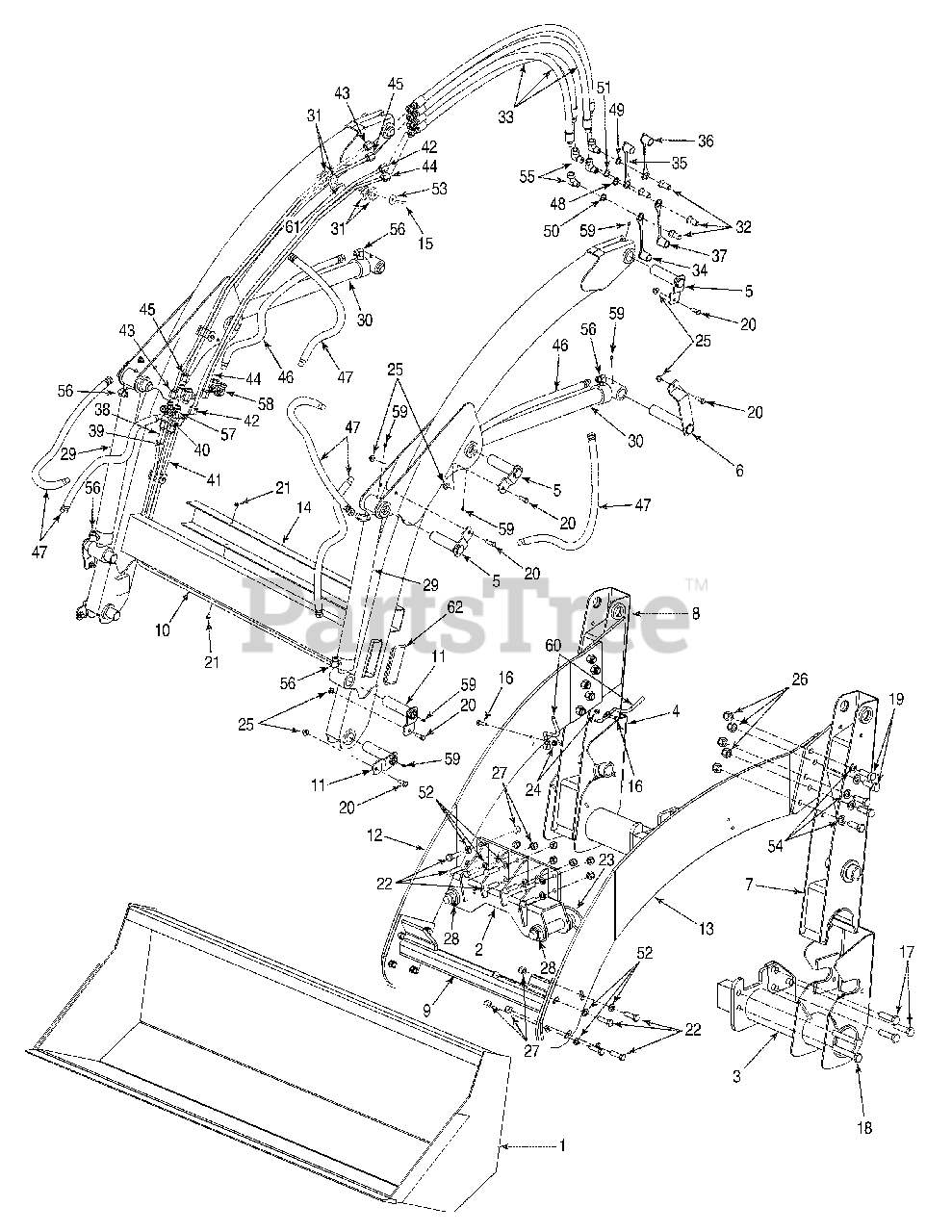

CL 300 (59A40003727) - Cub Cadet Yanmar Tractor Curved Boom Loader General Assembly 2008 & Before Parts Diagram

Tractor Curved Boom Loader

General Assembly 2008 & Before Parts Diagram

  • Title

1

Cub Cadet YS-603-04399

Bucket, Loader

$

$

Not available

2

Cub Cadet YS-603-04402

Receiver, Front Mount

$

$

Not available

3

Cub Cadet YS-603-04403

Mount, LH

$

$

Not available

4

Cub Cadet YS-603-04404

Mount, RH

$

$

Not available

5

Cub Cadet YS-603-04405

Pin, Loader

$

$

Not available

6

Cub Cadet YS-603-04407

Pin, Pivot

$

$

Not available

7

Cub Cadet YS-603-04408

Mast, Vertical Support LH

$

$

Not available

8

Cub Cadet YS-603-04409

Mast, Vertical Support RH

$

$

Not available

9

Cub Cadet YS-603-04411

Bracket, Loader Hitch

$

$

Not available

10

Cub Cadet YS-603-04431

Boom Assembly
(Superseded to 603-04431A-0691)

$

$

Not available

11

Cub Cadet YS-603-04444

Pin, Hollow

$

$

Not available

12

Cub Cadet YS-703-06067

Arm, Loader Hitch LH

$

$

Not available

13

Cub Cadet YS-703-06116

Arm, Loader Hitch RH

$

$

Not available

14

Cub Cadet YS-703-06212

Bracket, Tube Cover

$

$

Not available

15

Cub Cadet YS-710-0106

Screw, Hex Cap, 1/4-20 x 1.25 Gr5
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

16

Cub Cadet YS-710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet YS-710-04700

Screw, Hex Cap, M16-20 x 60
(Superseded to 710-04700)

$

$

Not available

18

Cub Cadet YS-710-04701

Screw, Hex Cap, M16-20 x 100
(Superseded to 710-04701)

$

$

Not available

19

Cub Cadet YS-710-04706

Screw, Hex Cap, 5/8-11 x 1.75 Gr8
(Superseded to 710-04706)

$

$

Not available

20

Cub Cadet YS-710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet YS-710-1652

Screw, Hex Wash. Hd. Tapp 1/4-20 x .625
(Superseded to 710-1652)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet YS-710-3067

Screw, Hex Cap, 3/8-16 x 1.25 Gr2
(Superseded to 710-3067)

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet YS-711-04771

Pin, Mounting

$

$

Not available

24

Cub Cadet YS-712-04063

Nut, Hex Flange Lock, 5/16-18 GrF
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet YS-712-04065

Nut, Hex Flange Insert Lock 3/8-16 GrF
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet YS-712-04143

Nut, Hex Lock, 5/8-11
(Superseded to 712-04143)

$

$

Not available

27

Cub Cadet YS-712-3083

Nut, Hex Insert Lock, 1/2-13 GrB
(Superseded to 712-3083)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet YS-714-0143A

Pin, Lynch
(Superseded to 714-0143A)

$6.49

$

In Stock, only 4 left!

0

29

Cub Cadet YS-717-04413

Cylinder, Loader Bucket

$

$

Not available

30

Cub Cadet YS-717-04417

Cylinder, Boom Lift

$

$

Not available

31

Cub Cadet YS-726-04081

Clamp, Tube
(Superseded to 726-04081)

$

$

Not available

32

Cub Cadet YS-727-04183

Coupling, Mail Quick Connect

$

$

Not available

33

Cub Cadet YS-727-04187

Hose, Hydraulic, 60 inch

$

$

Not available

33

Cub Cadet YS-727-04213

Sleeve, Hose

$

$

Not available

34

Cub Cadet YS-727-04197

Cap, Coupler Protective - Green

$

$

Not available

35

Cub Cadet YS-727-04198

Cap, Coupler Protective - Blue

$

$

Not available

36

Cub Cadet YS-727-04199

Cap, Coupler Protective - Yellow

$

$

Not available

37

Cub Cadet YS-727-04200

Cap, Coupler Protective - Red

$

$

Not available

37

Cub Cadet YS-727-3262

Cap, Coupler Protective - Black.
(Superseded to 727-3262)

Note: Use in place of color coded caps (34-37) if not available.

$

$

Not available

38

Cub Cadet YS-727-04202

Tube, Hyd., U Shape - Bckt Dump

$

$

Not available

39

Cub Cadet YS-727-04203

Tube, Hyd., U Shape - Bucket Curl

$

$

Not available

40

Cub Cadet YS-727-04204

Tube, Hyd., U Shape - BoomRaise
(Superseded to 727-04204)

$

$

Not available

41

Cub Cadet YS-727-04205

Tube, Hyd., U Shape - Boom Lower

$

$

Not available

42

Cub Cadet YS-727-04206

Tube, Hydraulic - Bucket Curl RH

$

$

Not available

43

Cub Cadet YS-727-04207

Tube, Hydraulic - Bucket Dump RH

$

$

Not available

44

Cub Cadet YS-727-04208

Tube, Hydraulic - Boom Raise RH

$

$

Not available

45

Cub Cadet YS-727-04209

Tube, Hydraulic - Boom Lower RH

$

$

Not available

46

Cub Cadet YS-727-04211

Hose, Hydraulic, 36 inch

$

$

Not available

46

Cub Cadet YS-726-0230

Tie, Cable - Tie hose to cylinders
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

47

Cub Cadet YS-727-04212

Hose, Hydraulic, 25.5 inch

$

$

Not available

47

Cub Cadet YS-726-0230

Tie, Cable - Tie hose to cylinders
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

48

Cub Cadet YS-731-3374

Washer, Color Coded - Red
(Superseded to 731-3374)

$11.99

$

Usually ships in 3-6 days

0

49

Cub Cadet YS-731-3375

Washer, Color Coded - Yellow
(Superseded to 731-3375)

$

$

Not available

50

Cub Cadet YS-731-3376

Washer, Color Coded - Green
(Superseded to 731-3376)

$

$

Not available

51

Cub Cadet YS-731-3377

Washer, Color Coded - Blue
(Superseded to 731-3377)

$

$

Not available

52

Cub Cadet YS-736-0192

Washer, Flat, .535 x .93 x .09
(Superseded to 936-0192)

$4.49

$

In Stock, Qty 18

0

53

Cub Cadet YS-736-0211

Washer, Flat, .285 x 1.25 x .06
(Superseded to 736-0211)

$6.99

$

In Stock, only 3 left!

0

54

Cub Cadet YS-736-0366

Washer, Flat, .64 x 1.12 x .125
(Superseded to 736-0366)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet YS-737-04179

Fitting, Elbow, 3/8-NPTF
(Superseded to 737-04179)

$

$

Not available

56

Cub Cadet YS-737-04185

Fitting, 90° Elbow, 3/8 x 3/8 Orb

$

$

Not available

57

Cub Cadet YS-737-04197

Fitting, Branch Tee, 3/8

$

$

Not available

58

Cub Cadet YS-737-04198

Fitting, Swivel Elbow, 3/8

$

$

Not available

59

Cub Cadet YS-737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

60

Cub Cadet YS-747-04753

Rod, Hook

$

$

Not available

61

Cub Cadet YS-710-04729

Bolt, Stacking, 1/4-20 x 3/4
(Superseded to 710-04729)

$

$

Not available

62

Cub Cadet YS-731-06400

Plug, Retangular Tube

$

$

Not available
