CL 25 LE (41AJLE-C767) - ClickLink Lawn Edger Attachment General Assembly Parts Diagram

Lawn Edger Attachment

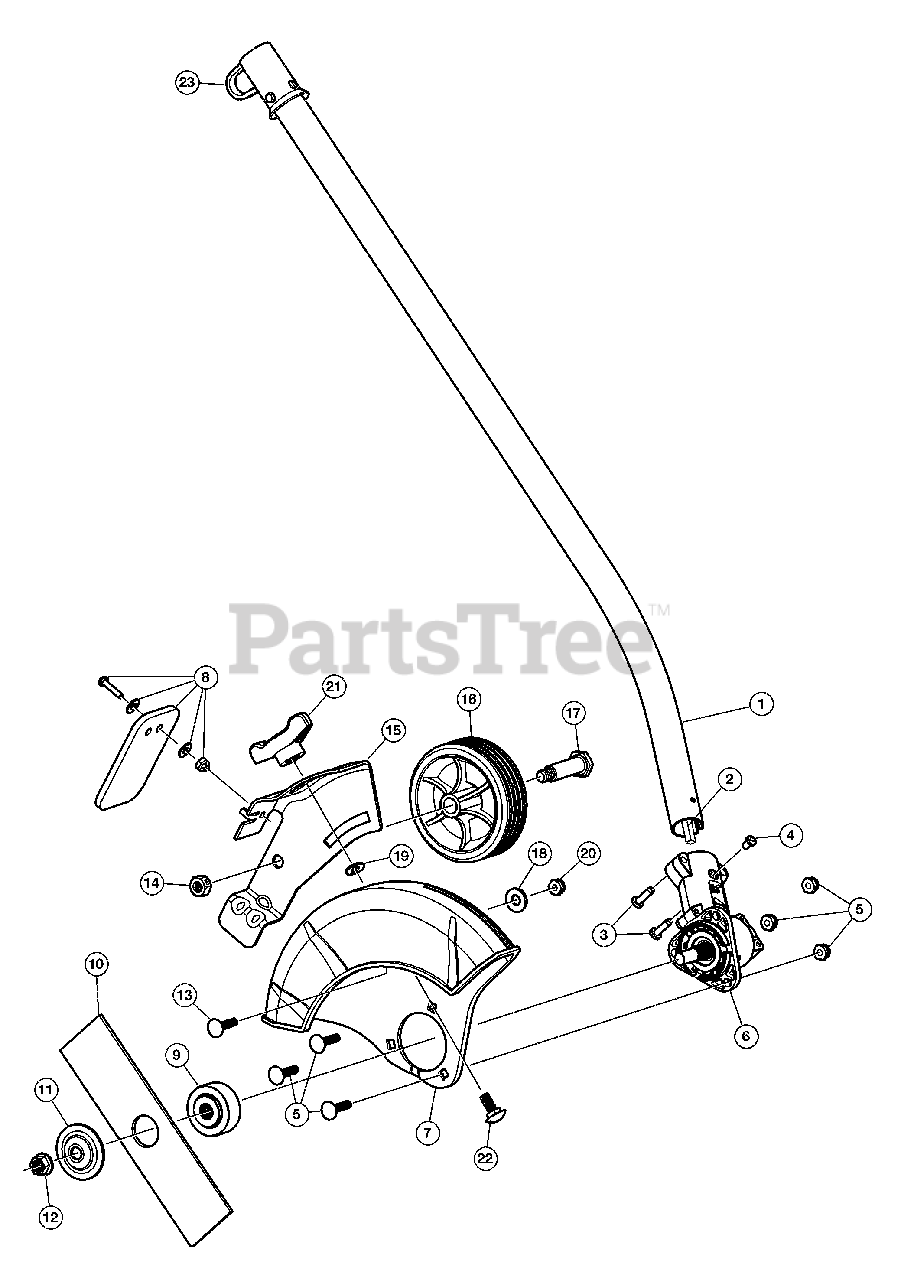

General Assembly Parts Diagram

  • Title

1

MTD 753-08036

Boom Assembly

$20.99

$

In Stock, only 3 left!

0

2

MTD 753-05267

Drive Shaft

$42.99

$

In Stock, only 1 left!

0

3

MTD 791-182195

Boom Mounting Hardware

$7.49

$

In Stock, only 1 left!

0

4

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

5

MTD 753-1217

Guard Mounting Hardware

$3.49

$

Usually ships in 3-6 days

0

6

MTD 753-04258

Gearbox Assembly

$108.99

$

In Stock, only 1 left!

0

7

MTD 753-08019

Blade Guard

$7.99

$

In Stock, only 3 left!

0

8

MTD 753-08020

Deflector w/Hardware

$3.99

$

In Stock, Qty 11

0

9

MTD 753-04261

Spacer
(Superseded to 792-10785)

$2.99

$

In Stock, only 2 left!

0

10

MTD 791-613223B

Blade
(Superseded to 797-00045)

$5.99

$

In Stock, Qty 20+

0

11

MTD 791-147490

Blade Clamp Washer

$11.99

$

In Stock, only 4 left!

0

12

MTD 712-04105

Blade Retainer Nut

$10.99

$

Usually ships in 3-6 days

0

13

MTD 753-04270

Wheel Bracket Mounting Bolt

$4.99

$

Usually ships in 3-6 days

0

14

MTD 753-04264

Nut
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

15

MTD 753-08021

Edger Guide

$10.99

$

In Stock, only 2 left!

0

16

MTD 791-181242

Wheel

$

$

Not available

17

MTD 791-180776

Shoulder Bolt
(Superseded to 5556)

$1.99

$

In Stock, only 1 left!

0

18

MTD 791-182216

Washer

$

$

Not available

19

MTD 736-04107

Washer

$4.49

$

In Stock, only 1 left!

0

20

MTD 712-0324

Nut

$3.99

$

In Stock, Qty 16

0

21

MTD 720-04124

Edger Guide Knob

$4.99

$

In Stock, only 2 left!

0

22

MTD 710-0451

Bolt

$4.49

$

In Stock, Qty 20+

0

23

MTD 731-08926

Hanger

$2.99

$

In Stock, only 3 left!

0
