CL 25 GC (41AJGC-C767) - ClickLink Garden Cultivator Attachment General Assembly Parts Diagram

Garden Cultivator Attachment

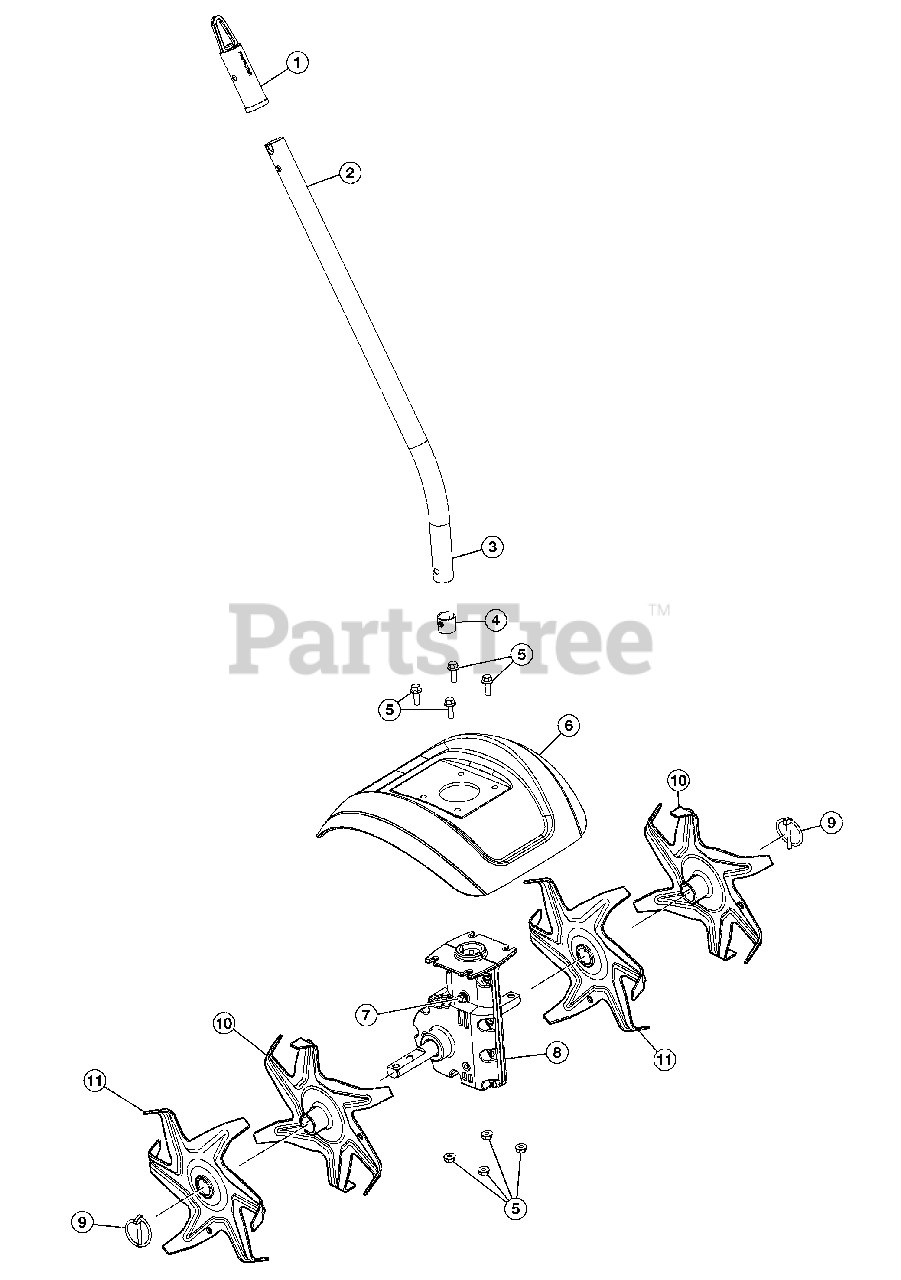

General Assembly Parts Diagram

  • Title
1

MTD 791-612605

Accessory Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, Qty 20+

0

2

MTD 791-180916

Drive Shaft Housing Assembly
(Superseded to 753-08754)

$14.99

$

In Stock, only 2 left!

0

3

MTD 791-613300

Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

4

MTD 753-04078

Retainer Sleeve

$10.99

$

Usually ships in 3-6 days

0

5

MTD 753-04266

Mounting Hardware Set

$

$

Not available

6

MTD 753-06768

Tine Shield
(Superseded to 731-08411A-2)

$11.99

$

In Stock, only 1 left!

0

7

$4.49

$

In Stock, Qty 20+

0

8

MTD 753-06063

Gear Box Assembly

$133.99

$

In Stock, Qty 5

0

9

MTD 753-04070

Clip Pin

$9.99

$

In Stock, Qty 20+

0

10

MTD 753-05983

Tine (Left Inner, Right Outer)

$34.99

$

Usually ships in 3-6 days

0

11

MTD 753-05984

Tine (Left Outer, Right Inner)

$34.99

$

Usually ships in 3-6 days

0
