CL 25 BL (41AJTB-C767) - ClickLink Blower Attachment General Assembly Parts Diagram

Blower Attachment

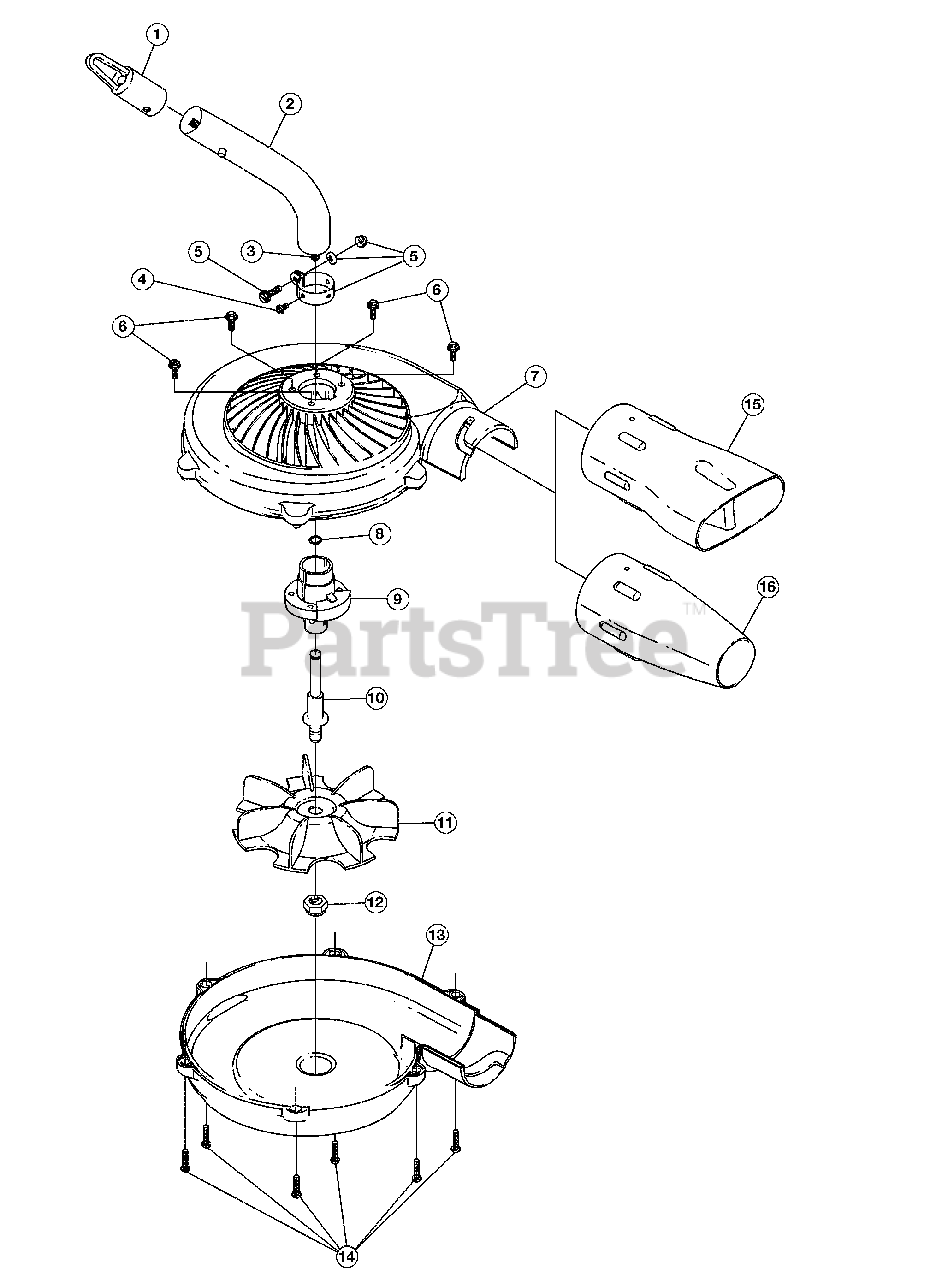

General Assembly Parts Diagram

  • Title

1

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

2

MTD 753-1218

Drive Shaft Housing Assembly

$105.99

$

Usually ships in 3-6 days

0

3

MTD 791-181852

Drive Shaft Assembly

$59.99

$

In Stock, only 1 left!

0

4

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

5

MTD 791-153597

Lower Clamp Assembly (includes 4)

$

$

Not available

6

MTD 791-181853

Mounting Screw

$

$

Not available

7

MTD 791-181996

Upper Housing

$

$

Not available

8

MTD 753-04348

Palnut

$6.99

$

In Stock, only 2 left!

0

9

MTD 791-181636

Bushing Assembly Housing

$

$

Not available

10

MTD 791-181634

Shaft Impeller

$

$

Not available

11

MTD 791-181635

Impeller

$

$

Not available

12

MTD 791-181637

Nut and Washer

$

$

Not available

13

MTD 791-181997

Lower Housing

$

$

Not available

14

MTD 791-181345

Mounting Screw

$4.49

$

In Stock, only 4 left!

0

15

MTD 791-181632

Flare Nozzle

$

$

Not available

16

MTD 791-181633

Concentrator Nozzle

$24.99

$

In Stock, only 1 left!

0
