CL 200 (59A40002727) - Cub Cadet Yanmar Tractor Curved Boom Loader Attachment Loader Quick Link Parts Diagram

Tractor Curved Boom Loader Attachment

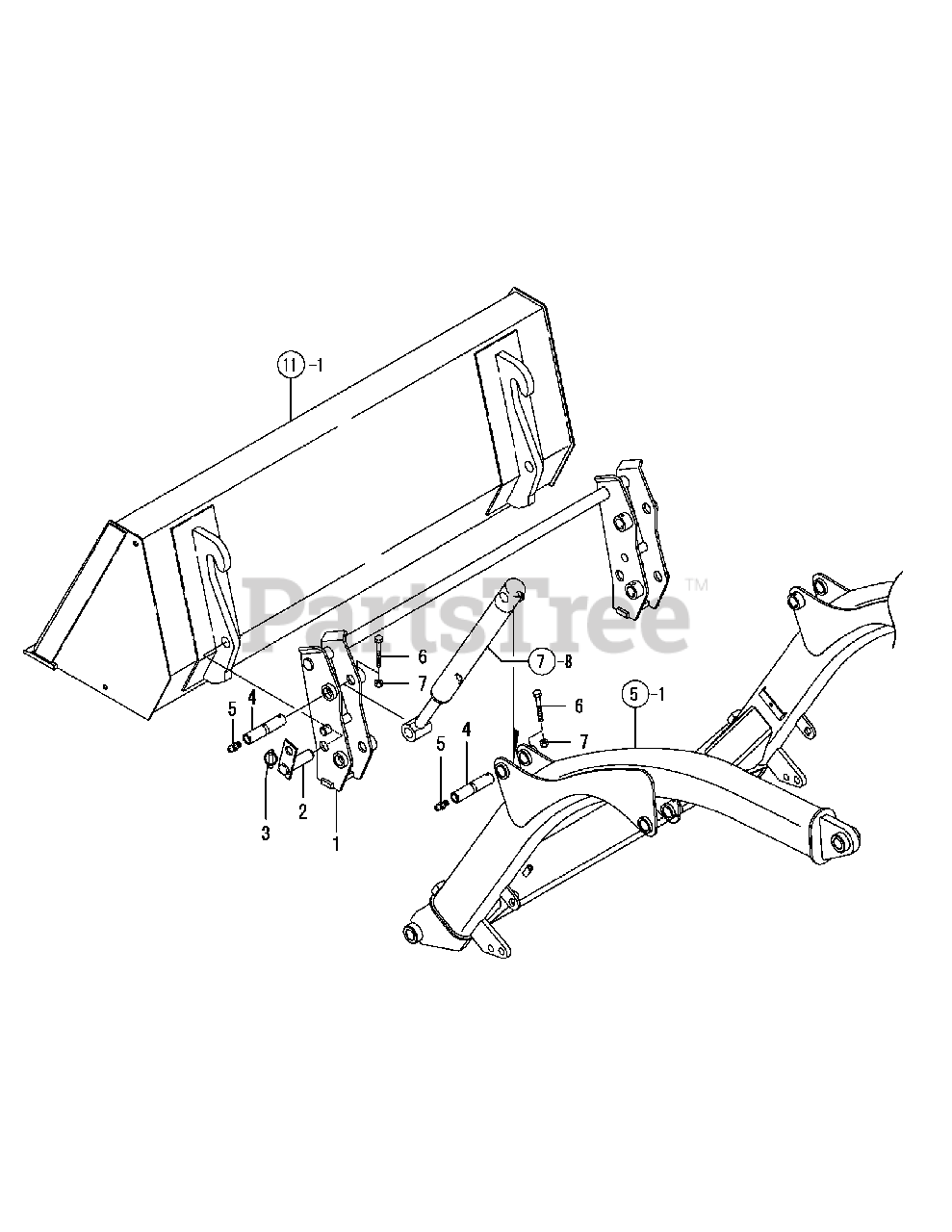

Loader Quick Link Parts Diagram

  • Title
1

Cub Cadet CY-1TN325-23100

Quick Link Assy

$

$

Not available

2

Cub Cadet CY-1TN325-23310

Retaining Pin Cmp

$

$

Not available

3

Cub Cadet CY-194180-72950

Pin Assy, Lock

$

$

Not available

$

$

Not available

5

Cub Cadet CY-24761-010000

Nipple M6F, Grease

$

$

Not available

6

Cub Cadet CY-26116-060502

Bolt M 6X 50 Plated

$

$

Not available

$

$

Not available

Note5-1, Refers to BOOM, Ref No. 1

$

$

Not available

Note7-8, Refers to CYLINDER, Ref No. 8

$

$

Not available

Note11-1, Refers to BUCKET 53, Ref No. 1

$

$

Not available
