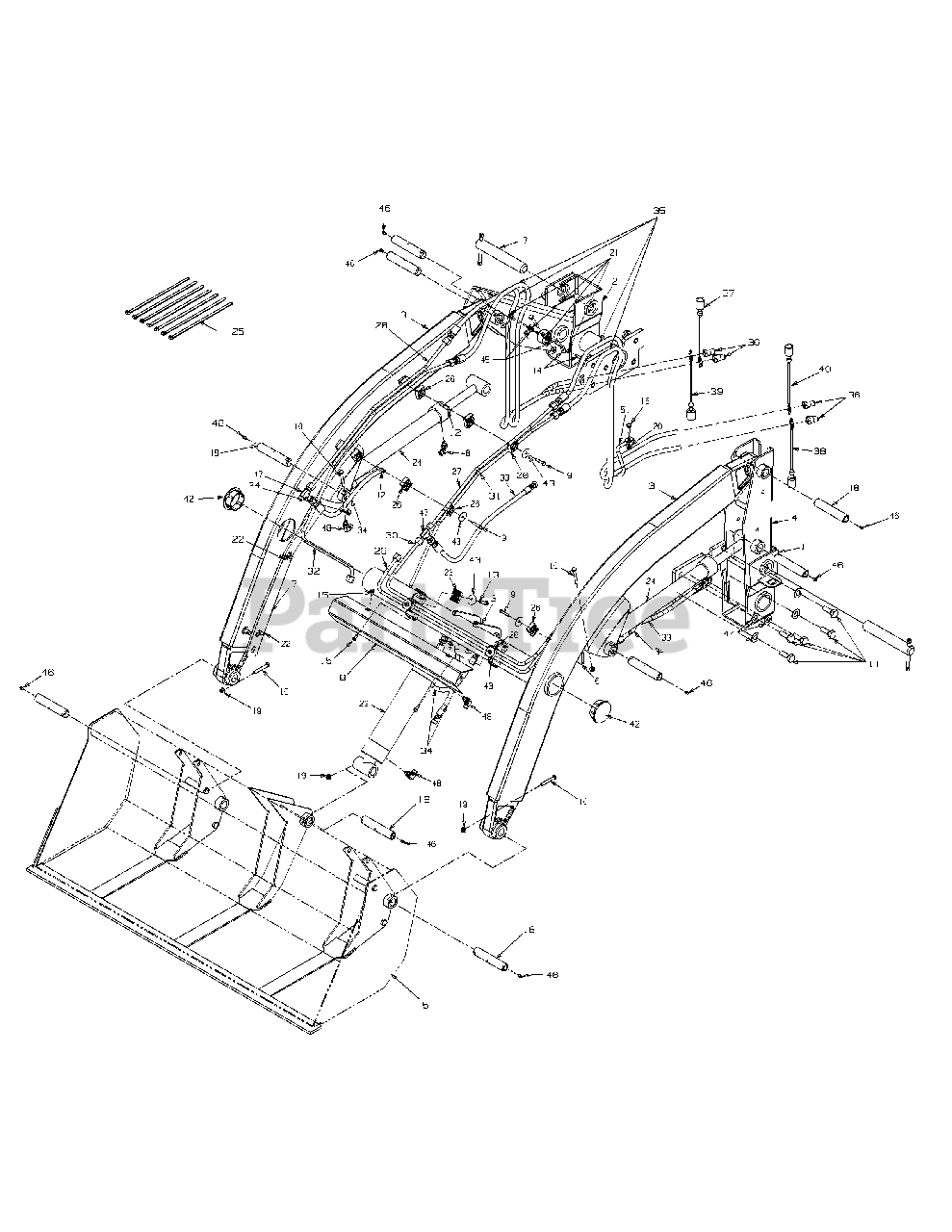

CL 100 (59A40001727) - Cub Cadet Yanmar Tractor Curved Boom Loader General Assembly 2 Parts Diagram

Tractor Curved Boom Loader

General Assembly 2 Parts Diagram

  • Title

1

Cub Cadet YS-603-04483

LH Mount Assembly

$

$

Not available

2

Cub Cadet YS-603-04484

RH Mount Assembly

$

$

Not available

3

Cub Cadet YS-603-04650A

Main Arm Assembly

$

$

Not available

4

Cub Cadet YS-603-04665

Vertical Support Assembly

$

$

Not available

5

Cub Cadet YS-603-04696

Bucket Assembly
(Superseded to 603-04696-0637)

$

$

Not available

6

Cub Cadet YS-703-06470

Loader Stand

$

$

Not available

7

Cub Cadet YS-703-06706

Loader Stand

$

$

Not available

8

Cub Cadet YS-703-06806

Hydro Line Cover

$

$

Not available

9

Cub Cadet YS-710-0106

Hex Screw, 1/4-20 x 1.25
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet YS-710-0395

Hex Screw, 5/16-18 x 2.25
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet YS-710-04028

Hex Screw, M16-2 x 40 mm
(Superseded to 710-04028)

$

$

Not available

12

Cub Cadet YS-710-04729

Stacking Bolt, 1/4-20 x 3/4
(Superseded to 710-04729)

$

$

Not available

13

Cub Cadet YS-710-0778

Hex Washer Screw, 1/4-20 x 1.500
(Superseded to 710-0778)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet YS-710-1205

Eye Bolt, 1/4-20
(Superseded to 710-1205)

$3.99

$

In Stock, only 2 left!

0

15

Cub Cadet YS-710-1652

Hex Washer Screw, 1/4-20 x .625
(Superseded to 710-1652)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet YS-710-3206A

Hex Screw, M8-1.25 x 25.0
(Superseded to 710-3206A)

$3.99

$

In Stock, Qty 13

0

17

Cub Cadet YS-711-04874

Mast Pin

$

$

Not available

18

Cub Cadet YS-711-05018

Pin, 1" OD x 5"

$

$

Not available

19

Cub Cadet YS-712-04063

Flange Lock Nut, 5/16-18
(Superseded to 712-04063)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet YS-712-0714

Flange Lock Nut, M8-1.25
(Superseded to 712-0714)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet YS-712-3006

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

22

Cub Cadet YS-714-04023

Cotter Pin, .080 x 1.5625
(Superseded to 914-04023)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet YS-717-04650

Cylinder, 15.5 x 2.5

$

$

Not available

24

Cub Cadet YS-717-04651

Cylinder, 24.25 x 1.5

$

$

Not available

25

Cub Cadet YS-726-0230

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

26

Cub Cadet YS-726-04081

Tube Clamp
(Superseded to 726-04081)

$

$

Not available

27

Cub Cadet YS-727-04225

Hydraulic Tube

$

$

Not available

28

Cub Cadet YS-727-04226

Hydraulic Tube

$

$

Not available

29

Cub Cadet YS-727-04227

Hydraulic Tube

$

$

Not available

30

Cub Cadet YS-727-04229

Hydraulic Tube

$

$

Not available

31

Cub Cadet YS-727-04231

Hydraulic Tube

$

$

Not available

32

Cub Cadet YS-727-04232

Hydraulic Tube

$

$

Not available

33

Cub Cadet YS-727-04234

Hose, 26"

$

$

Not available

34

Cub Cadet YS-727-04237

Hose, 19"

$

$

Not available

35

Cub Cadet YS-727-04242A

Hose, 60"

$

$

Not available

36

Cub Cadet YS-727-04243

Hydraulic Coupling, 9/16-18

$

$

Not available

37

Cub Cadet YS-727-04249

Green Female Plug, 1/4

$

$

Not available

38

Cub Cadet YS-727-04250

Yellow Female Plug, 1/4

$

$

Not available

39

Cub Cadet YS-727-04251

Blue Female Plug, 1/4

$

$

Not available

40

Cub Cadet YS-727-04252

Red Female Plug, 1/4

$

$

Not available

41

Cub Cadet YS-727-04265

Hose Sleeve (Not Shown)

$

$

Not available

42

Cub Cadet YS-731-06405

Tube Plug

$

$

Not available

43

Cub Cadet YS-736-0211

Flat Washer, .285 x 1.25 x .06
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

44

Cub Cadet YS-736-04181

Flat Washer, .690 x 1.250 x .075
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

45

Cub Cadet YS-736-0463

Flat Washer, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

46

Cub Cadet YS-737-0146

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

47

Cub Cadet YS-737-04197

Hydraulic Swivel Tee Fitting

$

$

Not available

48

Cub Cadet YS-737-04211

Hydraulic Fitting

$

$

Not available

51

Cub Cadet YS-747-04971

Hook Rod

$

$

Not available
