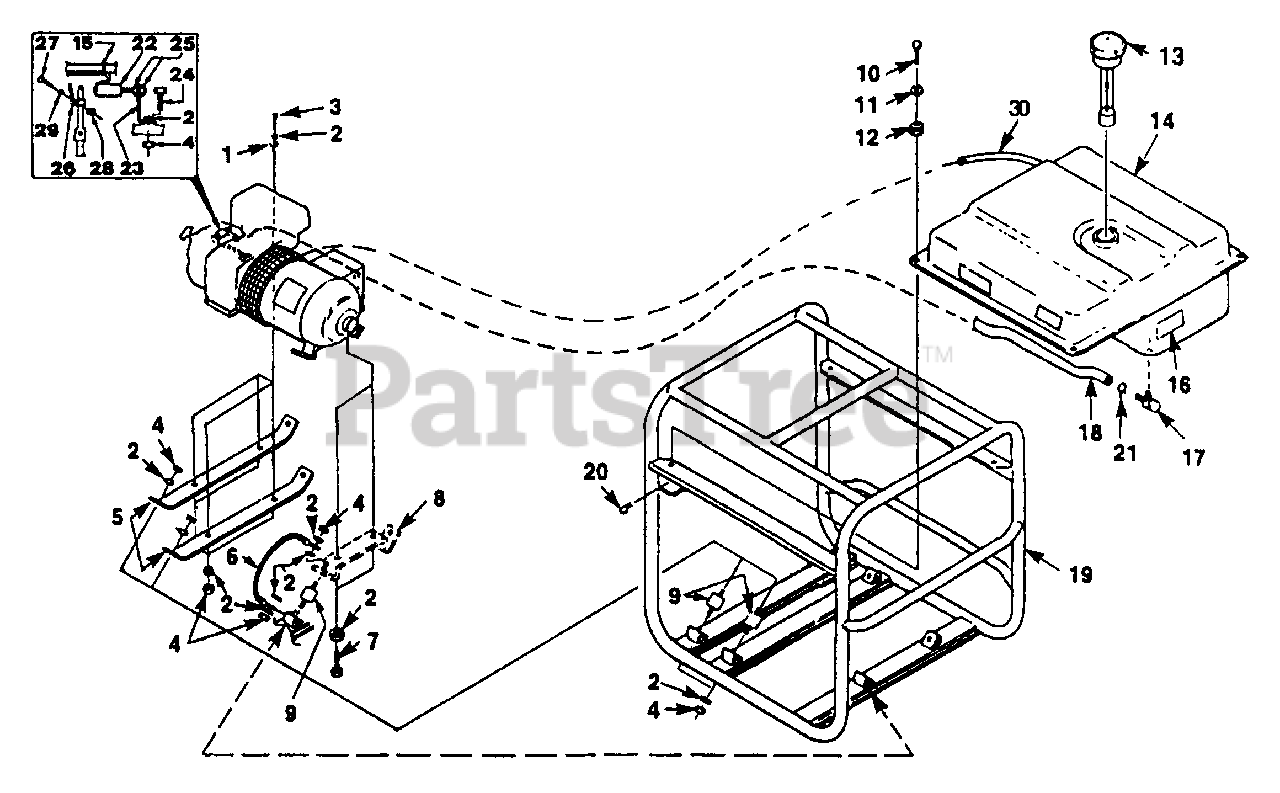

CHY 5000 (UT-03772) - Homelite Generator Roll Cage Parts Diagram

Generator

Roll Cage Parts Diagram

  • Title

1

Homelite 84046

WASHER - Flat (5/16)

$

$

Not available

2

Homelite 83081

WASHER - Lock/Int (5/16)

$

$

Not available

3

Homelite 80197

SCREW - Cap Hex Hd (5/16-18 X 2")

Note: Torque Specs 140-150 In/Lbs. 15.8-16.9 Nm

$

$

Not available

4

Homelite 81162

NUT - Hex (5/16-18)

$

$

Not available

5

Homelite 49265

SUPPORT - Engine
(Superseded to UP03535)

$30.99

$

Usually ships in 3-7 days

0

6

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

7

Homelite 82206

SCREW - Thread Form (5/16-18 X 1")

Note: Torque Specs 200-250 In/Lbs. 24.9-28.2 Nm

$4.49

$

Usually ships in 3-7 days

0

8

Homelite 48944

SUPPORT - Generator

$

$

Not available

9

Homelite 49367

ISOLATOR - Vibration
(Superseded to UP03483)

$

$

Not available

10

Homelite 49329

PIN - Clevis

$

$

Not available

11

Homelite 84006

WASHER - Flat (1/4)

$

$

Not available

12

Homelite 49351

GROMMET - Isolator

$

$

Not available

13

Homelite 49179

CAP - Fuel

$

$

Not available

14

Homelite 021101

TANK - Fuel
(Superseded to UP07001)

$440.99

$

Usually ships in 3-7 days

0

15

Homelite 46840

TIE - Cable

$

$

Not available

16

Homelite 49340A

DECAL - Fuel Valve
(Superseded to UP07235)

$

$

Not available

17

Homelite 02192

VALVE - Fuel

$

$

Not available

18

Homelite 0216001

FUEL LINE

$

$

Currently unavailable

19

Homelite A062541

ROLL CAGE

$

$

Currently unavailable

20

Homelite 49412

PIN - Cotter Hair

$

$

Not available

21

Homelite 02181

HOSE - Clip

$

$

Not available

22

Homelite A02233

ELECTROMAGNET W/Grommet

$

$

Not available

23

Homelite 02173

BRACKET - Magnet, 11HP

$

$

Not available

24

Homelite 80085

SCREW - Cap Hex Hd (5/16-18 X 1")

Note: Torque Specs 130-140 In/Lbs. 14.7-15.8 Nm

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 810652

NUT - Hex (1/4-28)
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

26

Homelite 02172

PADDLE - 11HP
(Superseded to UP07777)

$

$

Not available

27

Homelite 80577

SCREW - Mach Pan Hd (8-32 X 2/3")
(Superseded to UP03389)

Note: Torque Specs 18-22 In/Lbs. 2.0-2.5 Nm

$

$

Not available

28

Homelite 81227

NUT - Speed (8-32)

$

$

Not available

29

Homelite 83022

WASHER - Lock/Int (#8)
(Superseded to UP03410)

$

$

Not available

30

Homelite A06427

ELECTRICAL LEAD

$

$

Currently unavailable
