CHY 5000 (UT-03772) - Homelite Generator Generator End Parts Diagram

Generator

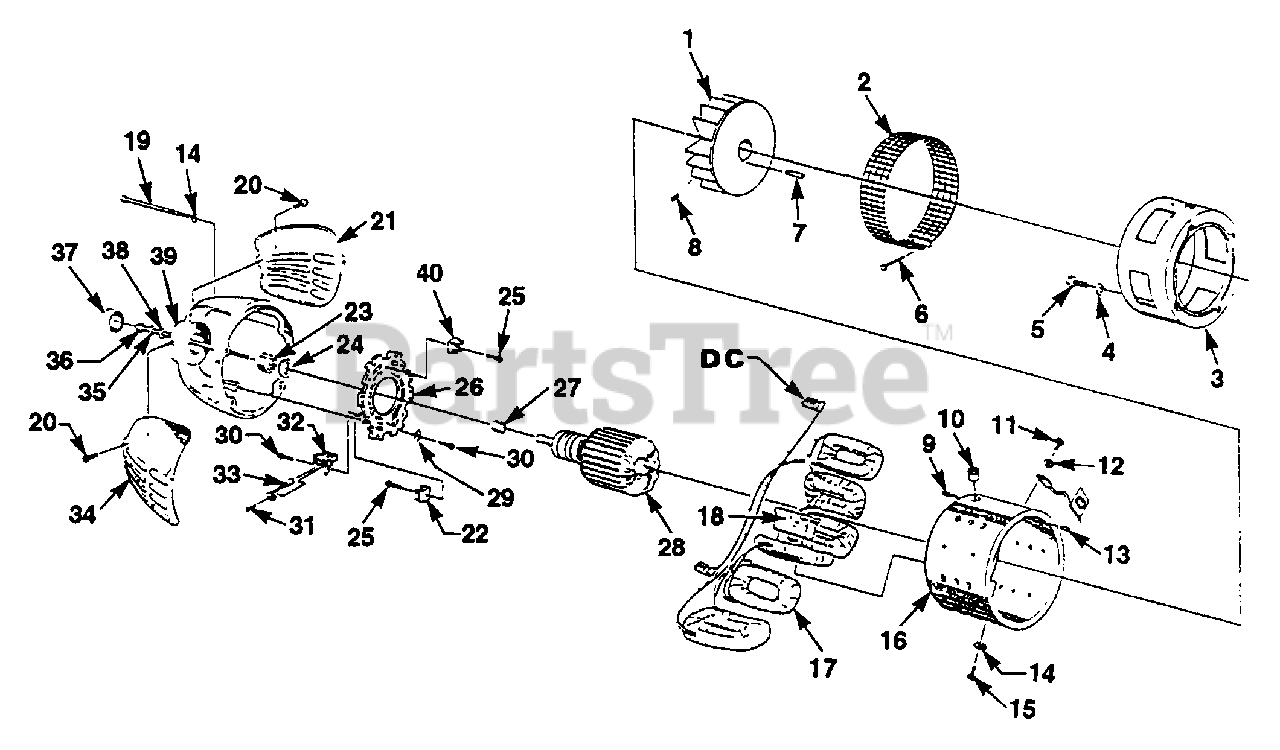

Generator End Parts Diagram

  • Title

1

Homelite 292521

FAN

$

$

Currently unavailable

2

Homelite 618836

SCREEN - Generator Mtg Ring

$

$

Currently unavailable

3

Homelite A42614

ADAPTER - Engine

$

$

Currently unavailable

4

Homelite 83117

WASHER - Lock Int/Ext (3/8)

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 80187

SCREW - Hex Hd (3/8-16 X 7/8")
(Superseded to PS80187)

Note: Torque Specs 240-250 In/Lbs., 27-1-28.2 Nm Red 277 Required Locktite

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 80236

SCREW - Machine Fil. Hd (1/4-20 X 2-1/4")

Note: Torque Specs 65-70 In/Lbs., 7.3-7.9 Nm

$

$

Not available

7

Homelite 43301A

KEY (3/16 X 3/16 X 1)
(Superseded to UP03767)

$

$

Not available

8

Homelite 80357

SCREW - Set (1/4-20 X 3/8")

Note: Torque Specs 65-70 In/Lbs., 7.3-7.9 Nm

$

$

Currently unavailable

9

Homelite 66185

PIN - Spirol

$

$

Currently unavailable

10

Homelite 48713

BUSHING - Flange

$

$

Not available

11

Homelite 82469

SCREW - Mach Pan Hd (8-32 X 3/8")

Note: Torque Specs 12-14 In/Lbs., 1.4-1.6 Nm

$

$

Not available

12

Homelite 83086

WASHER - Lock (#8)

$

$

Not available

13

Homelite 67905

PIN - Spirol

$

$

Currently unavailable

14

Homelite 83009

WASHER - Lock (1/4)

$8.49

$

Usually ships in 3-7 days

0

15

Homelite 82496

SCREW - Cap Hex Hd (1/4-20 X 1")

Note: Torque Specs 65-70 In/Lbs., 7.3-7.9 Nm

$

$

Not available

16

Homelite A48877S

YOKE

$

$

Currently unavailable

17

Homelite A06322

COIL - Field

$318.99

$

Usually ships in 3-7 days

0

18

Homelite A53431

POLE - Piece

$

$

Currently unavailable

19

Homelite 4885301

BOLT - Stator
(Superseded to UP03430)

Note: Torque Specs 65-70 In/Lbs., 7.3-7.9 Nm

$22.99

$

Usually ships in 3-7 days

0

20

Homelite 82463

SCREW - Mach Hex Hd (10-24 X 5/8")

Note: Torque Specs 25-30 In/Lbs., 2.8-3.4 Nm

$5.49

$

Usually ships in 3-7 days

0

21

Homelite 266153A

COVER - Brush Head

$

$

Currently unavailable

22

Homelite 53818A

RECTIFIER 35 AMP

$

$

Not available

23

Homelite A54954

BEARING - Roller

$

$

Not available

24

Homelite 54903

SEAL - Roller Bearing

$

$

Not available

25

Homelite 82205

SCREW - Thread Rolling (8-32 X 2/4")

Note: Torque Specs 18-22 In/Lbs., 2.0-2.5 Nm

$

$

Not available

26

Homelite 486091A

RING - Brush Holder

$

$

Currently unavailable

27

Homelite 54792

RACE - Inner

$

$

Not available

28

Homelite A48607S

ARMATURE

$

$

Currently unavailable

29

Homelite 84025

WASHER - Flat (#8)

$

$

Not available

30

Homelite 82474

SCREW - Thread Rolling (8-32 X 1/2")

Note: Torque Specs 18-22 In/Lbs., 2.0-2.5 Nm

$

$

Not available

31

Homelite 80260

SCREW - Round Hd (8-32 X 3/8")

Note: Torque Specs 5-7 In/Lbs., .6-.8 Nm

$

$

Not available

32

Homelite 53760

HOLDER - Brush

$29.99

$

Usually ships in 3-7 days

0

33

Homelite 53762

BRUSH

$

$

Not available

34

Homelite 266143B

COVER - Brush Head

$

$

Currently unavailable

35

Homelite 83002

WASHER - Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

36

Homelite 4885208

BOLT - Rotor (5/16-24 X 10-3/4")

Note: Torque Specs 120-150 In/Lbs., 13.6-16.9 Nm

$

$

Currently unavailable

37

Homelite 53445

CAP - Bearing

$

$

Not available

38

Homelite 549211

WASHER - Flat

$

$

Currently unavailable

39

Homelite 549225

HEAD - Brush
(Superseded to 549225A)

$

$

Currently unavailable

40

Homelite 08491

RECTIVIER - 40 AMP

$

$

Not available
