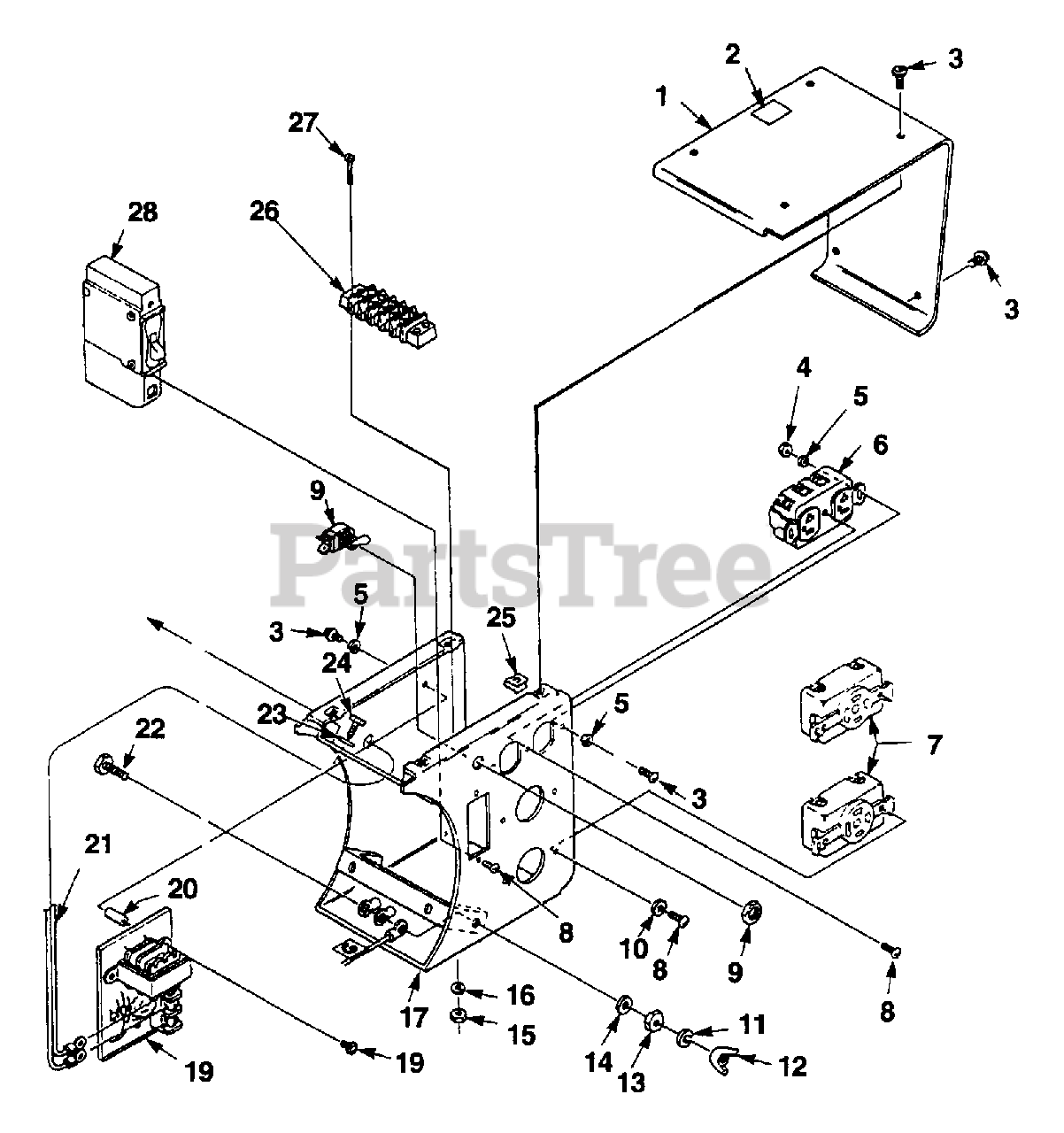

CHY 5000 (UT-03772) - Homelite Generator Control Panel Parts Diagram

Generator

Control Panel Parts Diagram

  • Title

1

Homelite A04365

COVER - Control Box

$

$

Currently unavailable

2

Homelite 04272

DECAL - Warning

$

$

Not available

3

Homelite 82469

SCREW - Mach Slot (8-32 X 3/8")

Note: Torque Specs 8-10 In/Lbs., 9-1.1 Nm

$

$

Not available

4

Homelite 81009

NUT - Hex (8-32)

$

$

Not available

5

Homelite 83086

WASHER - Lock (#8)

$

$

Not available

6

Homelite 51373

RECEPTACLE - Duplex (Nema 5-20R)

$

$

Not available

7

Homelite 51137A

RECEPTACLE (3 Pole, 4 Wire)

$153.99

$

Usually ships in 3-7 days

0

8

Homelite 82481

SCREW - Round Hd (8-32 X 3/8")

Note: Torque Specs 8-10 In/Lbs., 9-1.1 Nm

$

$

Currently unavailable

9

Homelite 53282

SWITCH - Toggle (SPST)

$

$

Not available

10

Homelite 83024

WASHER - Lock (#6)

$

$

Not available

11

Homelite 83002

WASHER - Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 81015

NUT - Wing (5-16-18)

$

$

Not available

13

Homelite 81018

NUT - Hex (5/16-18)

$

$

Not available

14

Homelite 83081

WASHER-Lock (5/16)

$

$

Not available

15

Homelite 81092

NUT - Hex (10-24)

$

$

Not available

16

Homelite 83006

WASHER - Lock (#10)

$

$

Not available

17

Homelite A04364

CONTROL BOX

$

$

Currently unavailable

?18

Homelite A01865A

IDLE CONTROL w/Feet
(Superseded to UP06353)

$

$

Not available

19

Homelite 80022

SCREW - Mach Fil Hd (8-32 X 1/2")

Note: Torque Specs 12-14 In/Lbs., 1.4-1.6 Nm

$

$

Not available

20

Homelite 50909

SPACER

$

$

Not available

Homelite 06623

FUSE - Slow-blow

Note: Not shown

$

$

Not available

21

Homelite A02233

ELECTROMAGNET

Note: See "ROLL CAGE" diagram, item #22

$

$

Not available

22

Homelite 80088

SCREW - Cap Hex Hd (5/16-18 X 1-1/4")

Note: Torque Specs 145-155 In/Lbs., 16.4-17.5 Nm

$

$

Not available

23

Homelite 83009

WASHER - Lock (1/4)

$8.49

$

Usually ships in 3-7 days

0

24

Homelite 82477

SCREW - Machine Hex Hd. (1/4-20 X 1/2")
(Superseded to UP03402)

Note: Torque Specs 65-70 In/Lbs., 7.3-7.9 Nm

$

$

Not available

25

Homelite 81227

NUT - Speed (8-32)

$

$

Not available

26

Homelite 42366

BLOCK - Terminal

$

$

Not available

27

Homelite 82311

SCREW - Machine (10-24 X 5/8")

Note: Torque Specs 20-25 In/Lbs., 2.3-2.8 Nm

$

$

Not available

28

Homelite 48651A

BREAKER - Circuit (25A, 240V)

$

$

Not available
