CHY 5000 (UT-03772-A) - Homelite Generator Wiring Schematic Parts Diagram

Generator

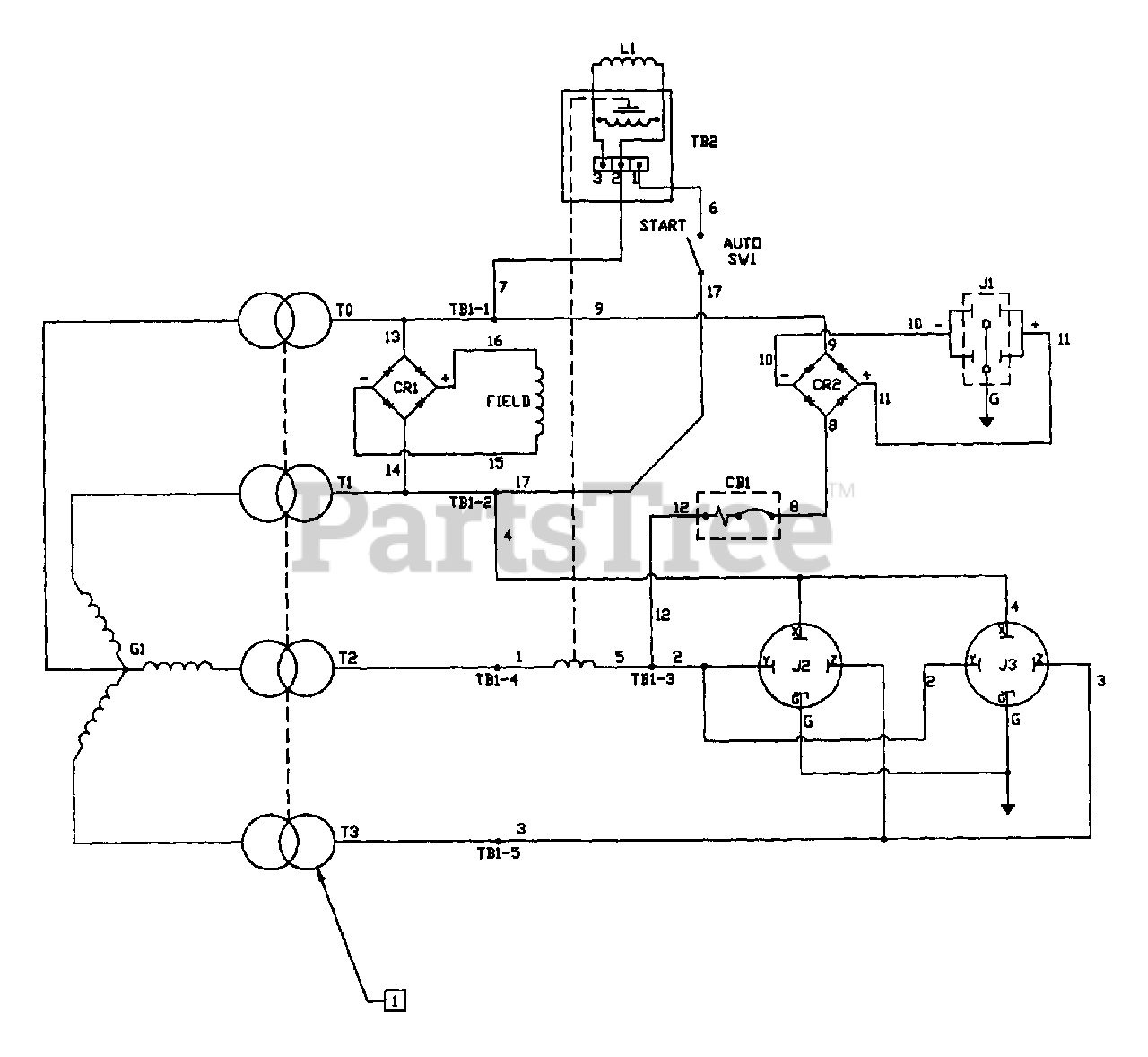

Wiring Schematic Parts Diagram

  • Title
G1

Homelite A48658

3-PHASE 180 HZ 6 POLE STATIONARY FIELD GENERATOR

$

$

Currently unavailable

CB1

Homelite 48651A

25 AMP A.C. CIRCUIT BREAKER

$

$

Not available

CR1

Homelite 53818A

FULL WAVE BRIDGE RECTIFIER - 35 AMP

$

$

Not available

J1

Homelite 51373

120 VOLT, DUPLEX RECEPTACLES

$

$

Not available

J2

Homelite 51137A

230 VOLT, 3 POLE, 4 WIRE GROUNDING RECEPTACLE

$153.99

$

Usually ships in 3-7 days

0

J3

Homelite 51137A

230 VOLT, 3 POLE, 4 WIRE GROUNDING RECEPTACLE

$153.99

$

Usually ships in 3-7 days

0

L1

Homelite A53279

IDLE CONTROL SOLENOID

$

$

Currently unavailable

TB1

Homelite 42366

5 PLACE 30 AMP TERMINAL BOARD

$

$

Not available

SW1

Homelite 53282

SPST SWITCH

$

$

Not available

TB2

Homelite A48648C

IDLE CONTROL BOARD

$

$

Currently unavailable

CR2

Homelite 04891

FULL WAVE BRIDGE RECTIFIER - 40 AMP

$

$

Currently unavailable
