CHTZ 2460 - RedMax Hedge Trimmer (SN: 00100101 & Above) (2012-08) CUTTING BLADE Parts Diagram

Hedge Trimmer

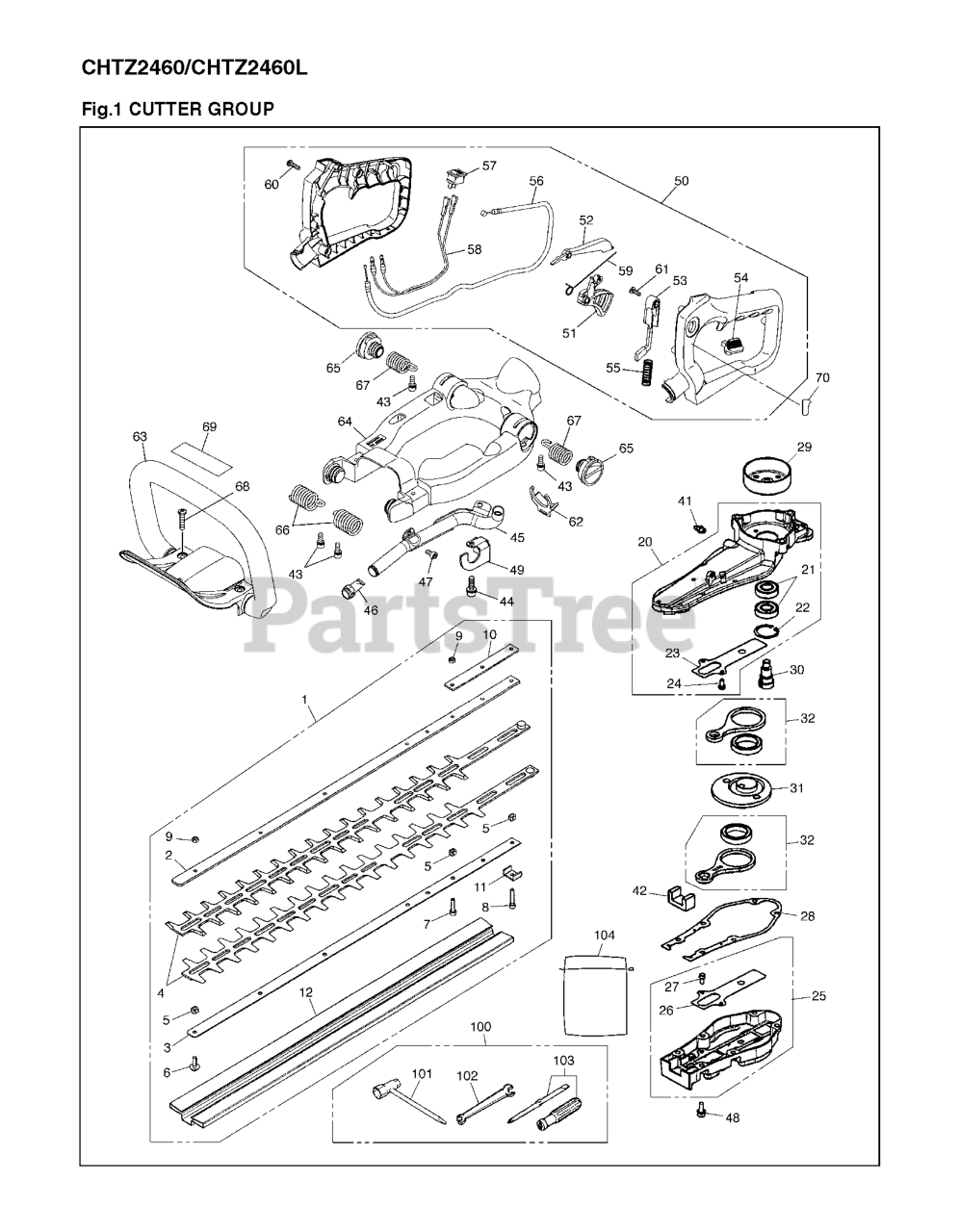

CUTTING BLADE Parts Diagram

  • Title

1

RedMax 574643401

BLADE

$242.99

$

Usually ships in 3-10 days

0

2

RedMax 521858701

PLATE
(Superseded to 512840601)

$66.99

$

Usually ships in 3-10 days

0

3

RedMax 574643501

PLATE, LOWER
(Superseded to 574609901)

$15.99

$

Usually ships in 3-10 days

0

4

RedMax 511245701

BLADE (24")

$109.99

$

In Stock, only 4 left!

0

5

RedMax 506687601

SPACER
(Superseded to 521854801)

$9.99

$

In Stock, Qty 7

0

6

RedMax 574610001

BOLT

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

8

RedMax 574610101

BOLT

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 506687801

NUT

$4.99

$

In Stock, Qty 5

0

10

RedMax 506688201

PLATE

$6.99

$

In Stock, Qty 9

0

11

RedMax 506627401

BRACKET

$5.99

$

Usually ships in 3-10 days

0

12

RedMax 577644403

BLADE COVER

$17.99

$

Usually ships in 3-10 days

0

20

RedMax 575700801

GEAR HOUSING COMP

$84.99

$

Usually ships in 3-10 days

0

21

RedMax 529269801

BEARING

$12.99

$

In Stock, only 2 left!

0

22

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

23

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

25

RedMax 575700901

CAP COMP

$48.99

$

In Stock, only 1 left!

0

26

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

28

RedMax 506688301

GASKET

$5.99

$

In Stock, only 2 left!

0

29

RedMax 506619501

DRUM

$26.99

$

Usually ships in 3-10 days

0

30

RedMax 527878901

GEAR DRIVE

$20.99

$

Usually ships in 3-10 days

0

31

RedMax 527879001

GEAR DRIVE

$91.99

$

Usually ships in 3-10 days

0

32

RedMax 506688501

ROD ASSY

$62.99

$

In Stock, only 1 left!

0

41

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

42

RedMax 506688901

FELT

$5.99

$

In Stock, Qty 10

0

43

RedMax 521516101

BOLT

$4.99

$

In Stock, Qty 5

0

44

RedMax 521517501

BOLT

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 523072001

EXHAUST PIPE

$21.99

$

Usually ships in 3-10 days

0

46

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 2 left!

0

47

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

48

RedMax 575701001

SCREW

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 576695301

BRACKET

$4.99

$

Usually ships in 3-10 days

0

50

RedMax 521593701

HANDLE-REAR-A

$62.99

$

Usually ships in 3-10 days

0

51

RedMax 512795301

LEVER.THROTTLE

$5.99

$

Usually ships in 3-10 days

0

52

RedMax 512795501

ARM

$4.99

$

In Stock, only 1 left!

0

53

RedMax 521850601

LEVER

$3.49

$

In Stock, only 1 left!

0

54

RedMax 512795901

KNOB

$4.99

$

In Stock, only 1 left!

0

55

RedMax 521850801

SPRING

$

$

Not available

56

RedMax 521527101

CABLE COMP

$26.99

$

Usually ships in 3-10 days

0

57

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

58

RedMax 512798001

CODE-C

$12.99

$

In Stock, only 1 left!

0

59

RedMax 505048001

SPRING

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 505047001

SCREW

$3.99

$

Usually ships in 3-10 days

0

61

RedMax 506614001

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

62

RedMax 521850901

STOPPER

$4.99

$

In Stock, Qty 11

0

63

RedMax 521593601

HANDLE F

$17.99

$

In Stock, only 1 left!

0

64

RedMax 521851101

FRAME

$20.99

$

Usually ships in 3-10 days

0

65

RedMax 521851201

HOLDER

$3.49

$

In Stock, Qty 8

0

66

RedMax 521593801

SPRING F

$5.99

$

In Stock, only 1 left!

0

67

RedMax 521593901

SPRING R

$6.99

$

In Stock, only 1 left!

0

68

RedMax 513586101

SCREW

$6.49

$

In Stock, Qty 16

0

69

RedMax 527891301

$

$

Not available

70

RedMax 521855701

LABEL

$3.49

$

Usually ships in 3-10 days

0

100

RedMax 575711801

TOOL KIT ASSY

$12.68

$

Usually ships in 3-10 days

0

101

RedMax 506686101

SOCKET

$5.99

$

In Stock, only 4 left!

0

102

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

103

RedMax 506689501

DRIVER

$4.99

$

Usually ships in 3-10 days

0

104

RedMax 506686001

$

$

Not available
