CHTZ 2401 L - RedMax Hedge Trimmer (SN: 60100000 - 60100100) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

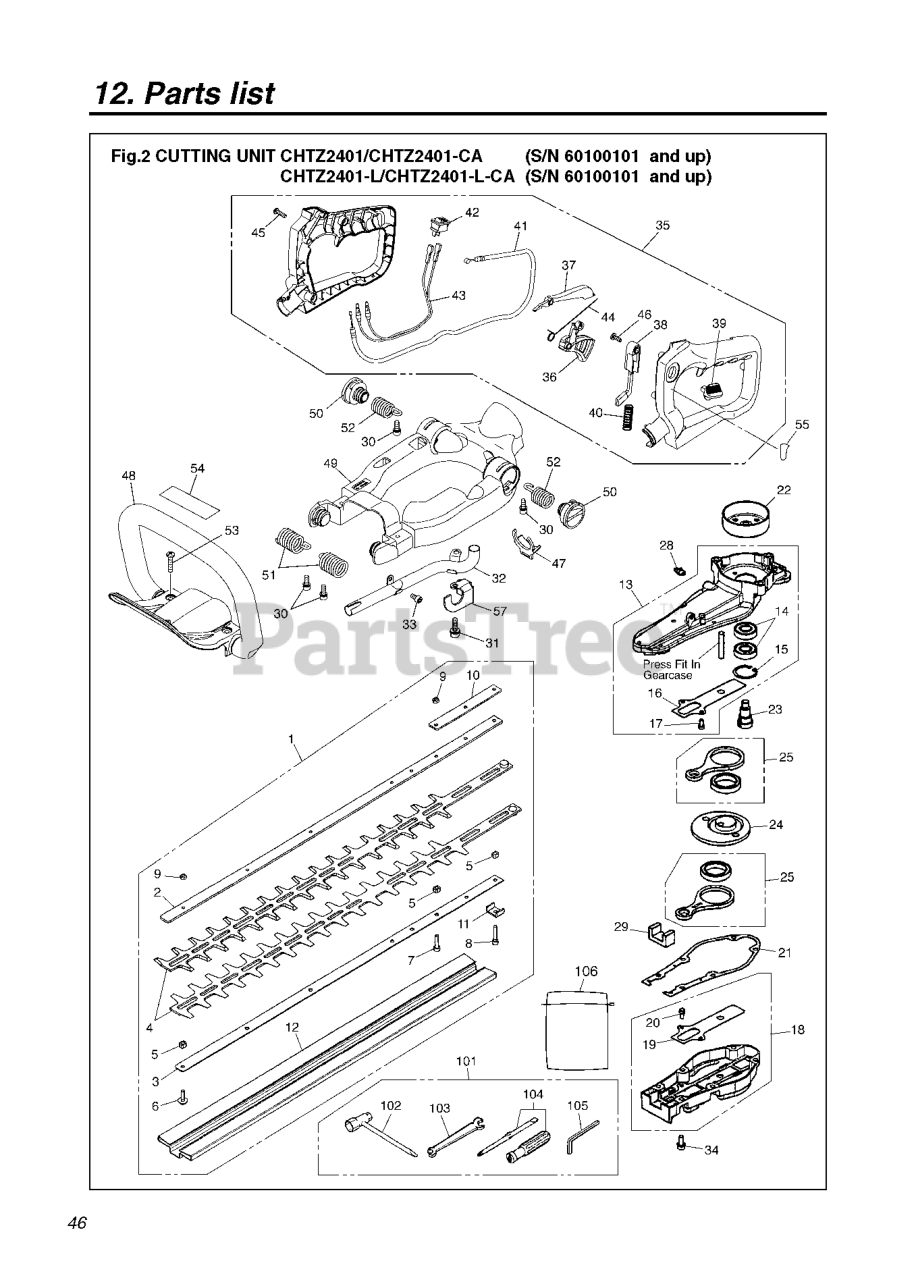

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 511246101

BLADE ASSY.(RPLS 848D4A6500)

Note: . 2 3 4-12

$

$

Not available

2

RedMax 521594201

PLATE UPPER

Note: upper

$62.99

$

Usually ships in 3-10 days

0

3

RedMax 506688001

PLATE LOWER
(Superseded to 521857601)

Note: lower

$15.99

$

Usually ships in 3-10 days

0

4

RedMax 521594101

BLADE
(Superseded to 586594801)

$68.99

$

In Stock, only 3 left!

0

5

RedMax 506687601

SPACER
(Superseded to 521854801)

$9.99

$

In Stock, Qty 7

0

6

RedMax 506687501

SCREW
(Superseded to 521854201)

$4.99

$

In Stock, only 4 left!

0

7

RedMax 506609301

BOLT
(Superseded to 516070801)

$6.49

$

In Stock, Qty 11

0

8

RedMax 506618001

BOLT

$3.49

$

Usually ships in 3-10 days

0

9

RedMax 506687801

NUT

$4.99

$

In Stock, Qty 5

0

10

RedMax 506688201

PLATE

$6.99

$

In Stock, Qty 9

0

11

RedMax 506627401

BRACKET

$5.99

$

Usually ships in 3-10 days

0

12

RedMax 521594301

COVER
(Superseded to 577644404)

$31.99

$

Usually ships in 3-10 days

0

13

RedMax 506619901

GEARCASE COMPLETE UPPER
(Superseded to 586937101)

Note: . 14 15 16 17

$121.99

$

In Stock, only 1 left!

0

14

RedMax 506610101

BEARING

$11.99

$

Usually ships in 3-10 days

0

15

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

16

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 506688801

BOLT

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 506622801

GEARCASE COMP. BOTTOM
(Superseded to 586937201)

Note: . 19 20

$51.99

$

Usually ships in 3-10 days

0

19

RedMax 506626901

PLATE

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 506688801

BOLT

$3.49

$

Usually ships in 3-10 days

0

21

RedMax 506688301

GASKET

$5.99

$

In Stock, only 2 left!

0

22

RedMax 506619501

DRUM

$26.99

$

Usually ships in 3-10 days

0

23

RedMax 506627201

GEAR DRIVE

$22.99

$

Usually ships in 3-10 days

0

24

RedMax 506688701

GEAR DRIVE

$113.99

$

Usually ships in 3-10 days

0

25

RedMax 506688501

ROD ASSY

$62.99

$

In Stock, only 1 left!

0

28

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

29

RedMax 506688901

FELT

$5.99

$

In Stock, Qty 10

0

30

RedMax 505299501

BOLT

$4.99

$

In Stock, only 1 left!

0

31

RedMax 506609501

BOLT

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 521590601

PIPE-EXHAUST

$22.99

$

Usually ships in 3-10 days

0

33

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 1 left!

0

34

RedMax 506617901

BOLT

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 521593701

HANDLE-REAR-A

Note: . 36-46

$62.99

$

Usually ships in 3-10 days

0

36

RedMax 512795301

LEVER.THROTTLE

Note: throttle

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 512795501

ARM

$4.99

$

In Stock, only 1 left!

0

38

RedMax 521850601

LEVER

Note: lock

$3.49

$

In Stock, only 1 left!

0

39

RedMax 512795901

KNOB

$4.99

$

In Stock, only 1 left!

0

40

RedMax 521850801

SPRING

$

$

Not available

41

RedMax 521527101

CABLE COMP

$26.99

$

In Stock, only 1 left!

0

42

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

43

RedMax 512798001

CODE-C

$12.99

$

In Stock, only 1 left!

0

44

RedMax 505048001

SPRING

Note: throttle

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 505047001

SCREW

$3.99

$

Usually ships in 3-10 days

0

46

RedMax 506614001

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

47

RedMax 521850901

STOPPER

$4.99

$

In Stock, Qty 11

0

48

RedMax 521593601

HANDLE F

$17.99

$

In Stock, only 1 left!

0

49

RedMax 521851101

FRAME

$20.99

$

Usually ships in 3-10 days

0

50

RedMax 521851201

HOLDER

$3.49

$

In Stock, Qty 8

0

51

RedMax 521593801

SPRING F

$5.99

$

In Stock, only 1 left!

0

52

RedMax 521593901

SPRING R

$6.99

$

In Stock, only 1 left!

0

53

RedMax 513586101

SCREW

$6.49

$

In Stock, Qty 16

0

54

RedMax 511249601

OBSOLETE - LABEL CAUTION

$

$

Not available

55

RedMax 521855701

LABEL

$3.49

$

Usually ships in 3-10 days

0

57

RedMax 521594001

BRACKET
(Superseded to 576695301)

$4.99

$

Usually ships in 3-10 days

0

64

RedMax 511250001

$

$

Not available

101

RedMax 521532201

TOOL-SET

Note: . 102 103 104 105 106

$18.99

$

Usually ships in 3-10 days

0

102

RedMax 506686101

SOCKET

$5.99

$

In Stock, only 4 left!

0

103

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

104

RedMax 506689501

DRIVER

$4.99

$

Usually ships in 3-10 days

0

105

RedMax 505311901

WRENCH

$

$

Not available

106

RedMax 506686001

$

$

Not available
