CHTZ 2400 - RedMax Hedge Trimmer (SN: 50100000 & Above) (2005-03) 004 - CUTTING UNIT Parts Diagram

Hedge Trimmer

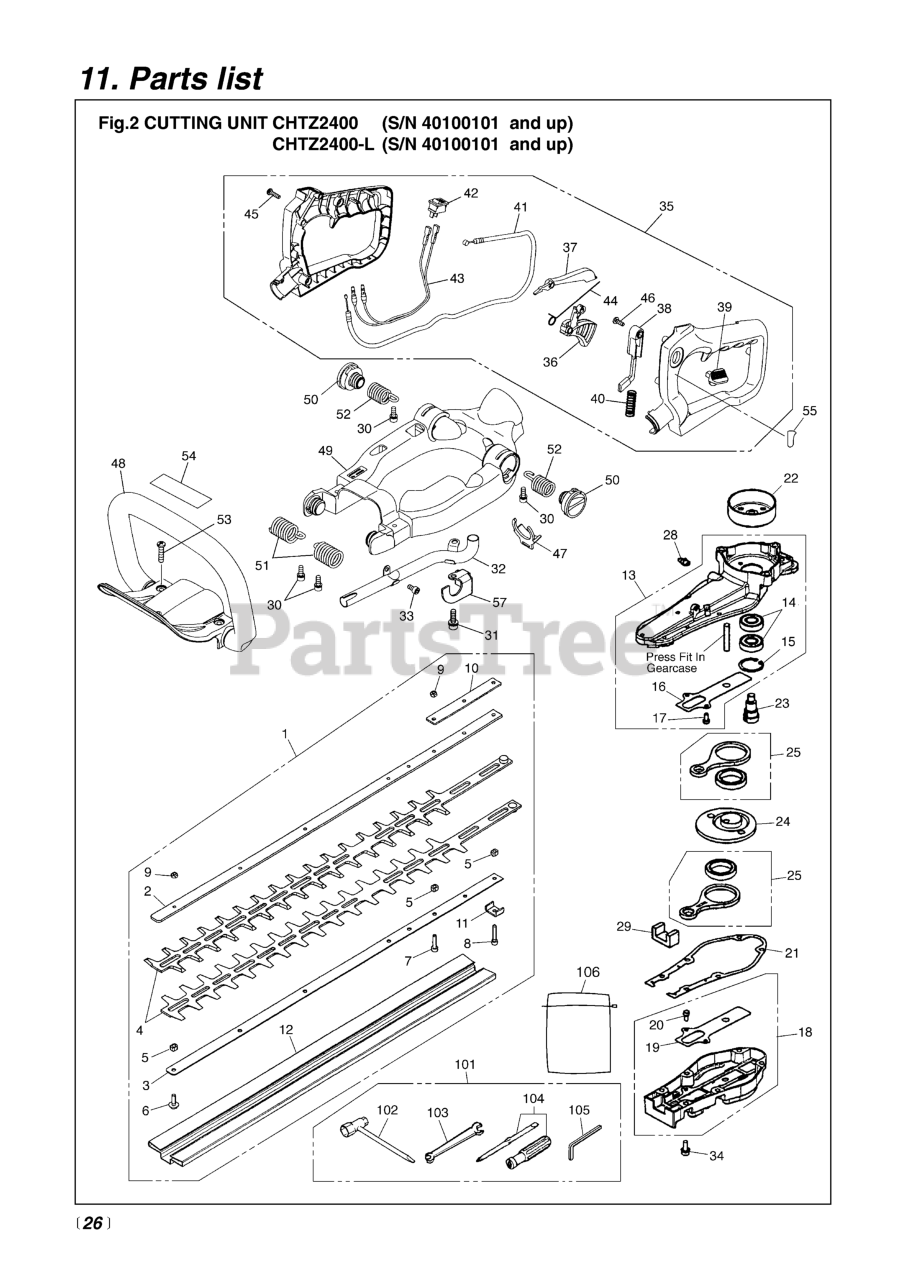

004 - CUTTING UNIT Parts Diagram

  • Title

1

RedMax 848D4A6501

BLADE ASSY
(Superseded to 511245601)

$

$

Not available

2

RedMax T454411110

PLATE,UPPER
(Superseded to 521858701)

$66.99

$

Usually ships in 3-10 days

0

3

RedMax T454411120

PLATE,LOWER
(Superseded to 521858801)

$15.99

$

Usually ships in 3-10 days

0

4

RedMax 848D4A65A0

BLADE
(Superseded to 511245701)

$109.99

$

In Stock, only 4 left!

0

5

RedMax T452111311

SPACER
(Superseded to 506687601)

$9.99

$

In Stock, Qty 7

0

6

RedMax T452011331

SCREW, BLADE
(Superseded to 506687501)

$4.99

$

In Stock, only 4 left!

0

7

RedMax 0125230520

BOLT, M5 X 20
(Superseded to 516070801)

$6.49

$

In Stock, Qty 11

0

8

RedMax 8488452500

BOLT
(Superseded to 506618001)

$3.49

$

Usually ships in 3-10 days

0

9

RedMax T453111350

NUT
(Superseded to 506687801)

$4.99

$

In Stock, Qty 5

0

10

RedMax T454311410

PLATE
(Superseded to 506688201)

$6.99

$

In Stock, Qty 9

0

11

RedMax 848D3066E1

BRACKET
(Superseded to 506627401)

$5.99

$

Usually ships in 3-10 days

0

12

RedMax T454411230

COVER, BLADE
(Superseded to 577644403)

$17.99

$

Usually ships in 3-10 days

0

13

RedMax 848D306112

GEARCASE COMP., UPPER
(Superseded to 586937101)

$121.99

$

Usually ships in 3-10 days

0

14

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

15

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

16

RedMax 848D3061B0

PLATE

$2.06

$

Usually ships in 3-10 days

0

17

RedMax T454342320

BOLT
(Superseded to 506688801)

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 848D306121

CASE-BOTTOM-A
(Superseded to 586937201)

$51.99

$

Usually ships in 3-10 days

0

19

RedMax 848D3061B0

PLATE

$2.06

$

Usually ships in 3-10 days

0

20

RedMax T454342320

BOLT
(Superseded to 506688801)

$3.49

$

Usually ships in 3-10 days

0

21

RedMax T454321220

GASKET
(Superseded to 506688301)

$5.99

$

In Stock, only 2 left!

0

22

RedMax 848D305111

DRUM

$17.42

$

Usually ships in 3-10 days

0

23

RedMax 848D3062A0

GEAR, DRIVE
(Superseded to 506627201)

$22.99

$

Usually ships in 3-10 days

0

24

RedMax T454342210

GEAR, DRIVEN
(Superseded to 506688701)

$113.99

$

Usually ships in 3-10 days

0

25

RedMax T454342100

ROD-A
(Superseded to 506688501)

$62.99

$

In Stock, only 1 left!

0

28

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

29

RedMax T454342410

FELT
(Superseded to 506688901)

$5.99

$

In Stock, Qty 10

0

30

RedMax 331031720

BOLT
(Superseded to 520961501)

$4.99

$

In Stock, only 1 left!

0

31

RedMax 0125230625

BOLT, M6 X 25
(Superseded to 506609501)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

34

RedMax 8488451600

BOLT
(Superseded to 506617901)

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 848D4A3300

HANDLE-REAR-A
(Superseded to 521593701)

$62.99

$

Usually ships in 3-10 days

0

36

RedMax T450631210

LEVER-THROTTLE

$2.58

$

Usually ships in 3-10 days

0

37

RedMax T450631310

ARM

$1.58

$

Usually ships in 3-10 days

0

38

RedMax T450631412

LEVER-LOCK

$1.49

$

Usually ships in 3-10 days

0

39

RedMax T450631420

KNOB
(Superseded to 521850701)

$4.99

$

In Stock, only 1 left!

0

40

RedMax T450631430

SPRING
(Superseded to 521850801)

$

$

Not available

41

RedMax 8488P00000

CABLE C
(Superseded to 521527101)

$26.99

$

Usually ships in 3-10 days

0

42

RedMax T450652110

SWITCH
(Superseded to 521851601)

$11.99

$

In Stock, only 3 left!

0

43

RedMax T450652120

CORD COMP.

$7.50

$

Usually ships in 3-10 days

0

44

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 263031950

SCREW
(Superseded to 574095601)

$1.49

$

Usually ships in 3-10 days

0

46

RedMax 263033610

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

47

RedMax T450631511

STOPPER
(Superseded to 521850901)

$4.99

$

In Stock, Qty 11

0

48

RedMax 848D4A32A1

HANDLE F
(Superseded to 521593601)

$17.99

$

In Stock, only 1 left!

0

49

RedMax T450641110

FRAME
(Superseded to 521851101)

$20.99

$

Usually ships in 3-10 days

0

50

RedMax T450641220

HOLDER-REAR
(Superseded to 521851201)

$3.49

$

In Stock, Qty 8

0

51

RedMax 848D4A37A0

SPRING

$4.74

$

Usually ships in 3-10 days

0

52

RedMax 848D4A37B0

SPRING
(Superseded to 521593901)

$6.99

$

In Stock, only 1 left!

0

53

RedMax 263032610

SCREW
(Superseded to 510818101)

$

$

Not available

54

RedMax 848D4A91F0

LABEL,CAUTION

$3.25

$

Usually ships in 3-10 days

0

55

RedMax T453512250

LABEL

$0.81

$

Usually ships in 3-10 days

0

57

RedMax 848D4A63A0

BRACKET
(Superseded to 576695301)

$4.99

$

Usually ships in 3-10 days

0

101

RedMax 8488U00010

TOOL-SET
(Superseded to 521532201)

$18.99

$

Usually ships in 3-10 days

0

102

RedMax T401791130

SOCKET

$11.01

$

Usually ships in 3-10 days

0

103

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

104

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

105

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

106

RedMax T319591110

BAG

$1.00

$

Usually ships in 3-10 days

0
