Echo CHT-58V (107945001) - Echo Hedge Trimmer, 58V Battery, Revision 06 (2019-09) General Assembly Parts Lookup with Diagrams

1

Echo 679055009

Handle Cover Spring

$1.49

$

Usually ships in 2-4 days

2

Echo 203466001

Housing Assembly

$19.99

$

Usually ships in 2-4 days

3

Echo 679055010

Lock-out Button Spring

$1.49

$

Usually ships in 2-4 days

4

Echo 203469001

Wire Cover Assembly

$1.49

$

Usually ships in 2-4 days

5

Echo 528357001

Front Handle Trigger

$3.99

$

In Stock, only 3 left!

6

Echo 662175003

Screw (M4 x 15 mm, T25 Torx Round Hd.)

$1.49

$

Usually ships in 2-4 days

7

Echo 203468001

Front Handle Cover Assembly

$1.49

$

In Stock, Qty 5

8

Echo 941588076

Data Label

$1.49

$

Usually ships in 2-4 days

9

Echo 528353001

Front Handle Support

$4.49

$

In Stock, only 1 left!

10

Echo 660203073

Screw (M3 x 6 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

11

Echo 760689007

Switch (On/Off)

$2.49

$

In Stock, only 4 left!

12

Echo 690969001

Washer (4.2ID x 10OD x 1t)

$1.49

$

Usually ships in 2-4 days

13

Echo 639109001

Switch Board

$1.49

$

Usually ships in 2-4 days

14

Echo 662175002

Screw (M4 x 18 mm, T25 Torx Hd.)

$1.49

$

Usually ships in 2-4 days

15

Echo 203470001

Guard (Inc. Key No.18)

$2.49

$

Usually ships in 2-4 days

16

Echo 203467001

Trigger Assembly

$1.49

$

Usually ships in 2-4 days

17

Echo 901665001

SEAL

$1.49

$

Usually ships in 2-4 days

18

Echo 940657146

Warning Icon Label

$1.49

$

Usually ships in 2-4 days

19

Echo 528341001

SCABBARD

$3.99

$

Usually ships in 2-4 days

20

Echo 563588001

GASKET

$1.49

$

In Stock, only 3 left!

21

Echo 662177001

Screw (M4 x 6 mm, Flat Hd.)

$1.49

$

Usually ships in 2-4 days

22

Echo 661861004

Screw (M4 x 9.5 mm)

$1.49

$

Usually ships in 2-4 days

23

Echo 662176002

Screw w/Washer (M5 x 27 mm, T25 Torx Round Hd.)

$1.49

$

Usually ships in 2-4 days

24

Echo 528398001

Wire Cover

$1.49

$

Usually ships in 2-4 days

25

Echo 291372001

Front Handle Wire Assembly

$1.99

$

Usually ships in 2-4 days

26

Echo 291541001

Rear Handle Wire Assembly

$1.99

$

Usually ships in 2-4 days

27

Echo 203465001

Blade and Gear Assembly

$90.99

$

Usually ships in 2-4 days

28

Echo 203475001

Circuit Board and Battery Carriage Assembly

$81.99

$

Usually ships in 2-4 days

29

Echo 203476001

Gear Box Cover Assembly

$10.99

$

Usually ships in 2-4 days

30

Echo 230568001

Motor and Pinion Assembly

$75.99

$

Usually ships in 2-4 days

31

Echo 203477001

Gear Box Case Assembly

$22.99

$

Usually ships in 2-4 days

32

Echo 662178001

Screw (M5 x 20 mm, T20 Torx Hd.)

$

Currently unavailable 

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

$

Currently unavailable 

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

$

Currently unavailable 

Echo 140330001

58V Charger (CBC-58V, Not Included)

$

Currently unavailable 

Echo 991000275

Operator's Manual (ECHO #99922205191)

(Superseded to Discontinued) 

$

Not available 

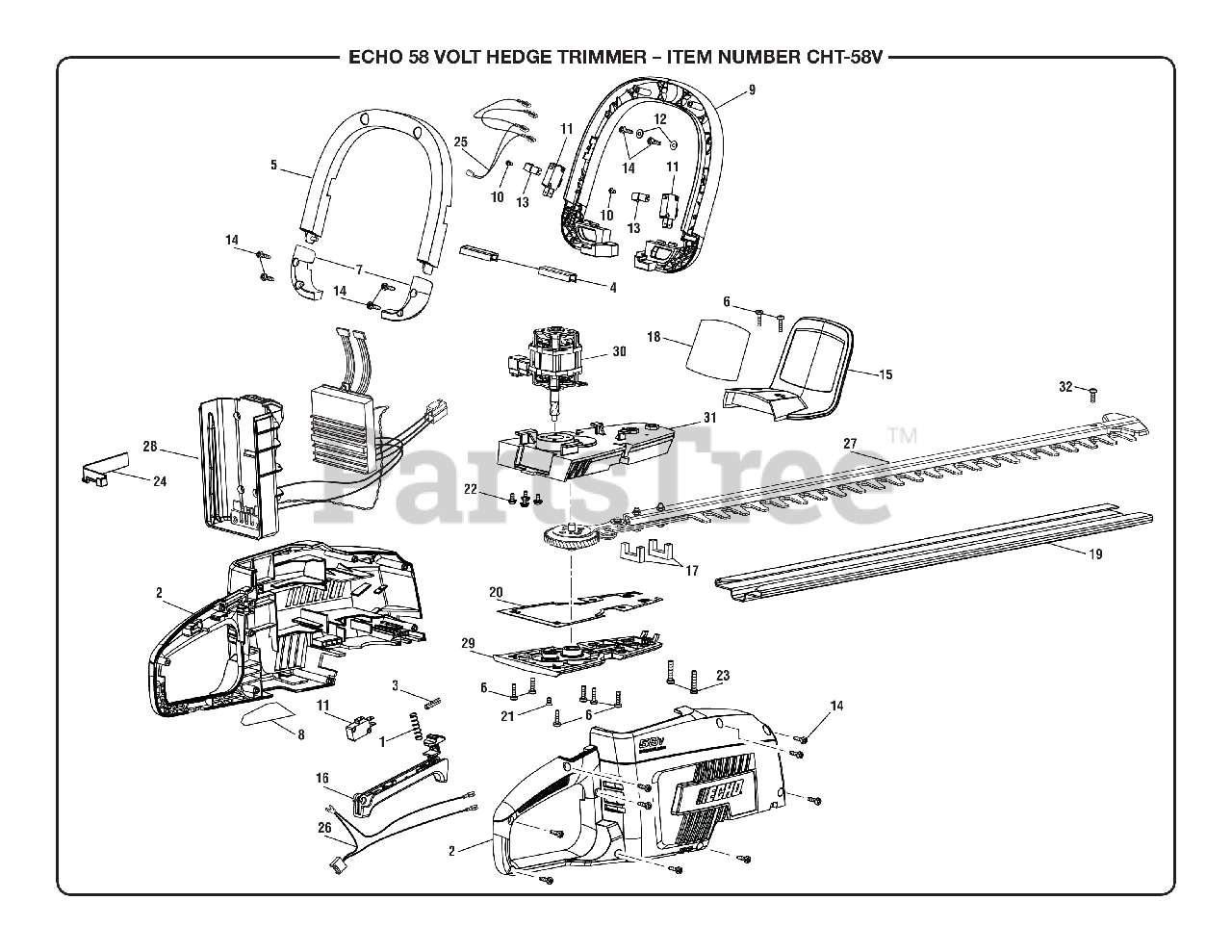

CHT-58V (107945001) - Echo Hedge Trimmer, 58V Battery, Revision 06 (2019-09) General Assembly Parts Diagram
