CHT 2300 L - RedMax Hedge Trimmer (1994-03) 012 - CUTTER GROUP Parts Diagram

Hedge Trimmer

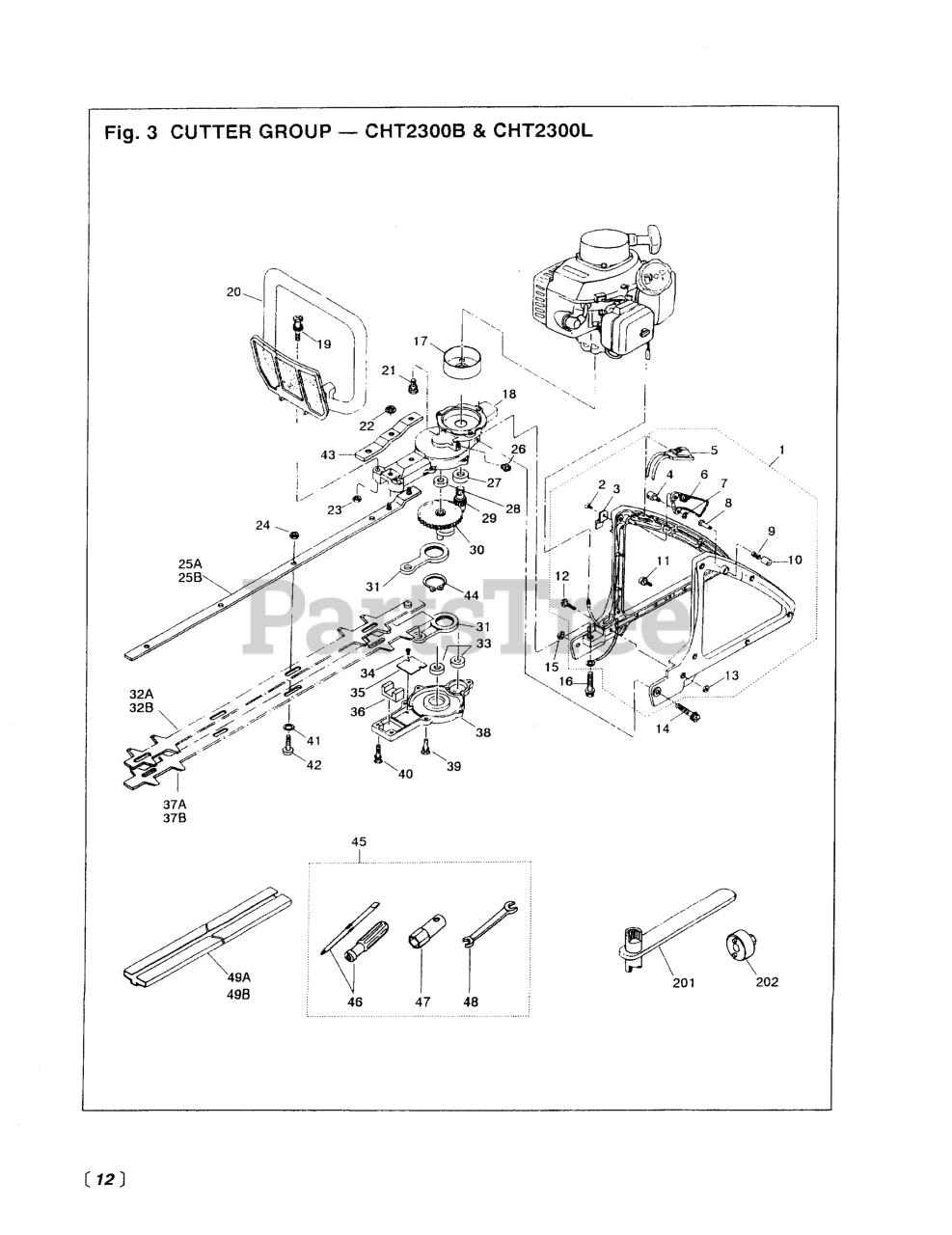

012 - CUTTER GROUP Parts Diagram

  • Title
1

RedMax 387313100

6845-13100
(Superseded to 515713401)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 387313180

SCREW, M4 x 10
(Superseded to 515225401)

$3.49

$

Usually ships in 3-10 days

0

3

RedMax 387313170

PLATE
(Superseded to 515225301)

$3.49

$

Usually ships in 3-10 days

0

4

RedMax 387313210

END, CABLE
(Superseded to 515225501)

$13.99

$

Usually ships in 3-10 days

0

5

RedMax 387313130

SWITCH
(Superseded to 521288201)

$

$

Not available

6

RedMax 387313220

3873-13221
(Superseded to 521289001)

$5.99

$

Usually ships in 3-10 days

0

7

RedMax 387313230

RING, SNAP
(Superseded to 521289101)

$3.99

$

In Stock, Qty 10

0

$5.89

$

Usually ships in 3-10 days

0

9

RedMax 387313150

SPRING
(Superseded to 521288401)

$

$

Not available

10

RedMax 387313160

CAP, PIN
(Superseded to 515225201)

$

$

Not available

11

RedMax 387313240

SCREW, M4 X 16
(Superseded to 515225901)

$3.49

$

In Stock, only 2 left!

0

12

RedMax 387313250

SCREW, M4 x 30
(Superseded to 515226001)

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 028010403

NUT, M6 X 4
(Superseded to 510485801)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 022550650

BOLT, M6 X 50
(Superseded to 510457901)

$

$

Not available

15

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

16

RedMax 022550640

BOLT, M6 X 40
(Superseded to 510457801)

$3.49

$

Usually ships in 3-10 days

0

17

RedMax 388411410

DRUM, CLUTCH
(Superseded to 521296801)

$43.99

$

Usually ships in 3-10 days

0

18

RedMax 387311111

CASE, MIDDLE (RPLS -11110)
(Superseded to 521286101)

$

$

Not available

19

RedMax 022550635

0225-30635
(Superseded to 022530635)

$

$

Not available

20

RedMax 387312102

HANDLE (RPLS -12101)
(Superseded to 521288001)

$

$

Not available

21

RedMax 022510614

BOLT, M6 X 14
(Superseded to 510454301)

$

$

Not available

22

RedMax 388011140

NUT
(Superseded to 521290901)

$3.49

$

Usually ships in 3-10 days

0

23

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

24

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

25B

RedMax 392911611

3929-11612
(Superseded to 574083301)

$

$

Not available

26

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

27

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

28

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

29

RedMax 388411420

PINION
(Superseded to 515236201)

$

$

Not available

30

RedMax 683011400

GEAR COMPLETE
(Superseded to 515708101)

$

$

Not available

31

RedMax 387311500

ROD
(Superseded to 515223901)

$72.99

$

Usually ships in 3-10 days

0

32B

RedMax 392911720

BLADE, UPPER DOUBLE 30
(Superseded to 515294101)

$194.99

$

Usually ships in 3-10 days

0

33

RedMax 0600100608

BEARING
(Superseded to 516129601)

$

$

Not available

34

RedMax 026000305

SCREW, M3 x 5
(Superseded to 516093501)

$

$

Not available

35

RedMax 388011340

PLATE
(Superseded to 521291301)

$

$

Not available

36

RedMax 387311320

FELT
(Superseded to 521286401)

$14.99

$

Usually ships in 3-10 days

0

37B

RedMax 392911730

BLADE, LOWER DOUBLE 30
(Superseded to 515294201)

$170.99

$

Usually ships in 3-10 days

0

38

RedMax 387311210

CASE, LOWER
(Superseded to 515223301)

$43.99

$

Usually ships in 3-10 days

0

39

RedMax 022510516

BOLT, M5 x 16
(Superseded to 516088601)

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 022510520

BOLT, M5 X 20
(Superseded to 510454001)

$

$

Not available

41

RedMax 387311760

3880-11780
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

42

RedMax 387311750

3884-11750
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

43

RedMax 387611670

PLATE (RPLS 3880-11130)
(Superseded to 515227201)

$11.99

$

Usually ships in 3-10 days

0

44

RedMax 0406402512

RING, SNAP, M25 X 1.2
(Superseded to 516124701)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 111191003

TOOL SET

$12.58

$

Usually ships in 3-10 days

0

46

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

47

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

48

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

49B

RedMax 683991140

COVER, BLADE (30

$

$

Not available

201

$98.66

$

Usually ships in 3-10 days

0

202

RedMax 388095010

WRENCH (TOOL)

$97.99

$

Usually ships in 3-10 days

0
