CHT 2250 - RedMax Hedge Trimmer (SN: 90100101 & Above) (2009-01) 002 - CUTTER GROUP Parts Diagram

Hedge Trimmer

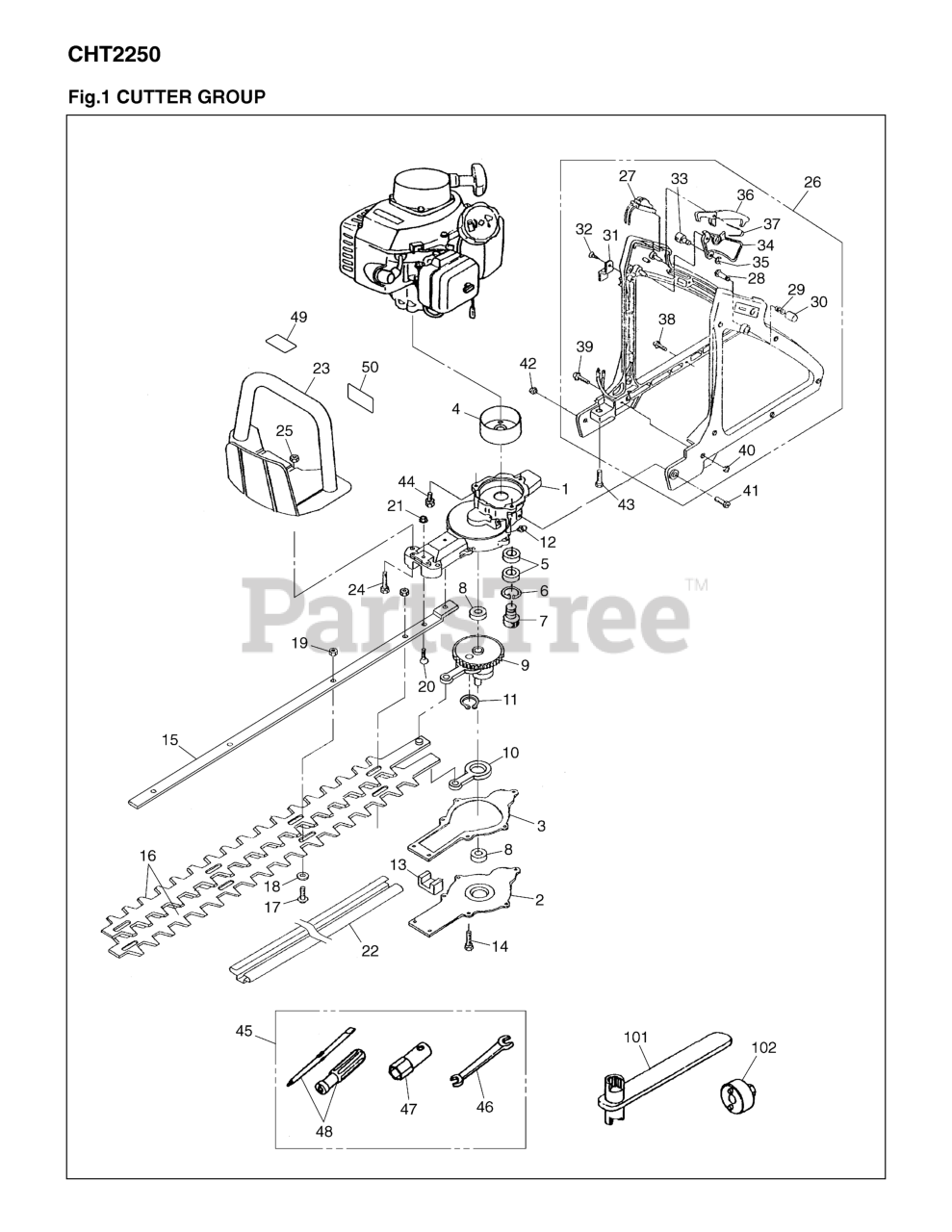

002 - CUTTER GROUP Parts Diagram

  • Title

1

RedMax T400231110

GEARCASE
(Superseded to 521829101)

$62.99

$

Usually ships in 3-10 days

0

2

RedMax T400231210

COVER
(Superseded to 521829201)

$9.49

$

Usually ships in 3-10 days

0

3

RedMax T400231220

GASKET
(Superseded to 521829301)

$4.99

$

In Stock, only 3 left!

0

4

RedMax 388411410

DRUM, CLUTCH
(Superseded to 521296801)

$43.99

$

Usually ships in 3-10 days

0

5

RedMax 0600406001

BEARING
(Superseded to 506610101)

$11.99

$

Usually ships in 3-10 days

0

6

RedMax T400131320

RING, SNAP
(Superseded to 521827401)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax T400131330

PINION
(Superseded to 521827501)

$34.99

$

Usually ships in 3-10 days

0

8

RedMax T400131340

06002-00608
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

9

RedMax T400131350

GEAR COMPL
(Superseded to 521827701)

$182.99

$

Usually ships in 3-10 days

0

10

RedMax T400131510

ROD
(Superseded to 521828001)

$22.99

$

Usually ships in 3-10 days

0

11

RedMax 0406402512

RING, SNAP, M25 X 1.2
(Superseded to 516124701)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

13

RedMax T400131360

FELT
(Superseded to 521827801)

$5.99

$

In Stock, Qty 5

0

14

RedMax T400131370

BOLT
(Superseded to 521827901)

$4.99

$

In Stock, Qty 20+

0

15

RedMax T400232110

PLATE, GUIDE
(Superseded to 521829401)

$68.99

$

Usually ships in 3-10 days

0

16

RedMax T400232210

BLADE
(Superseded to 521829501)

$121.99

$

Usually ships in 3-10 days

0

17

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

18

RedMax 388011780

WASHER
(Superseded to 515232001)

$4.99

$

In Stock, only 3 left!

0

19

RedMax 388011790

NUT
(Superseded to 515232101)

$4.99

$

In Stock, only 3 left!

0

20

RedMax T400132310

SCREW
(Superseded to 521828401)

$4.99

$

In Stock, Qty 9

0

21

RedMax T400132320

NUT
(Superseded to 521828501)

$4.99

$

In Stock, Qty 10

0

22

RedMax T400232910

COVER, BLADE
(Superseded to 521829601)

$31.99

$

In Stock, only 1 left!

0

23

RedMax T400233110

HANDLE, FRONT
(Superseded to 521829701)

$68.99

$

Usually ships in 3-10 days

0

24

RedMax 022510635

BOLT
(Superseded to 574354901)

$3.99

$

In Stock, only 3 left!

0

25

RedMax 028010605

NUT M6
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

26

RedMax 684513100

HANDLE, REAR ASSY (RPL 3873-)
(Superseded to 515713401)

$79.99

$

Usually ships in 3-10 days

0

27

RedMax 684513130

SWITCH
(Superseded to 515713501)

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 387313140

PIN

$5.89

$

Usually ships in 3-10 days

0

29

RedMax 387313150

SPRING
(Superseded to 521288401)

$

$

Not available

30

RedMax 387313160

CAP, PIN
(Superseded to 515225201)

$

$

Not available

31

RedMax 387313170

PLATE
(Superseded to 515225301)

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 387313180

SCREW, M4 x 10
(Superseded to 515225401)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 387313210

END, CABLE
(Superseded to 515225501)

$13.99

$

Usually ships in 3-10 days

0

34

RedMax 387313221

LEVER, THROTTLE (RPLS -13220)
(Superseded to 521289001)

$5.99

$

Usually ships in 3-10 days

0

35

RedMax 387313230

RING, SNAP
(Superseded to 521289101)

$3.99

$

In Stock, Qty 10

0

36

RedMax 684513310

STOPPER

$5.08

$

Usually ships in 3-10 days

0

37

RedMax 684513320

SPRING (REPLACES -13321)
(Superseded to 515713701)

$

$

Not available

38

RedMax 387313240

SCREW, M4 X 16
(Superseded to 515225901)

$3.49

$

In Stock, only 2 left!

0

39

RedMax 387313250

SCREW, M4 x 30
(Superseded to 515226001)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 028010403

NUT, M6 X 4
(Superseded to 510485801)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 022550650

BOLT, M6 X 50
(Superseded to 510457901)

$

$

Not available

42

RedMax 028010605

NUT M6
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

43

RedMax 022550640

BOLT, M6 X 40
(Superseded to 510457801)

$3.49

$

Usually ships in 3-10 days

0

44

RedMax 022510614

BOLT, M6 X 14
(Superseded to 510454301)

$

$

Not available

45

RedMax 111191003

TOOL SET

$12.58

$

Usually ships in 3-10 days

0

46

RedMax 354091120

SPANNER
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

47

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

48

RedMax 103091340

DRIVER
(Superseded to 516153801)

$

$

Not available

49

RedMax T400139120

LABEL
(Superseded to 512639601)

$

$

Not available

50

RedMax 848D1490G0

LABEL

$

$

Not available
