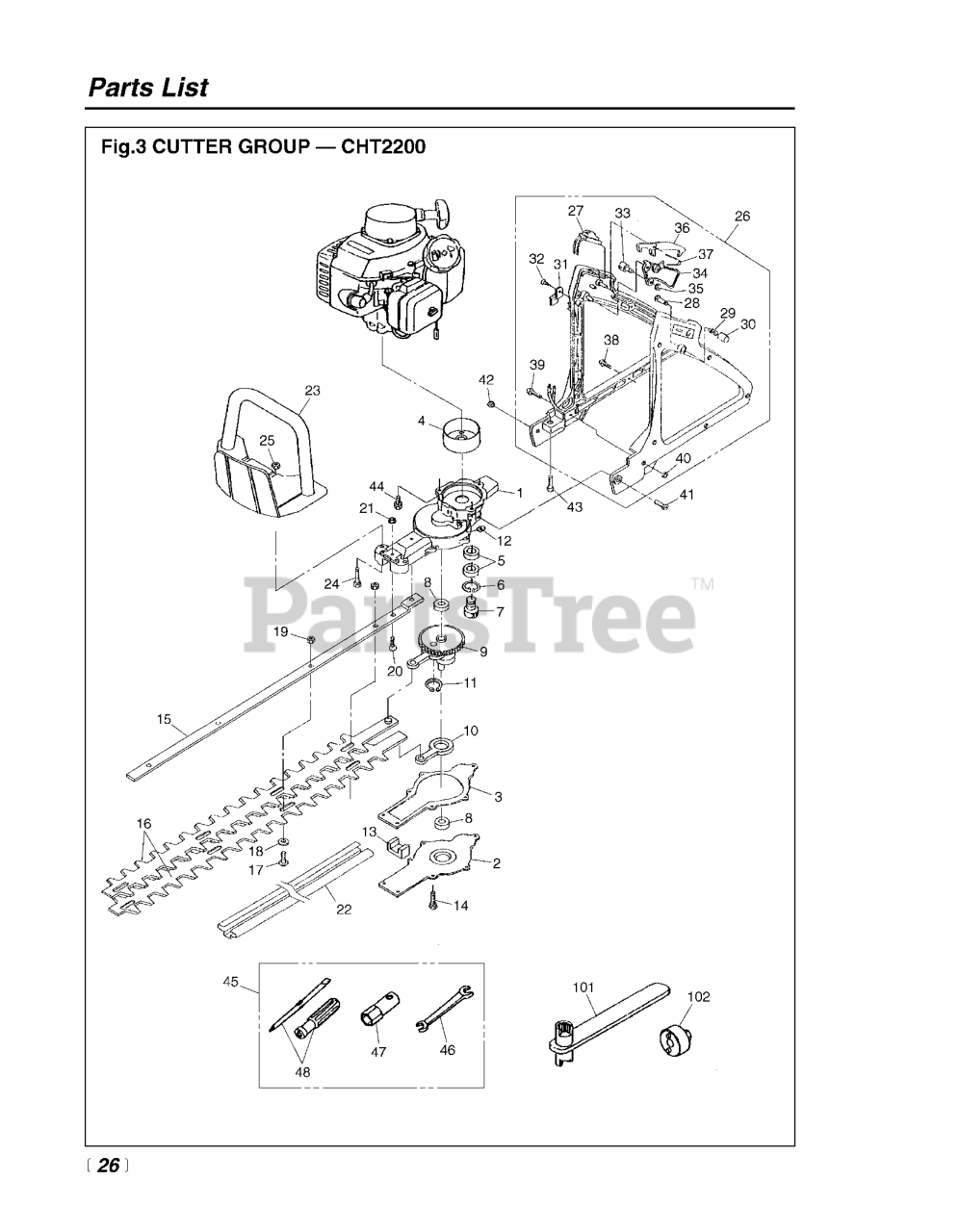

CHT 2200 - RedMax Hedge Trimmer (SN: 00902896 - 50099999) DRIVE Parts Diagram

Hedge Trimmer

DRIVE Parts Diagram

  • Title

1

RedMax 521829101

GEARCASE

$62.99

$

Usually ships in 3-10 days

0

2

RedMax 521829201

COVER

$9.49

$

Usually ships in 3-10 days

0

3

RedMax 521829301

GASKET

$4.99

$

In Stock, only 3 left!

0

4

RedMax 515236101

DRUM

$43.99

$

Usually ships in 3-10 days

0

5

RedMax 506610101

BEARING

$11.99

$

Usually ships in 3-10 days

0

6

RedMax 521827401

RING, SNAP

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 521827501

PINION

$34.99

$

Usually ships in 3-10 days

0

8

RedMax 521827601

BEARING
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

9

RedMax 521827701

GEAR COMPL

$182.99

$

Usually ships in 3-10 days

0

10

RedMax 521828001

ROD

$22.99

$

Usually ships in 3-10 days

0

11

RedMax 516124701

RING, SNAP, M25 x 1.2

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

13

RedMax 521827801

FELT

$5.99

$

In Stock, Qty 5

0

14

RedMax 521827901

BOLT (RPLS 020510512)

$4.99

$

In Stock, Qty 20+

0

15

RedMax 521829401

PLATE, GUIDE

$68.99

$

Usually ships in 3-10 days

0

16

RedMax 521829501

BLADE (22")

$121.99

$

Usually ships in 3-10 days

0

17

RedMax 515236601

SCREW
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

18

RedMax 515232001

WASHER

$4.99

$

In Stock, only 3 left!

0

19

RedMax 515232101

NUT

$4.99

$

In Stock, only 3 left!

0

20

RedMax 521828401

SCREW

$4.99

$

In Stock, Qty 9

0

21

RedMax 521828501

NUT

$4.99

$

In Stock, Qty 10

0

22

RedMax 521829601

COVER, BLADE

$31.99

$

In Stock, only 1 left!

0

23

RedMax 521829701

HANDLE, FRONT

$68.99

$

Usually ships in 3-10 days

0

24

RedMax 510456701

BOLT

$3.49

$

In Stock, Qty 10

0

25

RedMax 510486101

NUT

$3.49

$

In Stock, Qty 5

0

26

RedMax 515713401

HANDLE.REAR-A

Note: . 27 28 29-40

$79.99

$

Usually ships in 3-10 days

0

27

RedMax 515713501

SWITCH-A

$22.99

$

Usually ships in 3-10 days

0

28

RedMax 515224901

PIN

$

$

Not available

29

RedMax 515225101

SPRING

$

$

Not available

30

RedMax 515225201

CAP

$

$

Not available

31

RedMax 515225301

PLATE

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 515225401

SCREW

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 515225501

WIRE END

$13.99

$

Usually ships in 3-10 days

0

34

RedMax 515225701

LEVER

$5.99

$

Usually ships in 3-10 days

0

35

RedMax 515225801

RING

$3.99

$

In Stock, Qty 10

0

36

RedMax 515713601

STOPPER

$5.99

$

In Stock, only 1 left!

0

37

RedMax 515713701

SPRING

$

$

Not available

38

RedMax 515225901

SCREW

$3.49

$

In Stock, only 2 left!

0

39

RedMax 515226001

SCREW

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 510485801

NUT

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 510457901

BOLT

$

$

Not available

42

RedMax 510486101

NUT

$3.49

$

In Stock, Qty 5

0

43

RedMax 510457801

BOLT

$3.49

$

Usually ships in 3-10 days

0

44

RedMax 510454301

BOLT

$

$

Not available

45

RedMax 513181901

TOOL SET

Note: . 46 47 48

$

$

Not available

46

RedMax 506615001

SPANNER

$4.99

$

In Stock, Qty 10

0

47

RedMax 513181801

SOCKET

$

$

Not available

48

RedMax 506689501

DRIVER

$4.99

$

Usually ships in 3-10 days

0

101

RedMax 515234901

WRENCH(B)

$

$

Not available

102

RedMax 515234801

WRENCH

$

$

Not available
