Chipper - BCS America Engine-Driven Chipper Shredder Generation I 8HP Bio 100 Square Hopper Parts Diagram

Engine-Driven Chipper Shredder

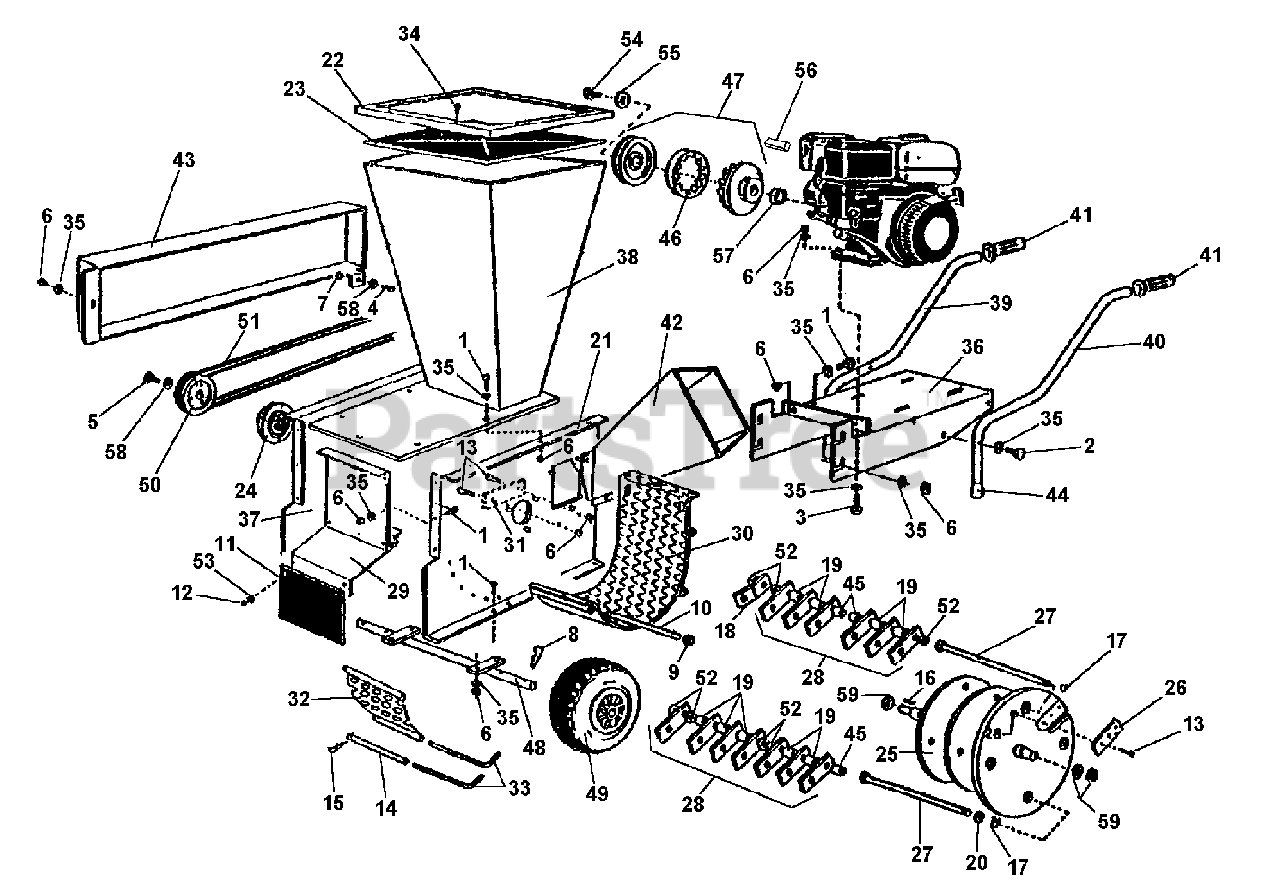

Generation I 8HP Bio 100 Square Hopper Parts Diagram

  • Title

1

BCS America 31112150

SCREW, M8x20

$1.49

$

In Stock, only 4 left!

0

2

BCS America 311.12154

SCREW, M8x40

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12161

SCREW, M8x50

$

$

Currently unavailable

4

BCS America 311.12211

SCREW, M10x30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 311.12219

SCREW M10X25

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 31241080

Nut, Self Locking, M8

$0.99

$

In Stock, Qty 11

0

7

BCS America 31241100

NUT, SELF LOCKING, M10

$1.49

$

In Stock, only 2 left!

0

8

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

9

BCS America 581.27427

Nut, M12

$

$

Currently unavailable

10

BCS America 581.27428

Rod

$

$

Currently unavailable

11

BCS America 581.27431

Shield

$

$

Currently unavailable

12

BCS America 581.27432

Rivet, 4.9x16

$

$

Currently unavailable

13

BCS America 581.27433

Counter Sunk Bolt, M8x25

$

$

Currently unavailable

14

BCS America 581.27436

Sleeve

$

$

Currently unavailable

15

BCS America 581.27437

Cotter Pin

$

$

Currently unavailable

16

BCS America 581.27438

KEY

$

$

Currently unavailable

17

BCS America 581.27439

Circlip

$

$

Currently unavailable

18

BCS America 581.27440L

Blade

$

$

Currently unavailable

19

BCS America 581.27441

Spacer

$

$

Currently unavailable

20

BCS America 581.27442

Spacer

$

$

Currently unavailable

21

BCS America 581.27453

Right Side Wall

$

$

Currently unavailable

22

BCS America 581.27454

Deflector Support

$

$

Currently unavailable

23

BCS America 581.27455

Hopper Flap

$

$

Currently unavailable

24

BCS America 581.27458

Support & Bearing

$

$

Currently unavailable

25

BCS America 581.27459

Drum

$

$

Currently unavailable

26

BCS America 58127460

Blade

$

$

Not available

27

BCS America 581.27461

Shaft Hammer W/Snap Ring

$

$

Currently unavailable

28

BCS America 581.27462

Knives

$

$

Currently unavailable

29

BCS America 58127470

Deflector, Discharge

$

$

Not available

30

BCS America 581.27471

Panel, Bottom

$

$

Currently unavailable

31

BCS America 581.27474

Blade Stationary

$

$

Currently unavailable

32

BCS America 581.27475

Screen

$

$

Currently unavailable

33

BCS America 581.27476

Rod

$

$

Currently unavailable

34

BCS America 581.27479

SCREW, M6.3x19

$0.99

$

Usually ships in 5-8 days

0

35

BCS America 581.27484

Washer

$

$

Currently unavailable

36

BCS America 58158250

Engine Plate

$

$

Not available

37

BCS America 581.58251

Left Side Wall

$

$

Currently unavailable

38

BCS America 581.58252

Hopper

$

$

Currently unavailable

39

BCS America 581.58253

RIGHT HANDLE STEM

$

$

Currently unavailable

40

BCS America 581.58254

LEFT HANDLE STEM

$

$

Currently unavailable

41

BCS America 581.58255

Handle Knob

$

$

Currently unavailable

42

BCS America 581.58257

Chipper Chute

$

$

Currently unavailable

43

BCS America 581.58259

Belt Crankcase

$

$

Currently unavailable

44

BCS America 581.58261

Rubber Foot

$6.24

$

Usually ships in 5-8 days

0

45

BCS America 581.58262

Spacer

$

$

Currently unavailable

46

BCS America 581.58263

Clutch Lining

$

$

Currently unavailable

47

BCS America 581.58264

Clutch Assembly

$

$

Currently unavailable

48

BCS America 581.58265

Wheel Support

$

$

Currently unavailable

49

BCS America 581.58266

Wheels

$

$

Currently unavailable

50

BCS America 581.58267

Pulley Assemply

$98.99

$

Usually ships in 5-8 days

0

51

BCS America 581.58268

Belt

$

$

Currently unavailable

52

BCS America 581.58269

Washer

$

$

Currently unavailable

53

BCS America 58158270

Washer

$

$

Not available

54

BCS America 581.58271

SCREW

$

$

Currently unavailable

55

BCS America 581.58273

Washer

$

$

Currently unavailable

56

BCS America 581.58274

Key

$

$

Currently unavailable

57

BCS America 581.58275

Spacer

$2.49

$

Usually ships in 5-8 days

0

58

BCS America 581.58276

WASHER

$

$

Currently unavailable

59

BCS America 581.58277

Shim

$

$

Currently unavailable
