CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: D00001 - G08143) Switch Box (CE COMPLIANT) SN: F01168 AND BELOW Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

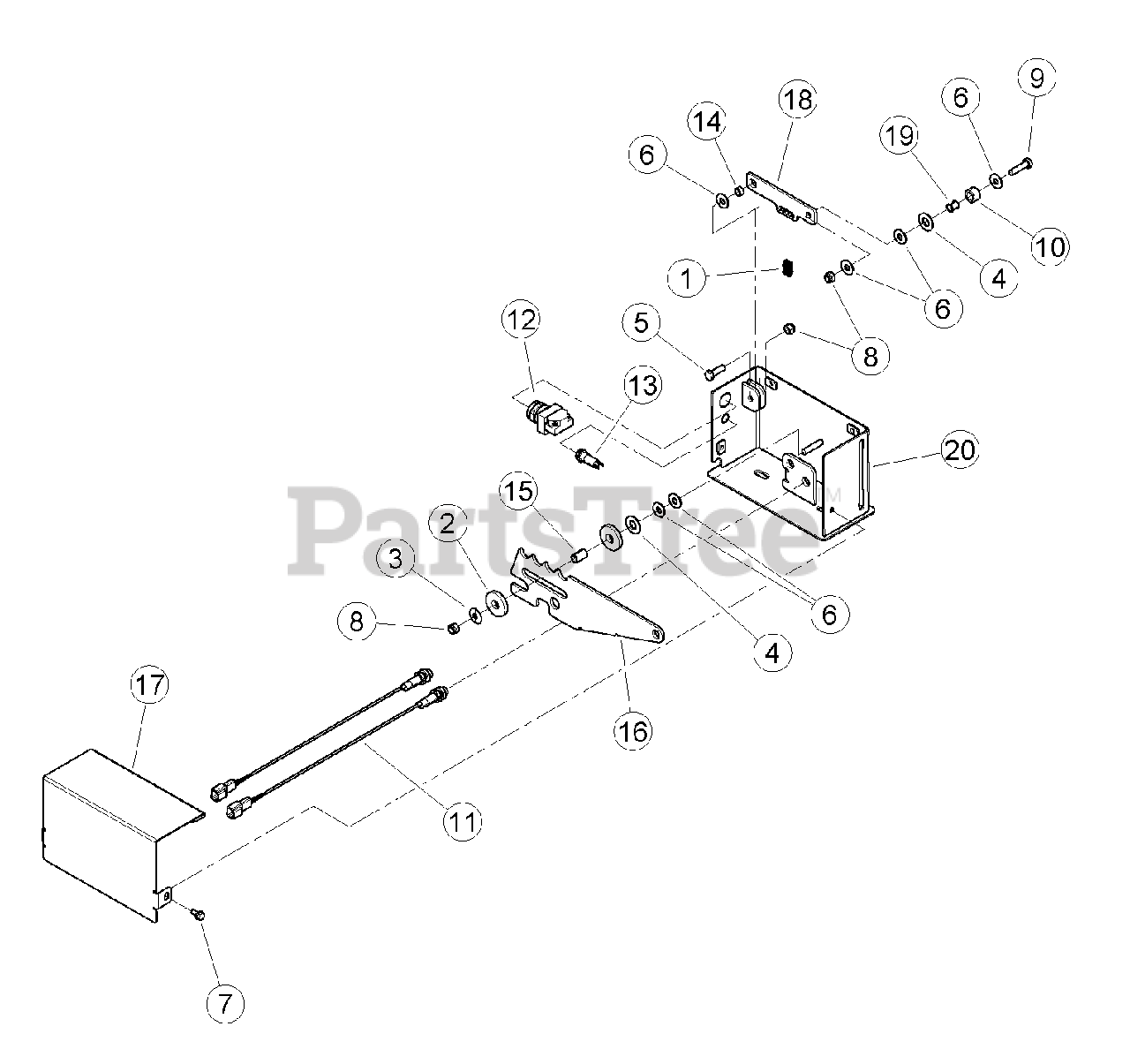

Switch Box (CE COMPLIANT) SN: F01168 AND BELOW Parts Diagram

  • Title
1

Bear Cat 12620

SPRING, CONTROL BAR

$24.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHMW SPACER .515ID X 1.50OD

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12622

WASHER, SPRING

$4.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15097

WASHER, 1/2 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

15344

BOLT, 1/4 X 1/2 SERRATED FLANGE GR5 ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

9

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX GR5 NC ZP

$

$

Not available

10

Bear Cat 18548-00

ROLLER, NYLON .75OD X .502ID X .440

$3.99

$

Usually ships in 3-7 days

0

11

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY

Note: (REPLACEMENT PART)

$181.99

$

In Stock, only 1 left!

0

12

Bear Cat 32376-00

SWITCH, MOMENTARY IP67 NORMALLY OFF

$47.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36356-00

LED, TRI-COLOR 12V 3-TERMINAL BASE

$78.99

$

Usually ships in 3-7 days

0

14

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

15

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

16

Bear Cat 75140-12

BAR, SWITCH CONTROL

$51.99

$

Usually ships in 3-7 days

0

17

COVER, CONTROL BOX

Note: (REPLACED AND SUPERSEDED 75141-12. FOR SERVICE ORDER PN 70006-00)

$

$

Not available

18

Bear Cat 75184-12

LINK, DETENT

$26.99

$

Usually ships in 3-7 days

0

19

Bear Cat 75185-00

SPACER, 1/2 OD X .35 ID X .47

$11.99

$

Usually ships in 3-7 days

0

20

Bear Cat 77129-00

WELDMENT, SWITCH BOX

$301.99

$

Usually ships in 3-7 days

0

Bear Cat 18555-00

DECAL, RESET/OVERRIDE

Note: (NOT SHOWN)

$37.99

$

Usually ships in 3-7 days

0
