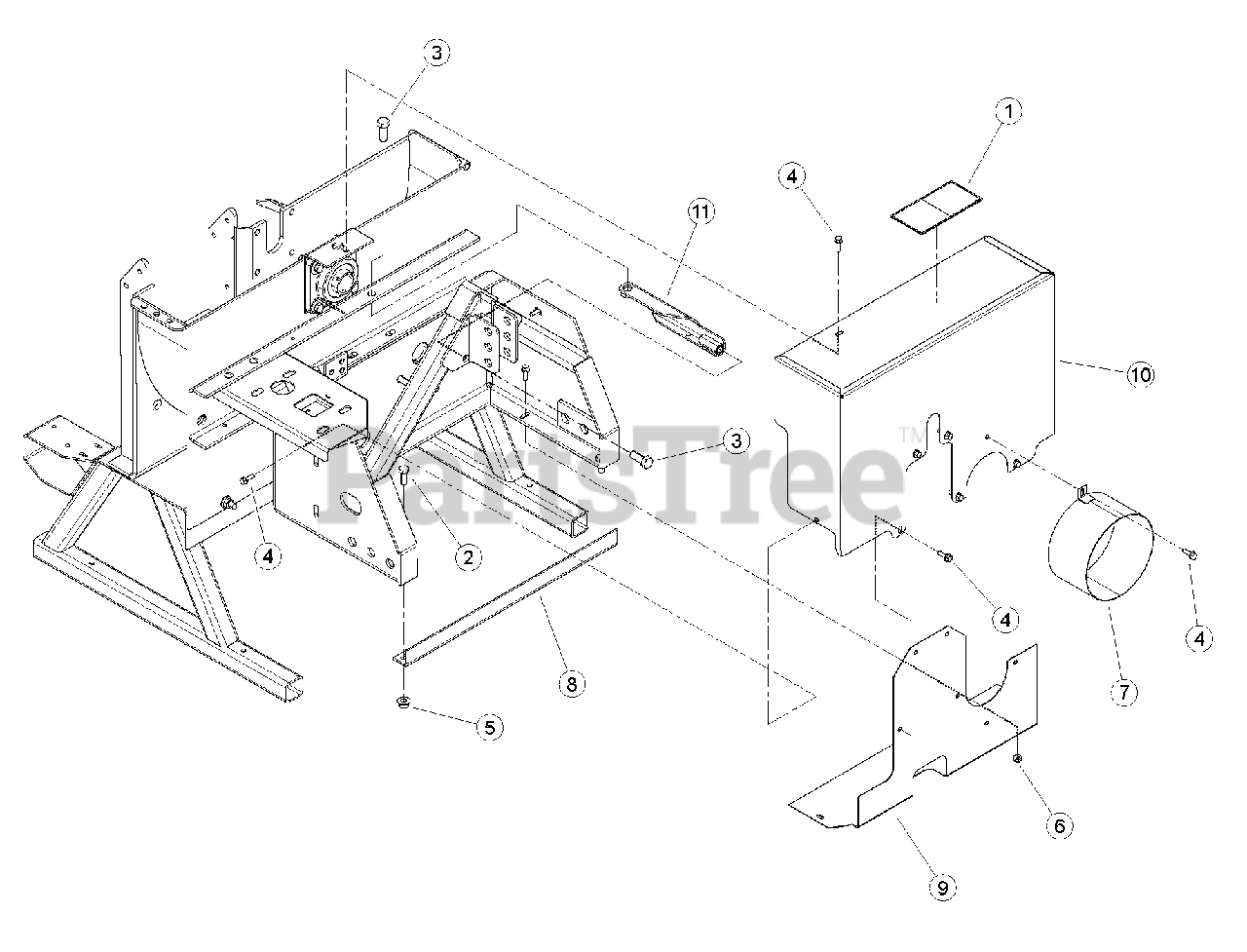

CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: D00001 - G08143) Shields (SN: G03555 - G08143) Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

Shields (SN: G03555 - G08143) Parts Diagram

  • Title
1

Bear Cat 12168

DECAL, PTO DANGER ISO

$9.99

$

Usually ships in 3-7 days

0

2

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

3

15029

BOLT, 5/8 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

7

71798-12

WELDMENT, PTO SHIELD

$

$

Not available

8

Bear Cat 72885-12

BRACE, 3 PT BOTTOM

$

$

Not available

9

Bear Cat 76080-12

WELDMENT, GUARD PTO LOWER BELT

$

$

Not available

10

76082-12

WELDMENT, GUARD PTO UPPER BELT

$

$

Not available

11

Bear Cat 76084-12

WELDMENT, BRACE PTO 3-POINT

$

$

Not available
