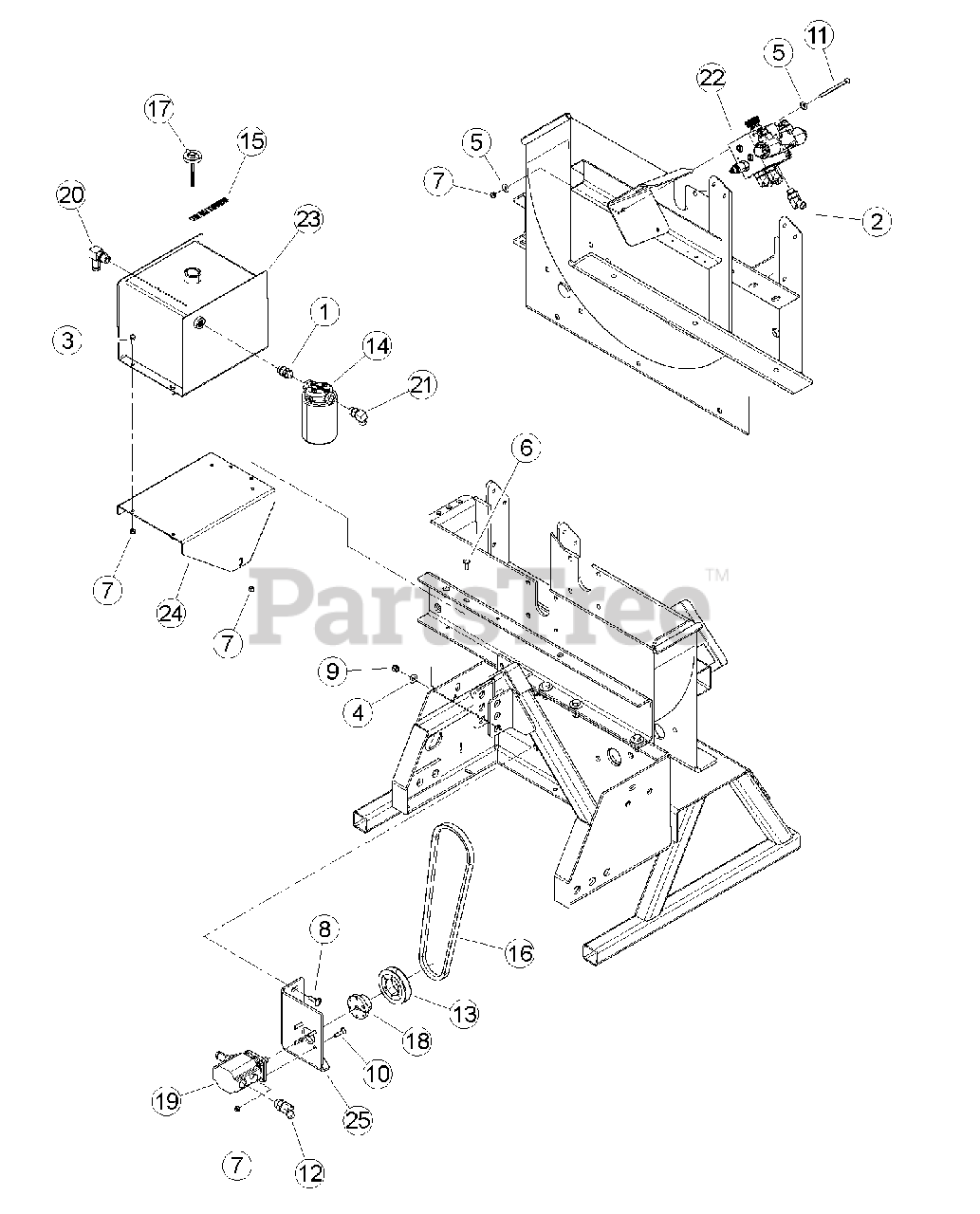

CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: D00001 - G08143) Hydraulic Assembly (SN: G02637 AND BELOW) Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

Hydraulic Assembly (SN: G02637 AND BELOW) Parts Diagram

  • Title
1

12339

ADAPTER, -8 MORING / -8 MORING ADJ

$

$

Not available

2

Bear Cat 14417-00

ADAPTER, -8 MORB / - 8MJIC 45 DEG.

$

$

Not available

3

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX GR5 ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

7

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

8

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

11

Bear Cat 15417

BOLT, 5/16 X 4 HEX GR5 ZP

$

$

Not available

12

16067

ADAPTER, -10 MORING / -8 MJIC 45 DEG.

$

$

Not available

13

Bear Cat 16499

SHEAVE, 1B3.6 SH

$66.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16588

ASSEMBLY, HYDRAUILC FILTER

$112.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0

16

Bear Cat 18277-00

BELT, BX44

$54.99

$

Usually ships in 3-7 days

0

17

Bear Cat 18518-00

CAP, W/DIPSTICK
(Superseded to 71594-00)

$77.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18597-00

BUSHING, SH 1/2

$58.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36017-00

ADAPTER, -10 MORING /.75 90 DEG. HOSE

$40.99

$

Usually ships in 3-7 days

0

21

41287

ADAPTER, -8 MORING / -8 MJIC 90 DEG.

$

$

Not available

22

Bear Cat 71628-00

ASSEMBLY, HYDRAULIC FEED FLOW VALVE

$2142.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75943-12

WELDMENT, TANK HYDRAULIC 3.25 GAL
(Superseded to 77122-00)

$558.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75950-12

SHEET, MOUNT HYDRAULIC TANK

$90.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75962-12

BRACKET, MOUNT HYDRAULIC PUMP

$

$

Not available
