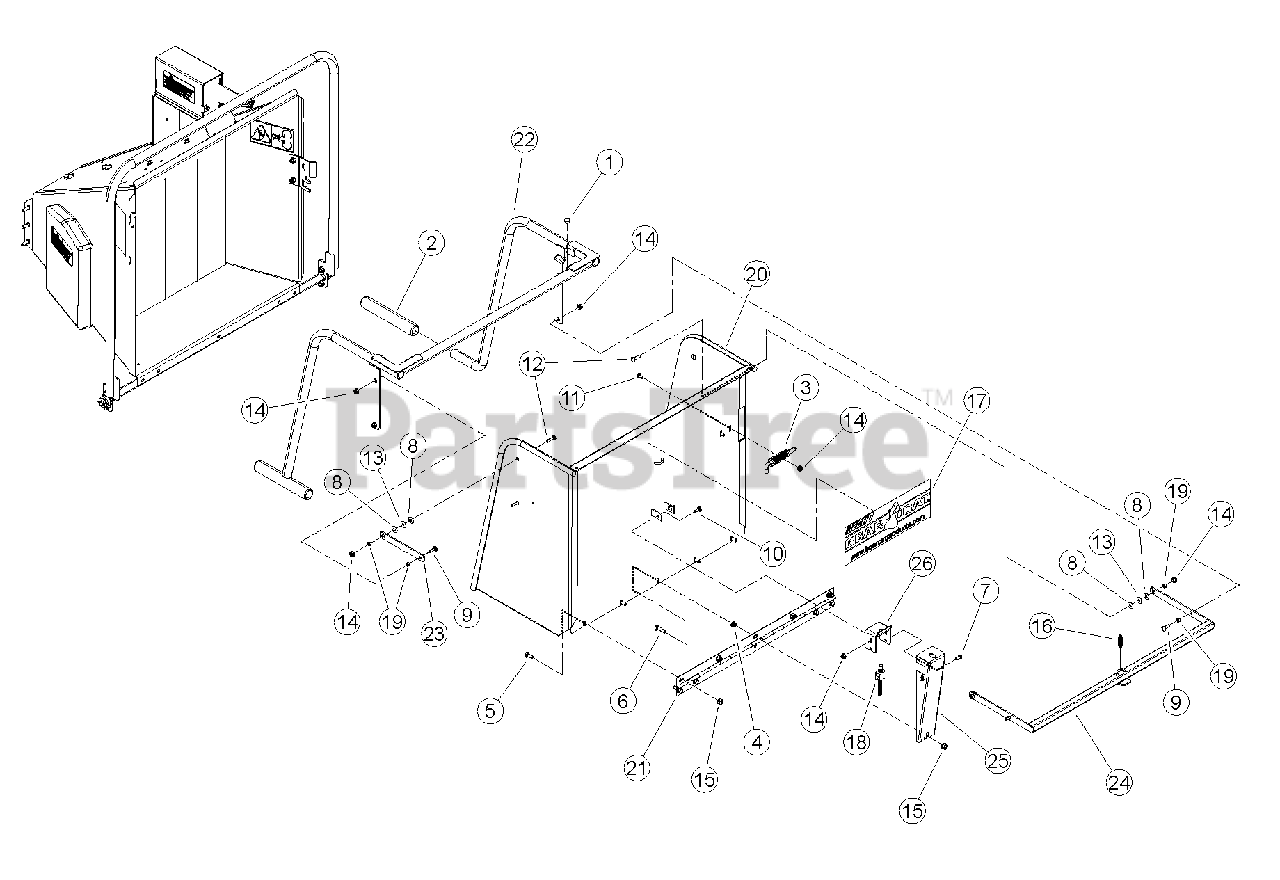

CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: D00001 - G08143) Chute (B) (CE COMPLIANT) (SN: F02051 - G08143) Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

Chute (B) (CE COMPLIANT) (SN: F02051 - G08143) Parts Diagram

  • Title
1

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

4

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

5

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

6

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

7

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

9

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8" GR5 CRG NC ZP

$

$

Not available

11

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

12

Bear Cat 15398

BOLT, 5/16 X 1-1/4" GR5 CRG ZP

$

$

Not available

13

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

14

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16698

SPRING, 1/2 X 2.00 LG,ZP

$21.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

18

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON
(Superseded to 32693-00)

Note: (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$172.99

$

Usually ships in 3-7 days

0

19

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

20

Bear Cat 71054-12

WELDMENT, EXTENSION TRAY

$959.99

$

Usually ships in 3-7 days

0

21

Bear Cat 71492-12

HINGE, EXTENSION TRAY

$

$

Not available

22

Bear Cat 74155-35

WELDMENT, KNEEBAR

$432.99

$

Usually ships in 3-7 days

0

23

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

24

Bear Cat 74161-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

25

Bear Cat 74167-12

SHIELD, KNEEBAR SWITCH

$111.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77532-12

BRACKET, SWITCH

Note: (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$56.99

$

Usually ships in 3-7 days

0

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

Note: (NOT SHOWN)

$2.99

$

Usually ships in 3-7 days

0
