CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: B00001 - C09929) Feed Roller Housing Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

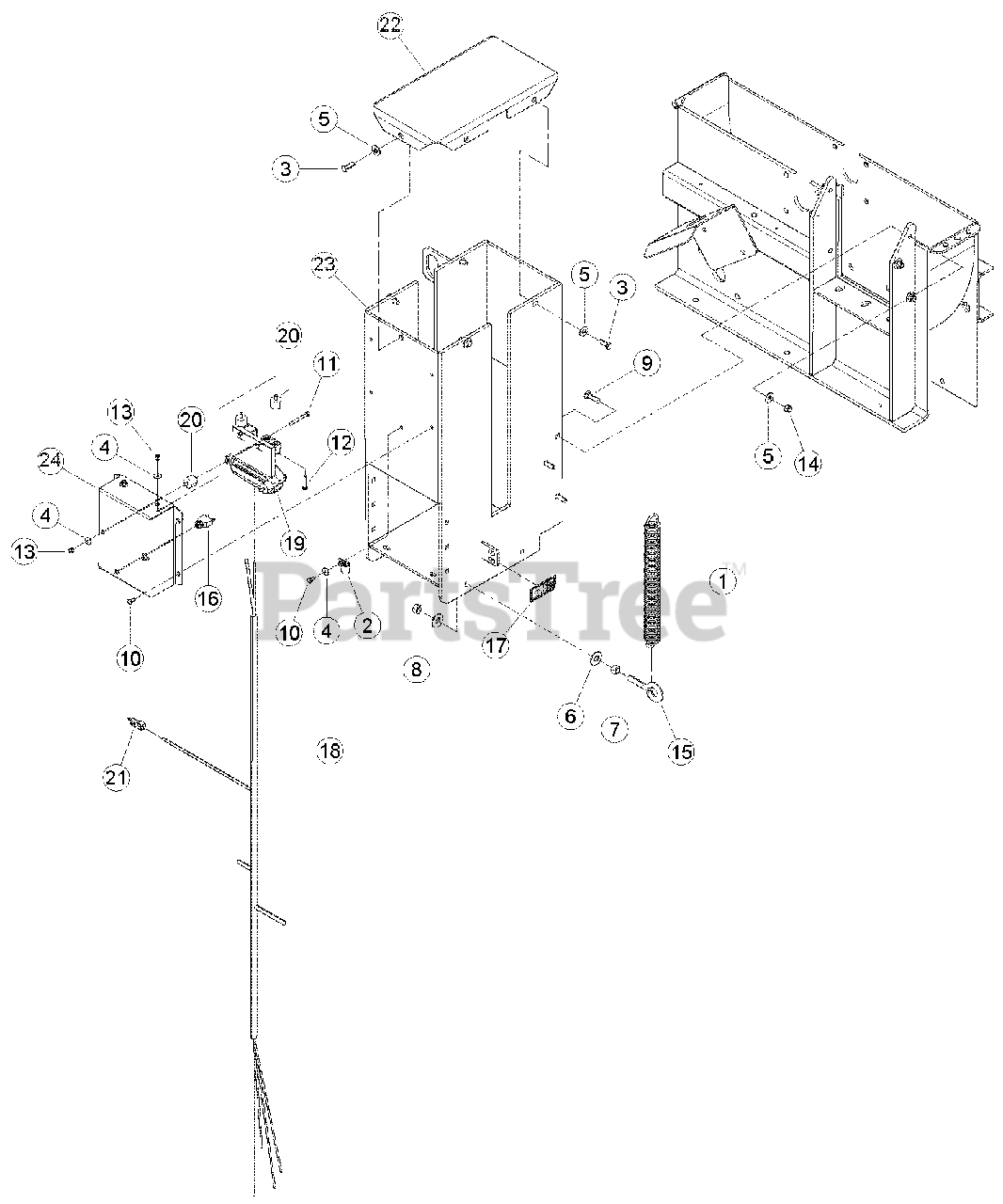

Feed Roller Housing Parts Diagram

  • Title
1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

14048-00

CLAMP, 9/16" COATED

$

$

Not available

3

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

4

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

8

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

9

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15179

BOLT, 1/4 X 1/2 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HEX HD GR5 ZP

$

$

Not available

12

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15502

EYEBOLT, 1/2 X 2 ZP

$31.99

$

Usually ships in 3-7 days

0

16

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

17

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

18

Bear Cat 36252-00

HARNESS, 9IN PTO - PLUS 1
(Superseded to 32106-00)

$876.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

20

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36391-00

PLUG, JUMPER HARNESS

$20.99

$

Usually ships in 3-7 days

0

22

Bear Cat 71334-35

WELDMENT, TOP ROLLER COVER

$131.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73247-35

WELDMENT, ROLLER SUPPORT

$

$

Not available

24

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0
