CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: B00001 - C09929) Feed Chute (NON-CE COMPLIANT) Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

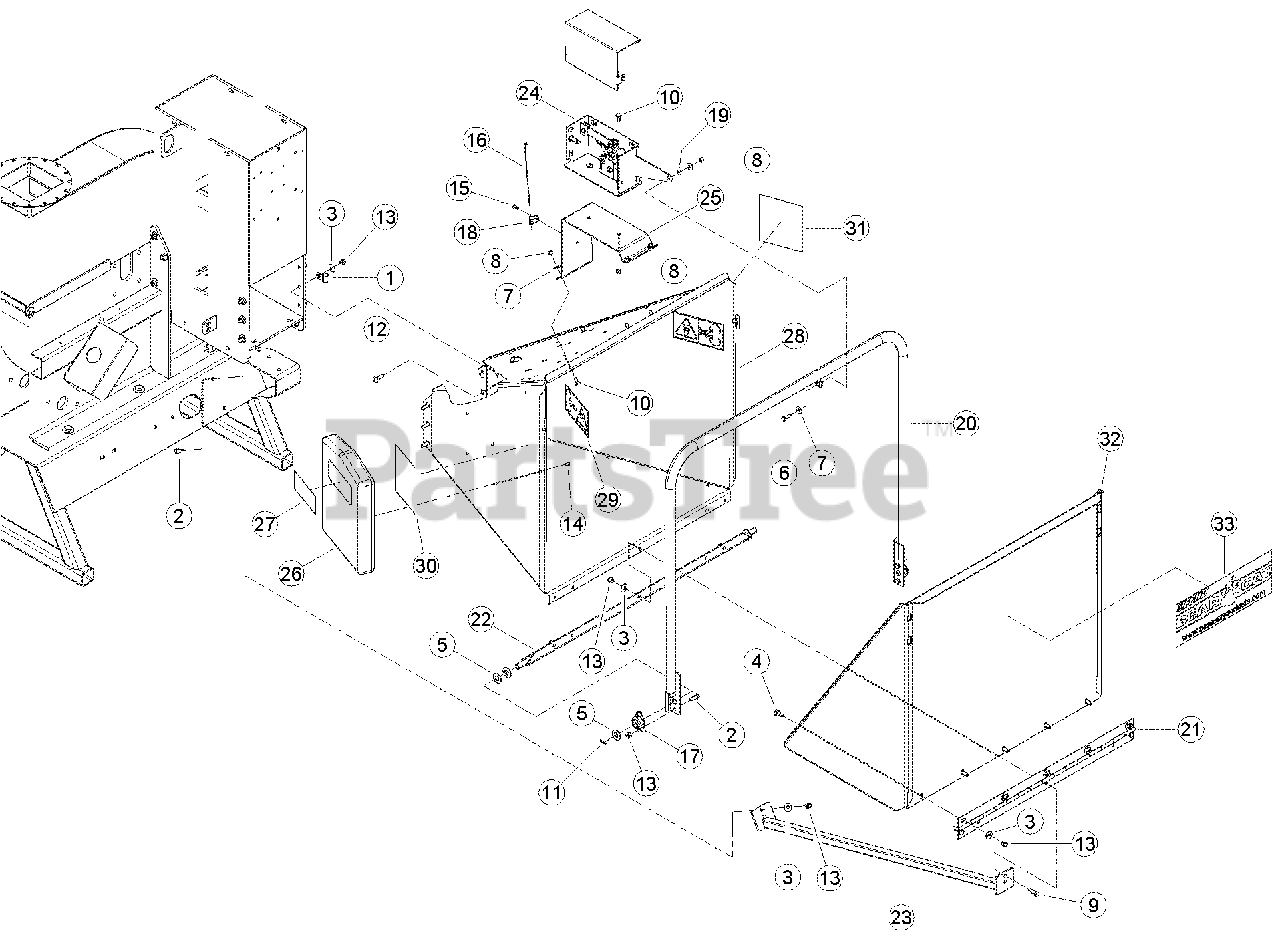

Feed Chute (NON-CE COMPLIANT) Parts Diagram

  • Title
1

14048-00

CLAMP, 9/16" COATED

$

$

Not available

2

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

5

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

6

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

7

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

9

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

12

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

16

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

17

Bear Cat 17897

BEARING, SIDE FLNG MOUNT,5/8"

$34.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

20

Bear Cat 71352

WELDMENT, CONTROL ARM

$

$

Not available

21

Bear Cat 71492-12

HINGE, EXTENSION TRAY

$

$

Not available

22

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

23

Bear Cat 74228-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

24

Bear Cat 75186-00

ASSEMBLY, SWITCH BOX

$469.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75207-12

MOUNT, SWITCH BOX

$75.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER SERVICE PART

Note: (INCLUDES ITEM 27)

$89.99

$

Usually ships in 3-7 days

0

27

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

28

Bear Cat 77126-00

ASSEMBLY, BIG CHIPPER CHUTE SERVICE PART

Note: (INCLUDES ITEMS 29 - 31)

$1036.99

$

Usually ships in 3-7 days

0

29

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

30

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

31

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

32

Bear Cat 77127-00

ASSEMBLY, CHUTE EXTENSION TRAY SERVICE PART

Note: (INCLUDES ITEM 33)

$691.99

$

Usually ships in 3-7 days

0

33

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0
