CHF 9540 H - Bear Cat 9" Chipper, 540cc PTO Hydraulic Feed, Fine Chip (SN: B00001 - C09929) Base Parts Diagram

8" Chipper, 540cc PTO Hydraulic Feed, Fine Chip

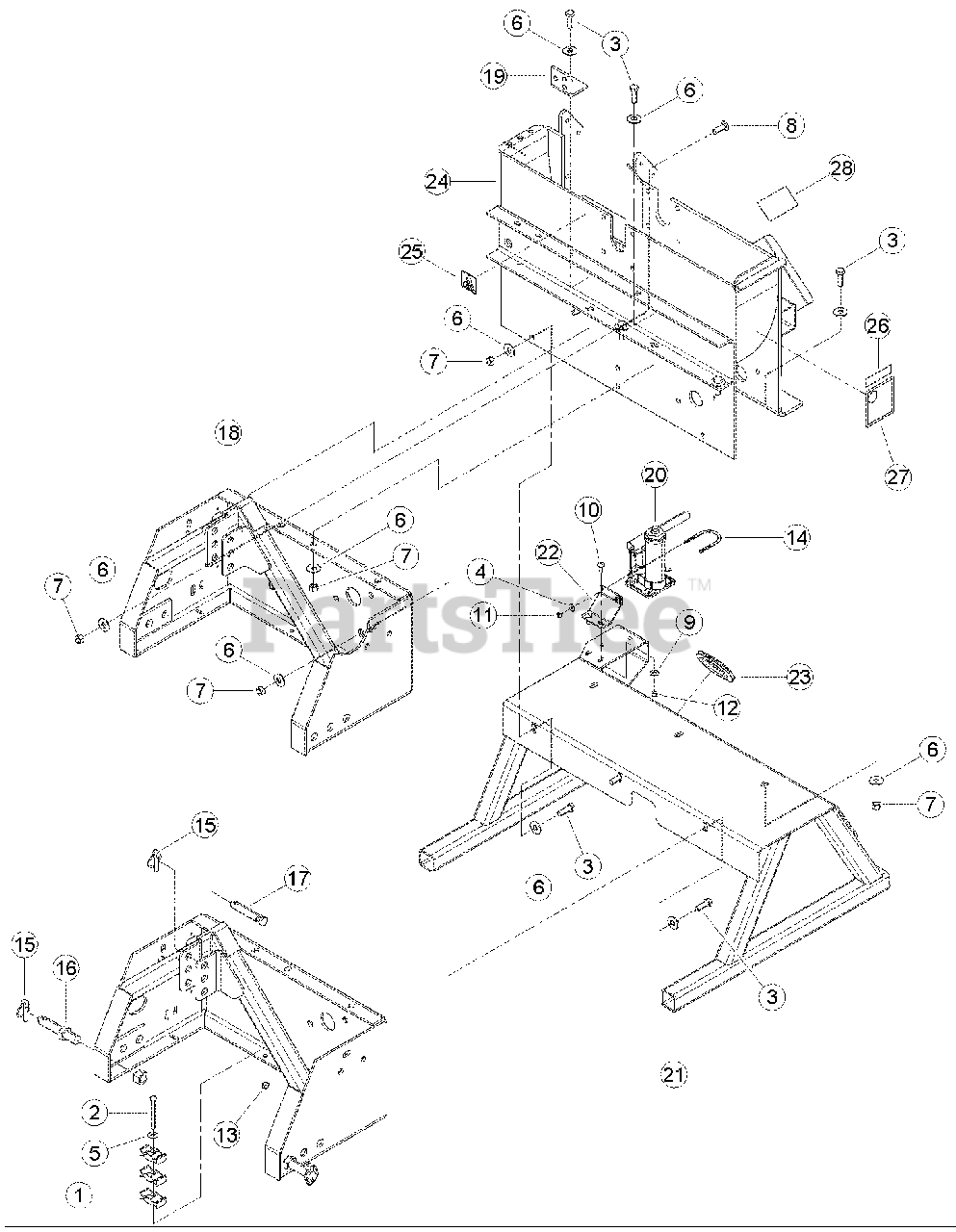

Base Parts Diagram

  • Title
1

14157-00

CLAMP, PLASTIC HOSE

$

$

Not available

2

Bear Cat 15010

BOLT, 3/8 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

4

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

8

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

16

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5 LONG

$24.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2 LONG

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 71289-35

WELDMENT, HITCH SUPPORT

$1080.99

$

Usually ships in 3-7 days

0

19

Bear Cat 71674-12

ANGLE, LOWER SHOCK

$

$

Not available

20

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

21

Bear Cat 74230-12

WELDMENT, PTO STAND

$

$

Not available

22

Bear Cat 74981-12

PLATE, JACK MOUNT

$

$

Not available

23

Bear Cat 75949-00

TRIM, SLOT EDGE COVER

$30.99

$

Usually ships in 3-7 days

0

24

Bear Cat 77141-00

ASSEMBLY, CH9540H BOTTOM HOUSING, SERVICE PART

Note: (INCLUDES ITEMS 25 - 28)

$2276.99

$

Usually ships in 3-7 days

0

25

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

26

Bear Cat 12260

DECAL,CH9540 INFORMATION

$40.99

$

Usually ships in 3-7 days

0

27

Bear Cat 14343-00

DECAL, 112 DB

$12.99

$

Usually ships in 3-7 days

0

28

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0
