CHD R500 E - Poulan Rear-Tine Tiller (2000-02) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

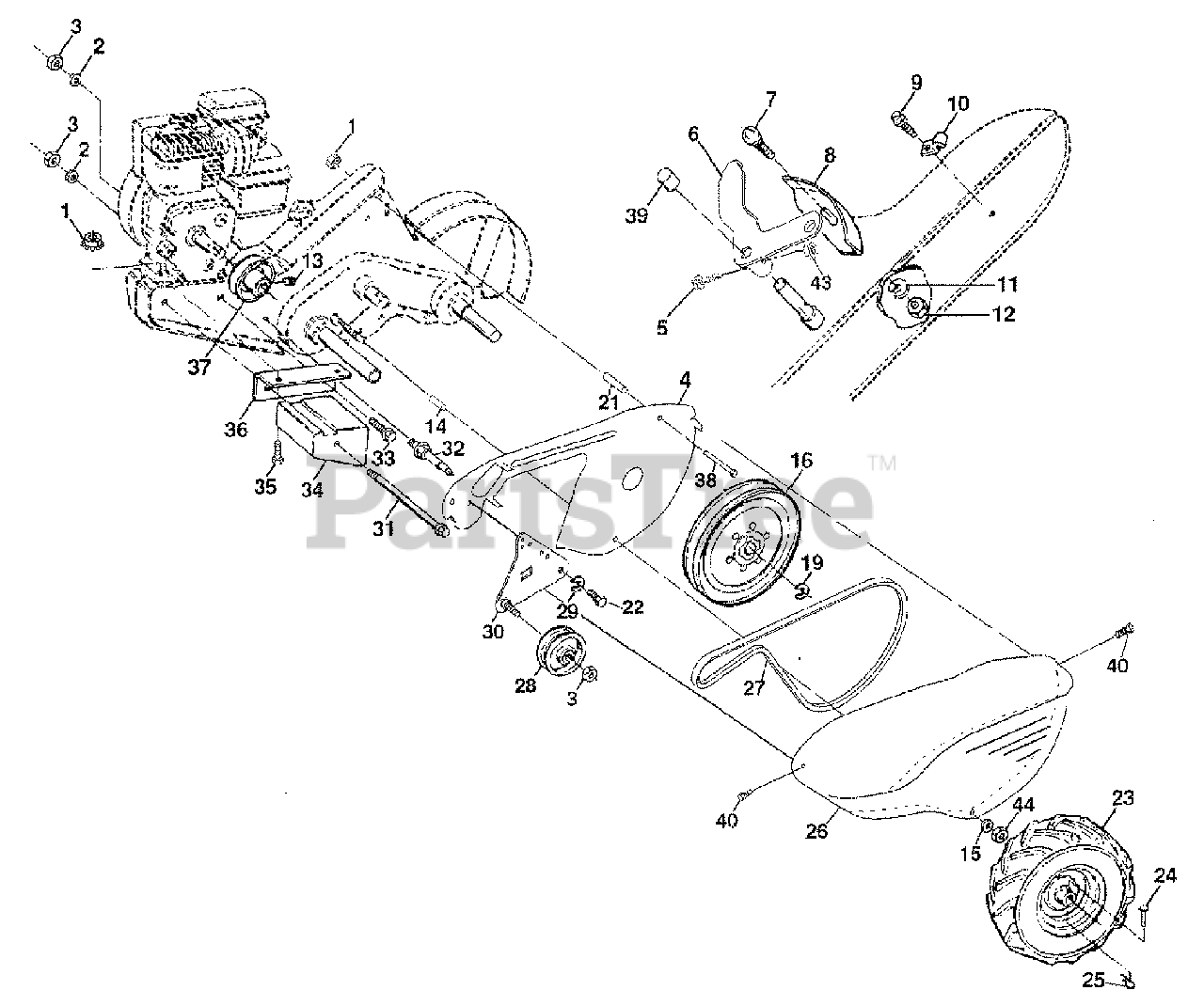

Mainframe, Left Side Parts Diagram

  • Title
1

Electrolux/AYP 73510500

Nut, Keps 5/16-18

$2.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 10040600

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 73220600

Nut, Hex 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 170127

Shield, Inner Belt Guard
(Superseded to 532432508)

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 154734

Screw, Shift Lever

$

$

Not available

6

Electrolux/AYP 110111X

Lever, Shift
(Superseded to 532110111)

$18.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 72110404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5
(Superseded to 872110404)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 8700J

Plate, Shift Indicator
(Superseded to 532008700)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 86777

Screw, Hex, Washer Head, Slotted #10-24x1/2
(Superseded to 532086777)

$

$

Not available

10

Electrolux/AYP 9484R

Clip
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

11

Electrolux/AYP 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 73220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 23230506

Screw, Set, Hex 5/16-18x3/8
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 156117

Spacer, Split 0.327 x 0.42 x 1,220
(Superseded to 532156117)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 19111116

Washer 11/32 x 11/16x16Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 145102

Sheave, Transmission
(Superseded to 532145102)

$68.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

21

Electrolux/AYP 110652X

Spacer, Split 0.327 x 0.42 x 2.09
(Superseded to 532110652)

$5.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 74770508

Bolt, Fin Hex 5/16-24x1/2
(Superseded to 874770508)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 102190X

Tire
(Superseded to 532102190)

$93.99

$

Usually ships in 3-10 days

0

$

$

Not available

23

Electrolux/AYP 795R

Tire Valve

$

$

Not available

24

Electrolux/AYP 126875X

Rivet, Drilled
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 4497H

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 165501X428

Guard, Beit
(Superseded to 583686402)

$40.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 132801

Belt, V
(Superseded to 591372401)

$17.99

$

In Stock, Qty 7

0

28

Electrolux/AYP 104679X

Pulley, Idler
(Superseded to 532104679)

$18.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 12000032

Ring, Klip
(Superseded to 812000032)

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 159229

Bracket, Idler
(Superseded to 532159229)

$

$

Not available

31

Electrolux/AYP 102384X

Bolt, Hex 5/16-16x12
(Superseded to 532102384)

$9.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 102141X

Shaft, Idler Arm
(Superseded to 532102141)

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 74760616

Bolt, Hex 3/8-16x1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 102383X

Counterweight, LH.
(Superseded to 532102383)

$133.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 74760524

Bolt, Hex 5/16-18x1-1/2

$2.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 102331X

Bracket, Reinforcement, L. H.
(Superseded to 532102331)

$13.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

38

Electrolux/AYP 74760544

Bolt, Fin Hex 5/16-18 x 2-3/4
(Superseded to 874760544)

$

$

Not available

39

Electrolux/AYP 140062

Cap, Plunger
(Superseded to 532140062)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 170488

Screw Hex Wsh Sit # 10-24 x .50
(Superseded to 532170488)

$6.49

$

In Stock, only 2 left!

0

43

Electrolux/AYP 69180

Nut, Lock #10-24
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 73800500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
