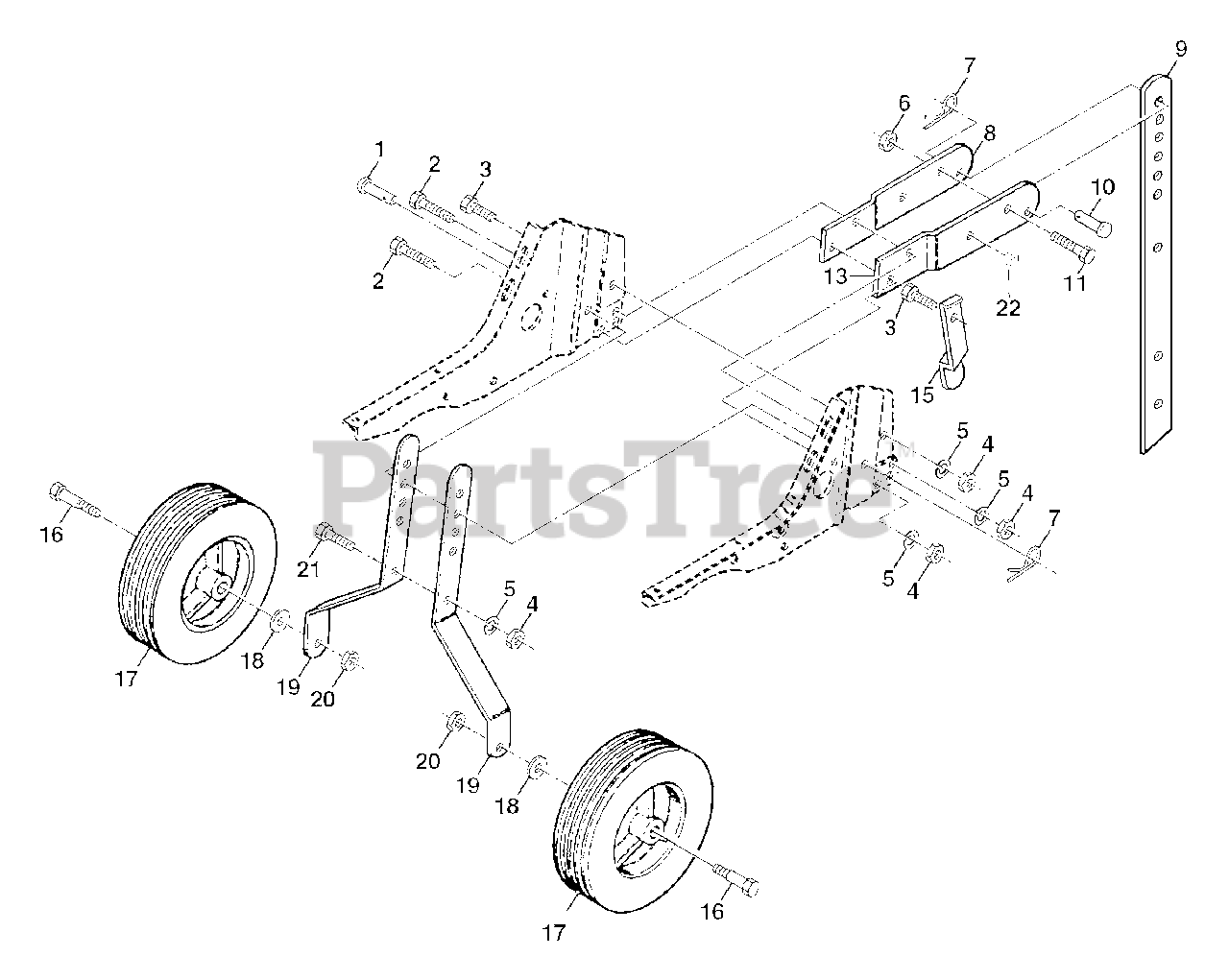

CHD F550 F - Poulan Front-Tine Tiller (2000) Wheel And Depth Stake Assembly Parts Diagram

Front-Tine Tiller

Wheel And Depth Stake Assembly Parts Diagram

  • Title

1

Electrolux/AYP 9194R

Pin, Clevis
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

2

Electrolux/AYP 74760520

Bolt, Hex 5/16-18 x 1-1/4

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 74760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73800600

Locknut, w/washer 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 4921H

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 1952J

Support, Depth Stake, R.H.

$

$

Not available

9

Electrolux/AYP 122233X

Stake, Depth
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 326J

Pin, Clevis

$

$

Not available

11

Electrolux/AYP 74780628

Bolt, Hex, Fin 3/8-16 x 1-3/4
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 1951J

Support, Depth Stake, L.H.

$

$

Not available

15

Electrolux/AYP 5388J

Spring, Stake
(Superseded to 532124724)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121117X

Bolt, Shoulder
(Superseded to 532121117)

$8.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 9188R

Wheel

$

$

Not available

18

Electrolux/AYP 19131311

Washer 13/32 x 13/16 x 11 Ga.
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

19

Electrolux/AYP 9190R

Bracket, Wheel

$

$

Not available

20

Electrolux/AYP 73680600

Locknut, Crown 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760516

Bolt, Hex 5/16-18 x 1

$

$

Not available

22

Electrolux/AYP 73800500

Locknut, w/insert 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
